PRODUCTS
Task-focused LED Lighting for Commercial Applications since 2007
Food Production
1
SOFFITO | SLP
Fully sealed linear LED low/mid bay for food processing, laboratories and cleanrooms. High-density LED arrays provide low glare at high output and uniform appearance at lower power levels. Serviceable from above without breaking the hygiene seal to the production area below.
Hygienic low/mid bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 40W–150W | |
| 6,000lm to 22,500lm | L85> 10 Years 24/7 |
| Up to 150lm/W @CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
40W–150W • 6,000lm - 22,500lm
Ta: -25ºC to +50ºC
Subject to Installation

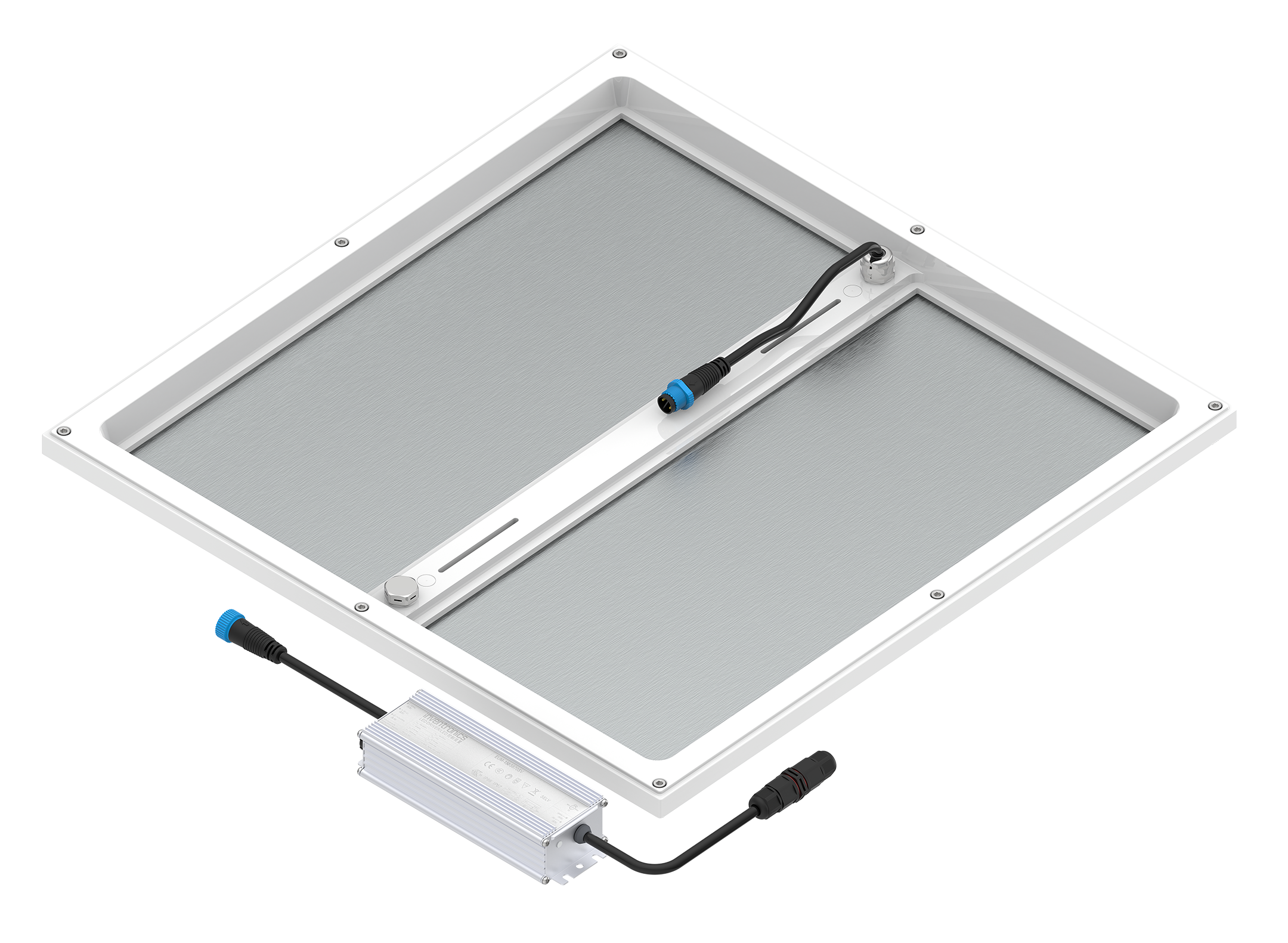

SOFFITO | SLK
Long-term upgrade solution for installed Soffito SLP luminaires. At end of service life, replace the LED, driver and top plate in minutes without breaking the hygiene seal, upgrading the original luminaire to the latest performance with a new warranty on all parts replaced.
Long-term SLP upgrade kit • LED, driver & top plate • Installs in minutes • Hygiene seal remains intact • Compatible with all SLP generations & accessories
| 40W–150W | |
| 6,000lm – 22,500lm | L85> 10 Years 24/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to Original Installation |
40W–150W • 6,000lm - 22,500lm
Ta: -25ºC to +50ºC
Subject to Original Installation
SOFFITO | SFO
Recessed or surface-mount LED high bay for food processing and cleanrooms. Sealed hygienic construction delivers low glare at high lux levels, with multiple installation kits. Fully serviceable without breaking the hygiene seal below.
Hygienic high bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 100W–180W | |
| 15,200 to 27,360lm | L85> 10 Years 24/7 |
| Up to 152lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
100W–180W • 15,200lm - 27,360lm
Ta: -25ºC to +50ºC
Subject to Installation
SOFFITO | SFK
SFK upgrades existing Soffito SFO luminaires reaching end of service life. Replace the LED, driver and top plate in minutes without breaking the hygiene seal. Latest performance • Fully compatible with original parts and accessories • New warranty on all parts replaced.
Long-term SFO upgrade kit • LED, driver & top plate • Installs in minutes • Hygiene seal remains intact • Compatible with all SFO generations & accessories
| 100W–180W | |
| 15,200lm – 27,360lm | L85> 10 Years 24/7 |
| Up to 152lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to Original Installation |
100W–180W • 15,200lm - 27,360lm
Ta: -25ºC to +50ºC
Subject to Original Installation
PROLINE | PCX
Linear low bay in standard luminaire lengths, designed for food production and industrial applications. IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting to virtually any surface.
For high chemical resistance, refer to Proline TPX
Linear low bay • Food • Industrial • IP69K high-pressure hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mount
| 10W–150W | |
| 1,650lm to 23,550lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 23,550lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +50ºC
conditions apply
High Bay and Power Bar Solutions
2
POWERBAY PB | Specifier Series
PowerBay is a highly scalable industrial lighting system built around a common PowerBar architecture. Select from 1–12 PowerBars, with multiple outputs, optics and mounting configurations to suit the application. A range of standard high-bay configurations simplifies specification, with bespoke options for demanding physical, environmental or performance requirements.
For standard range of surface mount options refer to CM Series
Scalable PowerBar system • Demanding industrial applications • Broad power range • Adaptive or fixed optics • Suspension, wall, ceiling, beam or custom mount
| 20W–840W | |
| 3,400lm to 137,750lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
20W–840W • 3,400lm - 137,750lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +70ºC
(conditions apply)
POWERBAY CM | Specifier Series
CMx provides a range of standard surface-mount PowerBay configurations for food processing and industrial applications. Common PowerBar architecture and optics simplify specification, with driver and ambient options for standard, extreme-cold and high-temperature environments.
For full range refer PowerBay Series
Surface-mount PowerBay • Standard to extreme ambient • Food-safe optics • Multiple driver & control options • From blast freezers to milk drying towers
| 64W–350W | |
| 10,500lm to 57,400lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Conditions Apply |
64W–350W • 10,500lm - 57,400lm
Ta: -25ºC to +50ºC
Ta: -30ºC to +70ºC
(conditions apply)

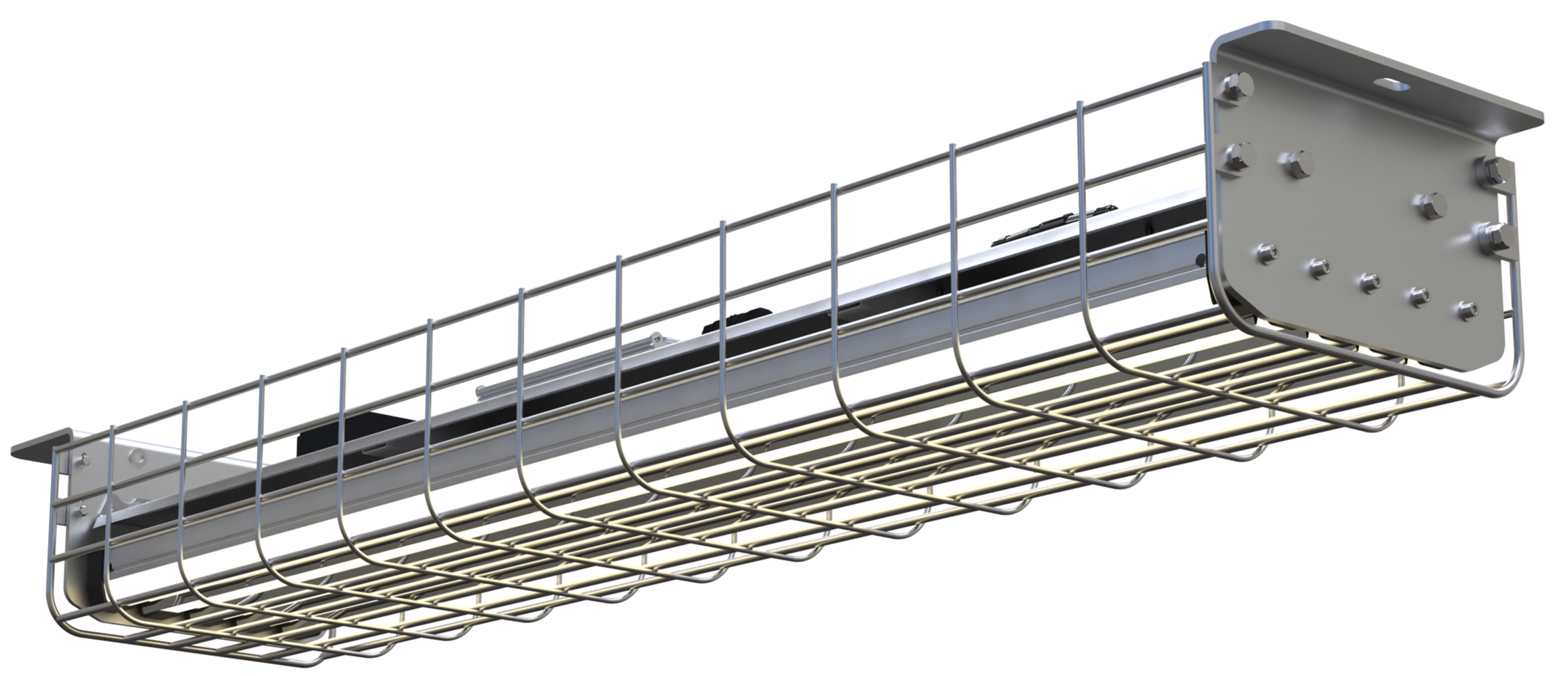

POWERBAY SB | SportsBay Series
SportsBay is a protected PowerBay configuration for indoor sports, mining and other impact-prone environments. Protective cage based on DIN 18032-3 ball-impact requirements • Multiple optics • Surface, suspension, beam or custom mounting • Compatible with all control options.
For standard surface mount options refer to CM Series
Cage-protected high bay • Sports • Mining • Surface, suspension, beam or custom mounting • All control options
| 64W–350W | |
| 10,500lm to 57,400lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Conditions Apply |
64W–350W • 10,500lm - 57,400lm
Ta: -25ºC to +50ºC
Ta: -30ºC to +70ºC
(conditions apply)
Extreme Food Processing and Industrial Environments
3
PROLINE | PV3
Hygienic LED luminaire developed for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Designed for demanding food processing and industrial applications, with IP69K protection for high-pressure hot-water wash-down and four individually configurable DIP LED arrays for 360° or targeted illumination.
For chemical resistance without steam or excessive humidity Proline TPX
Hygienic Steam CIP • Aggressive chemicals • High-temperature food processing • IP69K hot-water wash-down • IK10 • Remote drivers • 360° or targeted illumination
| 20W–60W | |
| 2,760lm to 8,200lm | L85> 10 Years 24/7 |
| Up to 138lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| 500+ Steam CIP Cycles | Special Conditions Apply |
20W–60W • 2,760lm - 8,200lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
PROLINE | TPX
Food-grade linear low bay developed for aggressive cleaning and chemical environments in food processing and industrial applications, without steam or excessive humidity. High resistance to sanitisers and cleaning chemicals • IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting.
Where chemical resistance is not required refer to Proline PCX
Food-grade low bay • Aggressive chemicals & sanitisers • IP69K hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mounting
| 10W–150W | |
| 1,650lm to 24,750lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 24,750lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +50ºC
(special conditions apply)
CRYOLUX | Ultra-thin High Bay
Ultra-low-profile luminaire for freezers, cool stores, logistics and sheltered car-park transition areas, with aisle, open-area or asymmetric optics. Minimal headroom • Retrofit or new build • Covers legacy mounting positions • Remote control gear • Maintains vapour barrier in blast freezers • Reduced fork or vehicle-strike risk.
Ultra-low-profile high bay • Freezers • Cool stores • Logistics • Aisle, open-area or asymmetric optics • Reduced fork-strike risk • Easy maintenance & upgrades
| 60W–180W | |
| 9,000lm – 27,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
60W–180W • 9,000lm - 27,000lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
SABRE | Steam & Chemical High Bay
Hygienic high bay for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Recessed or surface-mounted • Walk-safe options • Custom sizes and configurations • Optional M1 lenses • Austenitic stainless-steel options • Food processing and industrial applications.
Hygienic high bay • Steam CIP • Aggressive chemicals • Hydrolytic & extreme environments • Recessed or surface mount • Custom sizes • Austenitic steel options
| 120W–320W | |
| 20,400lm – 54,400lm | L85> 10 Years 24/7 |
| Up to 170lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
120W–320W • 20,400lm - 54,400lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
High Mast Area and Sports Floodlights
4
VIPER | Forward-Throw Area Floodlight
Modular floodlight for sports, high-mast, security and infrastructure applications where glare and spill-light control are critical. Precision narrow beam and forward-throw asymmetric optics • Low-glare options • Residential boundary control • Salt-spray tested • Multiple lens and control options • Remote driver options.
Meets CASA Guideline 5.1.4 (Zone A)
Modular floodlight • High-mast • Sports • Security • Independently targeted modules • Multiple lens & control options • Remote driver options • CASA Zone A
| 180W–1250W | |
| Module rating subject to duty cycle | |
| 28,000lm – 195,000lm | L85> 10 Years 14/7 |
| Up to 156lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +35ºC | |
| Standard Ambient Range |
180W–1250W • 28,000lm - 195,000lm
Ta: -25ºC to +35ºC
VIXEN | Long-Throw Area Floodlight
Modular high-output floodlight for high-mast, sports, security and infrastructure applications requiring greater power and projection distance. Independently targeted modules • Precision narrow-beam and long-throw optics • Mixed beam combinations • Scalable output • Remote driver options • Salt-spray tested.
Modular floodlight • High-mast • Sports • Security • Independently targeted modules • Multiple lens combinations • Scalable output • Remote driver options.
| 180W–1000W | |
| Module power subject to ambient | |
| 27,000lm – 150,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +35ºC | -40ºC to +70ºC |
| Standard Ambient Range | Conditions Apply |
180W–1000W • 27,000lm - 150,000lm
Ta: -25ºC to +35ºC
Ta: -40ºC to +70ºC
(conditions apply)
Low Ingress Protection
5
AirBay Series | Architectural High Bay
High-output architectural high bay for commercial, retail and light-industrial applications, combining efficiency, uniform illumination and refined aesthetics. Wide distribution eliminates scalloping on graphic panels and perimeter walls • High colour rendering • Anodised finish options • Black or white end caps • Serviceable sliding gear tray • Easy sensor integration • Fine-wire suspension.
High bay • Commercial • Retail • Light industrial • Uniform graphic-panel illumination without scalloping • Multiple control & sensor options
| 120W–160W | |
| 19,800lm – 26,400lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| 0ºC to +50ºC | |
| Standard Ambient Range |
120W–160W • 19,800lm - 26,400lm
Ta: 0ºC to +50ºC
SENTINEL | More Than a Panel Light
Fully serviceable architectural LED luminaire for civic, government and commercial applications, designed around long-term component replacement and upgradeability. Clean architectural format • High-output options for specialist manufacturing and retail • Engineered for exceptional service life and long-term financial return.
Designed for a 25-year duty cycle
Fully serviceable architectural luminaire • Civic • Government • Commercial • Upgradeable components • High output options • Low UGR • 25-year duty cycle
| 40W–200W | |
| 6,080lm to 30,400lm | L85> 10 Years 24/7 |
| Up to 152lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| 0ºC to +40ºC | |
| Power Limited by Size/Ambient |
40W–200W • 6,080lm - 30,400lm
Ta: 0ºC to +40ºC
Specifier Grade Retro-Fit Solutions
6
T5 | LED Tube Series
A range of specifier-grade LED tubes engineered as genuine replacements for T5 fluorescent, with options to match the original luminaire photometry and lux levels. Developed for HE/HO upgrades of EU government buildings • 360° and directional options • Adjustable output • Wired, wireless and BMS control options.
True photometric equivalence in any T5 luminaire
Specifier-grade T5 LED upgrade • HE/HO • Fluorescent-equivalent photometry • 360° option • Wired & wireless controls • Magnetic or T5 pin mounts
| All Standard T5 HE/HO | |
| ≤ 58% Energy Savings | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to Luminaire |
All Standard T5 HE/HO
Ta: -25ºC to +50ºC
Subject to Luminaire
LIGHT PLATE | VB Specifier Series
Purpose-designed LED retrofit for legacy metal-halide pyramidal-lens luminaires, retaining the original enclosure and lens while replacing the conventional light engine. Frame adjusts to fit luminaire • Retains existing infrastructure • High-output LED performance • Avoids complete luminaire replacement.
≥60% Energy Savings
LED upgrade for legacy pyramidal-lens luminaires • Retains original enclosure • Adjustable to multiple openings • Simple retrofit • IP/IK subject to luminaire
| 100W–180W | |
| 17,000lm – 30,600lm | L85> 10 Years 24/7 |
| Up to 170lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | Lumen Output |
| Subject to Installation | Subject to Legacy Lens |
100W–180W • 17,000lm - 30,600lm
Ta: -25ºC to +50ºC
Subject to Installation
Lumen Output Subject to Legacy Lens
LIGHT PLATE CM | Custom Fit Series
Custom LED retrofit system based on Soffito architecture, designed to upgrade legacy recessed T5 or metal-halide luminaires and create custom light engines behind sealed enclosures. Manufactured to suit the original enclosure and lens • Optional fire flashing • Retains existing infrastructure while delivering the reliability, service life and energy savings of LED.
Custom LED upgrade for legacy recessed & sealed luminaires • Retains original enclosure • Manufactured to fit • IP/IK subject to luminaire
| 150W–320W | |
| 25,500lm – 54,400lm | L85> 10 Years 24/7 |
| Up to 170lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | Lumen Output |
| Subject to Installation | Subject to Legacy Lens |
150W–320W • 25,500lm - 54,400lm
Ta: -25ºC to +50ºC
Subject to Installation
Lumen Output Subject to Legacy Lens
