LIGHT PLATE CM
A Custom Fit LED High Performance Upgrade for T5 Enclosures
The Light Plate CM is a retro fit, high performance LED light source and fire flashing. Typically used for recessed and sealed high output T5 enclosures 300/600mm x 1200mm or 300/600 x 1500mm. The Light Plate CM is custom sized at factory to sit in or over the original fitting once the original electrical components are removed, leaving the original flashed frame open at the top with the sealed lens below. Options include structural flange or independent fire flashing, with construction in stainless or PCW steel.
Light Plate CM Luminaire Performance Up To:
48,000lm - 150 lm/W | L90 / 100,000hrs*
A Custom Fit Solution
There are few restrictions to the size of the products we can supply, as standard the design features three LED arrays powered to 185W with the HE variant providing 27,000lm x LLF of the original fixture. Final performance will depend on the condition of the legacy lens and the proximity of the LED light source.
As a SELV LED light source with independent driver, we have considerable freedom to adapt the concept to your needs, subject to both your operational requirements and architectural detail. Provide us with original specifications where possible, or photos and site measurements where not and we will work with you to confirm the final detail*.

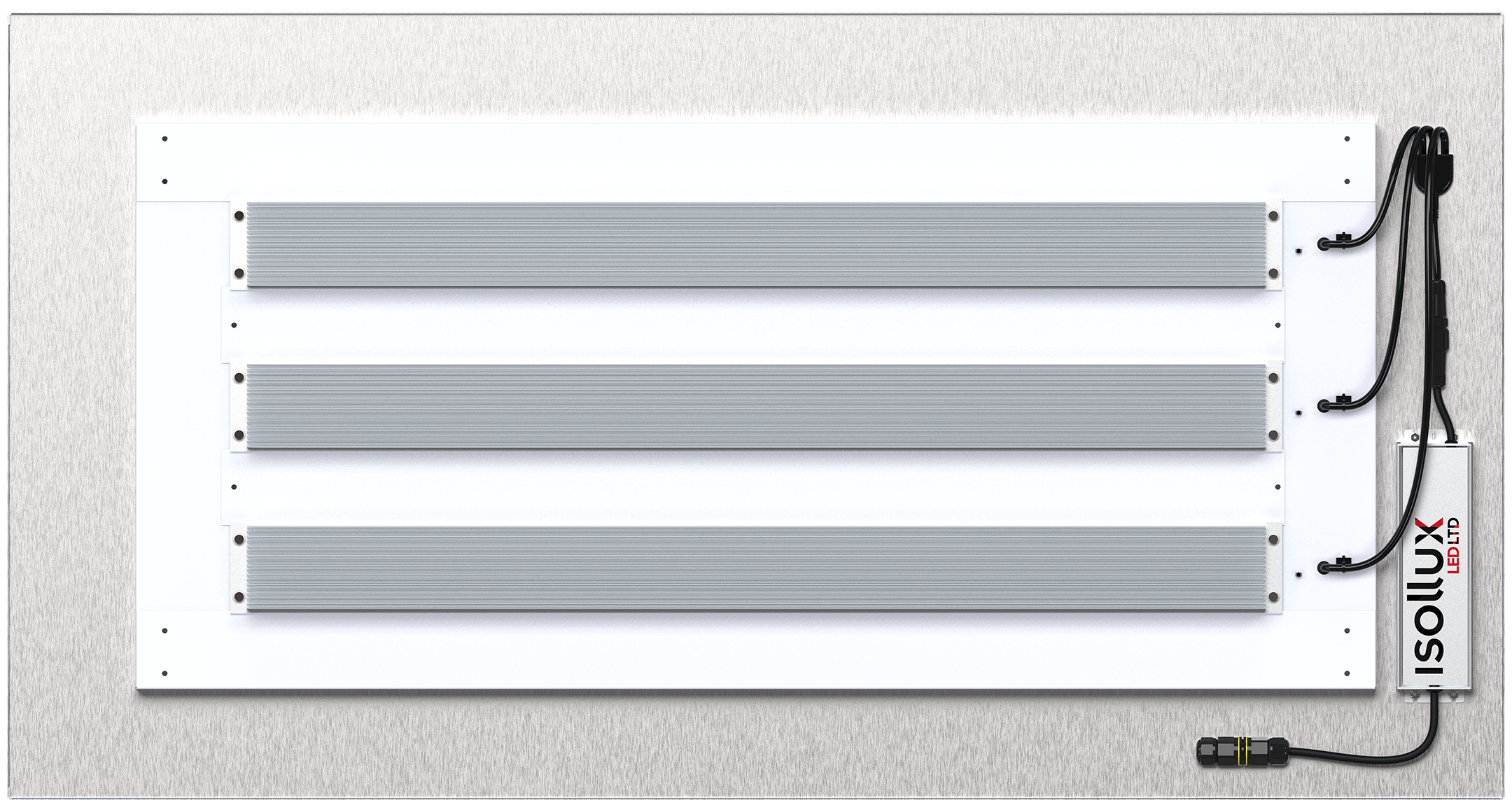

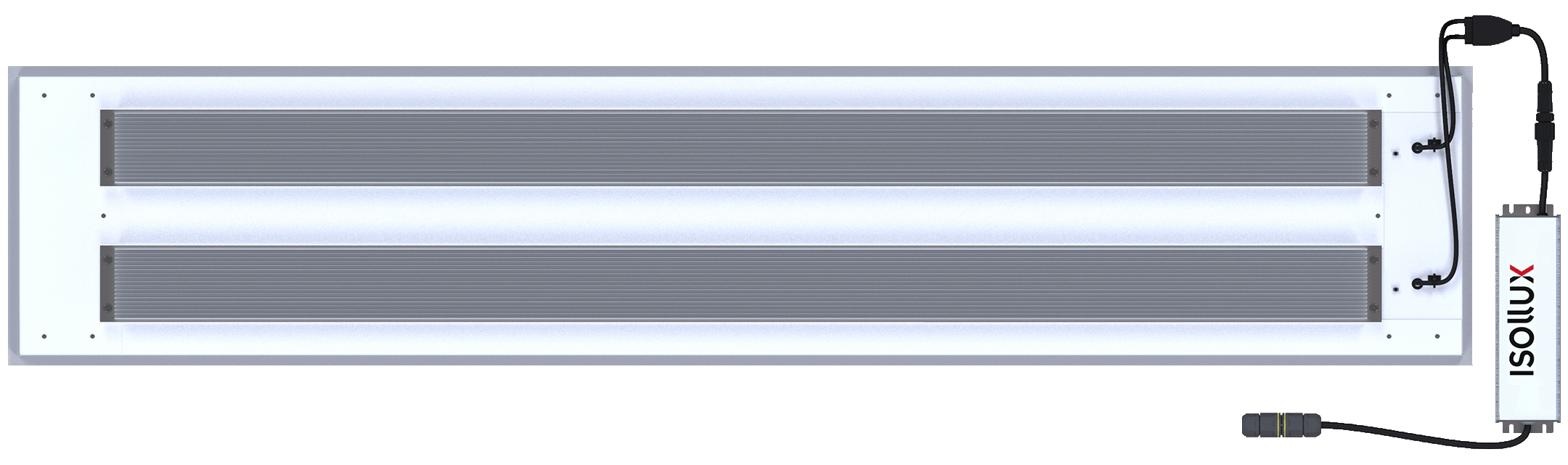

Standard configuration includes three LED arrays, with the box sized to suit the footprint of the original luminaire.

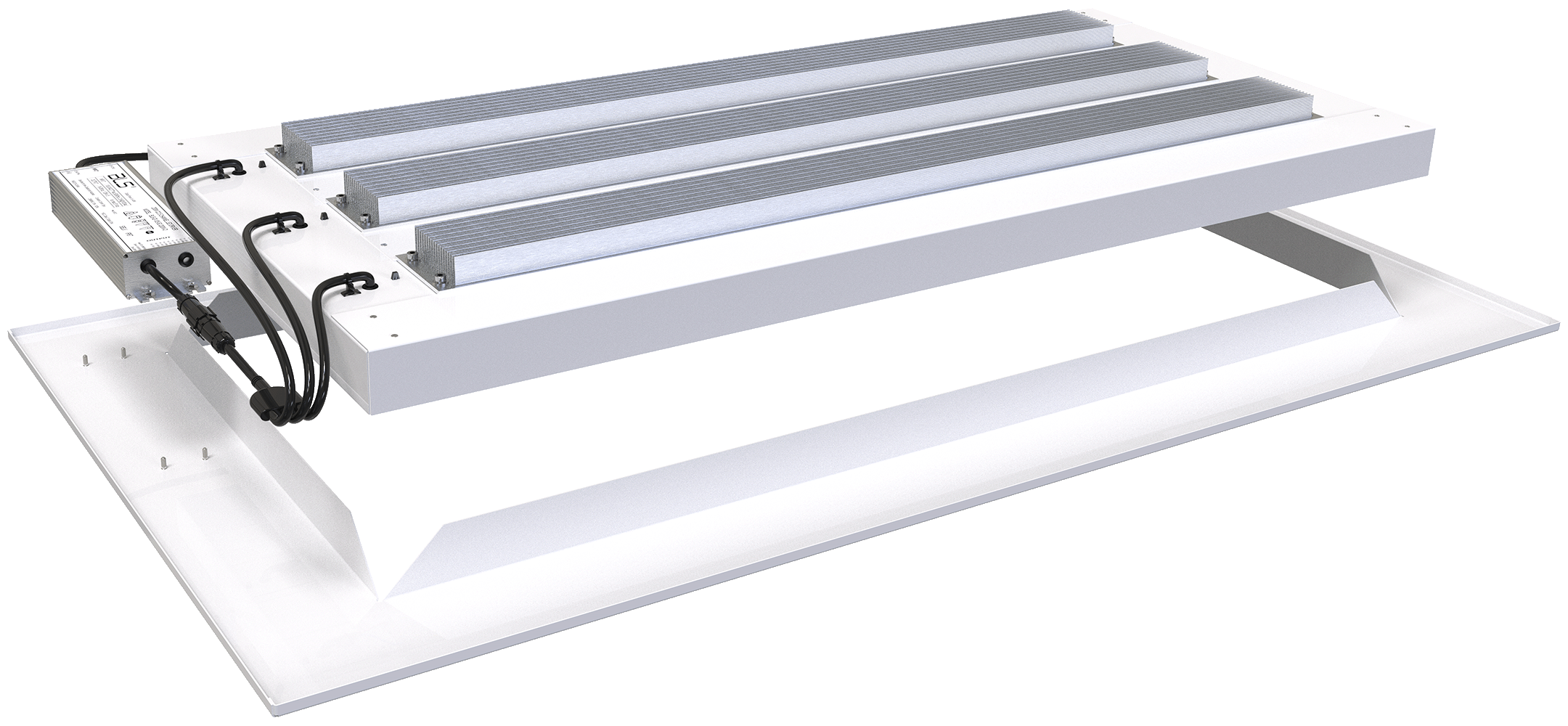

Flashing tray is sized to fit over the original luminaire to ensure a fire safe solution which can be screwed or riveted into position.
*CAD fees may apply for shaped enclosure and subject to MOQ
Primary Optics

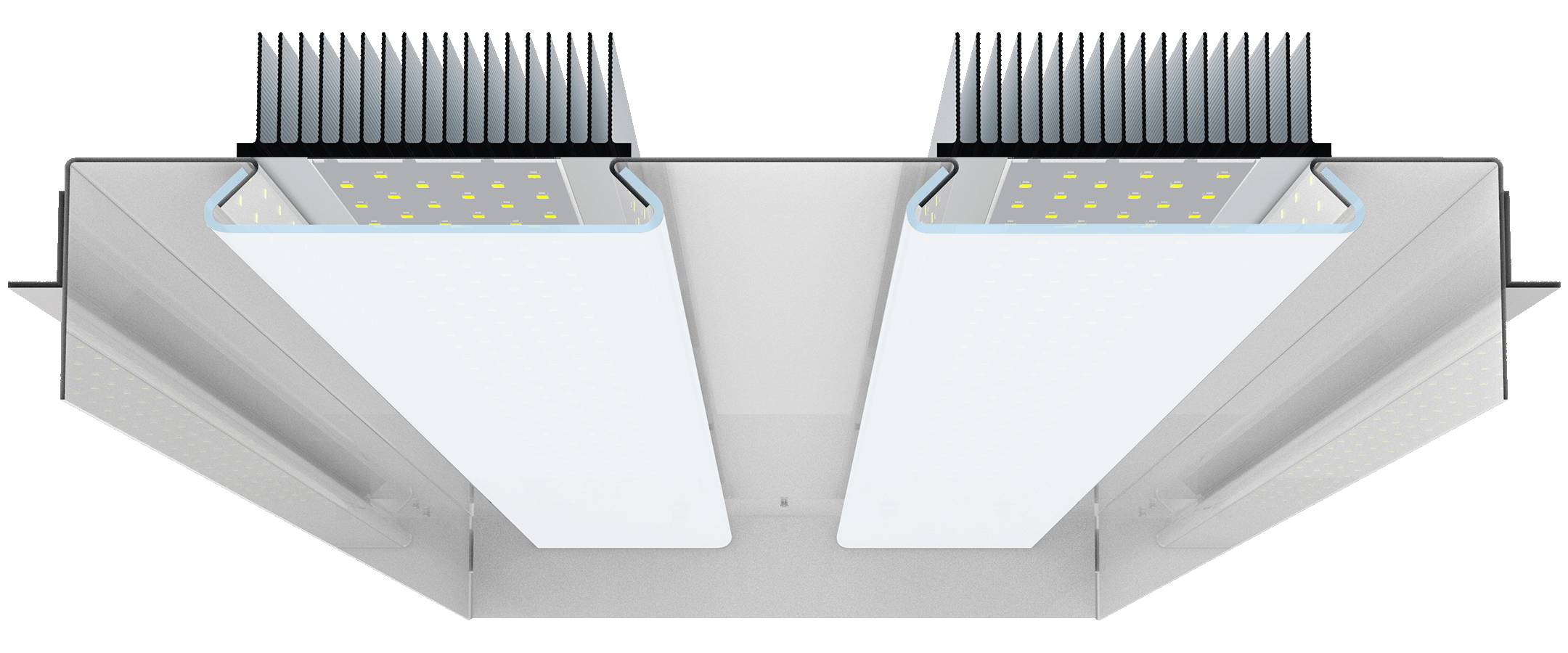

The primary lens protects the LEDs against accidental damage during installation, broadens and diffuses the light source prior to the legacy lens to assist in the elimination of spotting and glare.
Eliminates dangerous reflections and glare
Reduces work place accidents
Eliminates shadows around complex machinery and aerial clutter
Soft light + precise colour rendering improves visual acuity
Improves accuracy during inspection and sanitation
Four Power Tray Options
The power tray of the Light Plate CM shares the same heat sink and LED array as the latest Soffito product range, offering all of the benefits possible within the limits of your legacy lens*.
150W | 22,500lm
180W | 27,000lm
240W | 36,000lm
320W | 48,000lm
* Nominal output (lux) at Ta 25ºC, based on CCT 5,000K, Ra85, R9≥10. Ra95 multiplier 0.92 before losses subject to legacy lens.
More Details
LED Performance
ISOLLUX HE LED CHIP
184lm/W @ Ra85
100,000Hrs/L90
Ra85 | Ra95 | 3000K | 4000K | 5000K | 6000K
The Isollux HE LED Chip is powerful and long-lasting. Capable of delivering 184 lumens per watt (before loses) and the ability to last four times the industry standard with proper driver management*. The HE Chip delivers an exceptional ROI, with a low environmental impact and class leading performance.
Isollux HE is a dual die chipset, operated at less than 50% of its peak drive current, designed to deliver the maximum service life and efficacy of the luminaire. It has an exceptionally long service life of L90 100,000Hrs specified to optimise the luminaire performance. It is ideal to support long term maintenance strategies minimising waste (See maintenance section below).
Colour Rendering
Ra95 for colour critical applications.
Available in four standard colour temperatures, from 2,700~6,000ºK with superb colour rendering at both Ra85 and Ra95
@ Nominal Ra95 / 4,000k (CRI 94.2)
Ra85 boosts efficacy
Specifying Ra85 increases lumen output whilst maintaining full colour rendering, high R9 with neutral bias, perfect for general industrial commercial and retail applications.
@ Nominal Ra85 / 4,000k (CRI 85.9)
*Factor 0.92 at Ra95 and increase luminaire wattage accordingly to maintain required lux levels.
Key Benefits
IP67 Barrel connector provides simple and flexible connection options to mains power.
GEN 4 high density HE LED arrays mounted to SFO TYPE A heatsink delivers 150lm/W output.
Light Plate closed corner construction provides fire seal to flashing beneath.
Meanwell HLG SELV Driver provides up to seven years warranty and an expected service life ≥ 60,000Hrs.
Quick connector allows the flashing plate to remain in place with the light engine removed for easy cleaning.
Powder coat folded steel frame provides fire flashing enclosing the original opening.
Maintenance
Light Plate HE delivers performance of up to 200,000 L70, when combined with simple fast and efficient driver replacements to obtain maximum life of your fitting (See Lifetime Sustainability below).
Maintenance makes sense, financially, ecologically and practically.
Lifetime Sustainablilty
Isollux HE dual chip technology increases LED lifetime up to 200,000 Hrs, with maintenance kits to extend the practical life of the luminaire. Simple, efficient and financially beneficial.
Reduces total cost of ownership maximising ROI and NPV
Reduces land fill, manufacturing and supply related carbon footprint by up to 640%
Delivers a longer practical performance life (L90 >100,000 Hrs* - L70 > 200,000 Hrs)
Supports planned and unscheduled maintenance to the maximum life of the fitting
Minimizes downtime with easily maintained and replaceable parts
Ensures continuity of fixtures on site
Components easily dismantled at end of life for recycling
Packing and Shipping Information
Light Plate CM 6060
Carton Weight: 14kg
Carton Dimensions: 72cm x 72cm x 18cm
Units Per Carton: 1
Product Net Weight: 13kg
Light Plate CM 1230
Carton Weight: 15kg
Carton Dimensions: 145cm x 36cm x 18cm
Units Per Carton: 1
Product Net Weight: 14kg
Light Plate CM 1260
Carton Weight: 28kg
Carton Dimensions: 145cm x 72cm x 18cm
Units Per Carton: 1
Product Net Weight: 26.5kg
*All sizes and weights are for shipping and delivery purposes only and can to change depending on specification. For an exact size and weight contact Isollux directly.
Download: Brochures | Instructions | IES Files
Light Plate CM Brochure
*HE Chipset L90 Lifetime calculated using 9,000hr independent LM80 photometry report, citing zero failures, using the Energy Star TM-21 protocol. Calculations are based on ambient temperatures of 25ºC. Assumes driver replacement as routine maintenance event with driver replacement schedules subject to, power quality, frequency of switching cycles and average to peak ambient operating temperatures. Assumes driver replacement at midpoint of lifecycle, with the calculated MTFB 192.2K hrs min. MIL-HDBK-217F (25°C) based on the 100W 1500mm TPA/TPH. Average driver life 62,000Hrs.
