POWERBAY

The scalable industrial lighting platform.

Proven through more than 15 years of continuous production and successfully employed across a wide range of applications including logistics hubs, blast freezers, aircraft hangars, manufacturing facilities and warehouses, the PowerBay system offers a single scalable lighting platform to suit all applications from 48 W to 840 W.

A single highbay solution for all applications.

The modular platform supports suspended, surface, beam-mounted and bespoke custom installation solutions, while maintaining a consistent visual appearance across an entire project. Colour rendering is available from CRI 85–97, with Ambrite™ for photosensitive applications. The PowerBay range is compatible with DALI, wireless and BMS control systems, or can be specified as a simple switched solution.

Flexible configurations and adaptive optics

Adaptive optics, interchangeable reflectors and a wide range of specialist lenses support precise specification while allowing the luminaire to adapt to changes in operational requirements. Options include narrow aisle distributions for warehousing, high-intensity optics for extreme mounting heights, and low-glare frosted lenses for high-lux applications at lower mounting heights.

Engineered for long-term performance.

With IP66 optical assemblies, multiple on-board protection systems and a fully field-serviceable gear tray, PowerBay has become a trusted choice for industrial and infrastructure projects. Backed by a 10-year warranty and LM-80 / TM-21-21 verified L80 >100,000 hours (B0) performance, it operates reliably in ambient temperatures from -40°C to +70°C.

Explore our Engineering Design and Principles

For surface-mount applications refer: PowerBay CM Series

Contact Us for the Full Data Pack

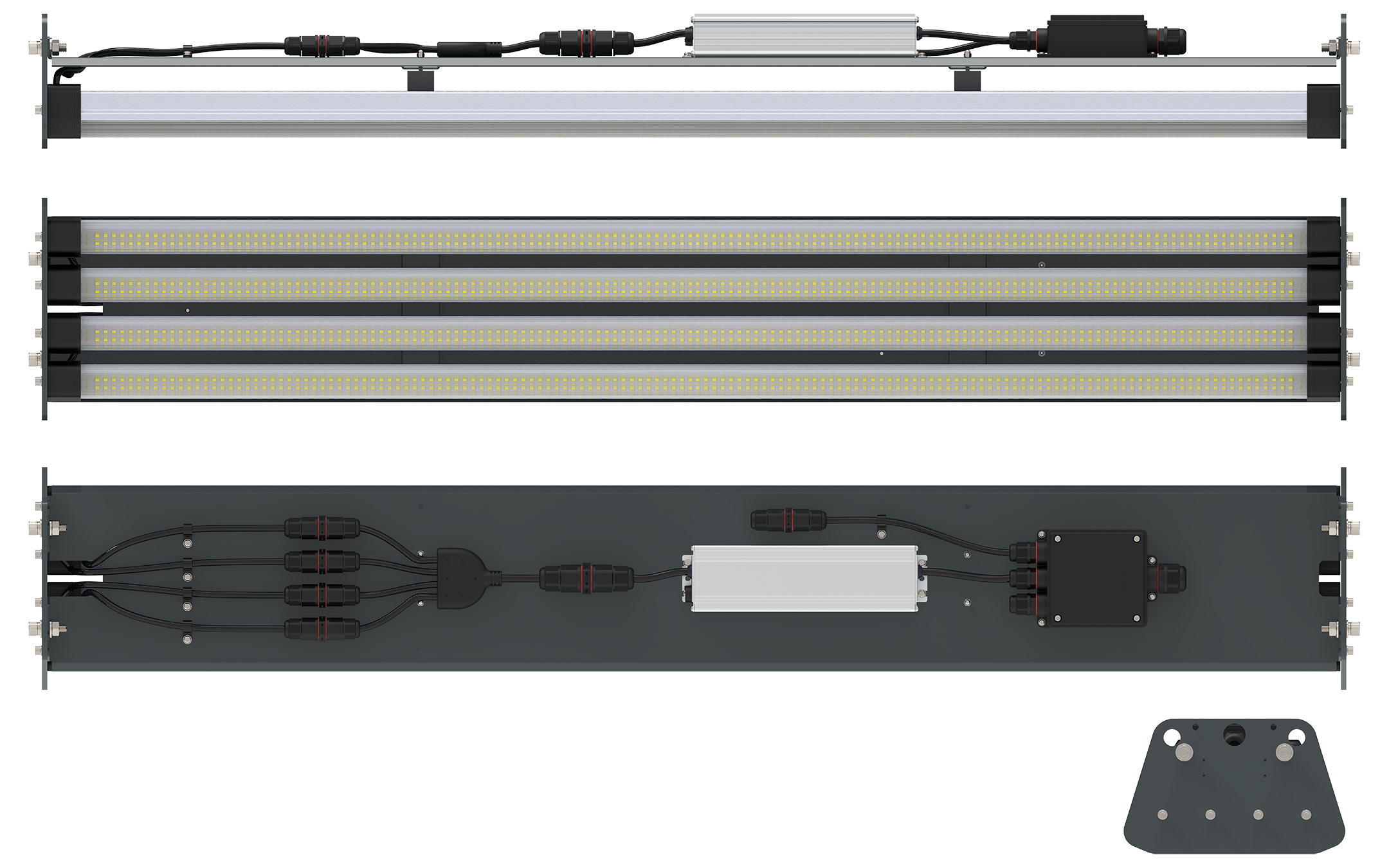

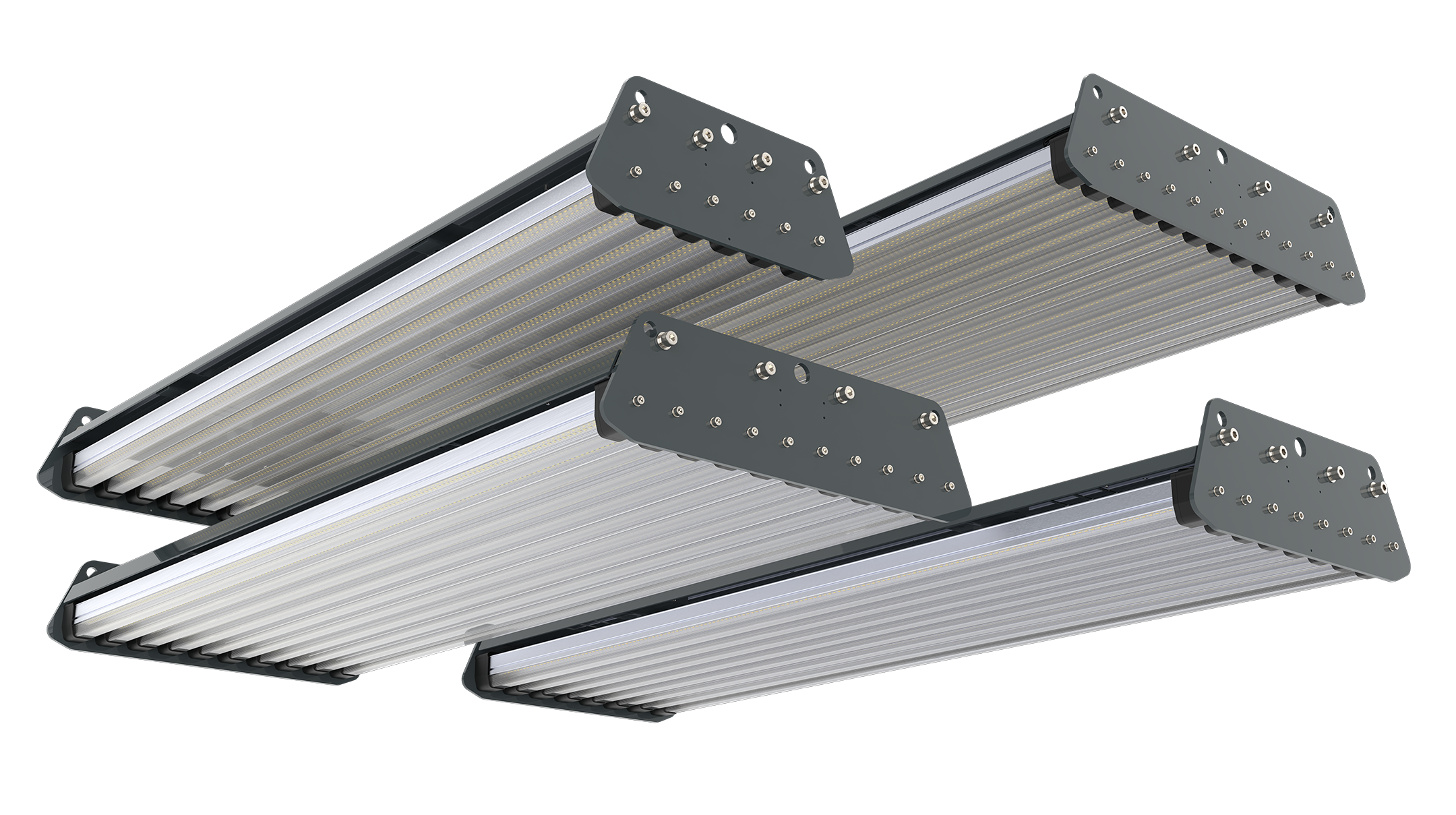

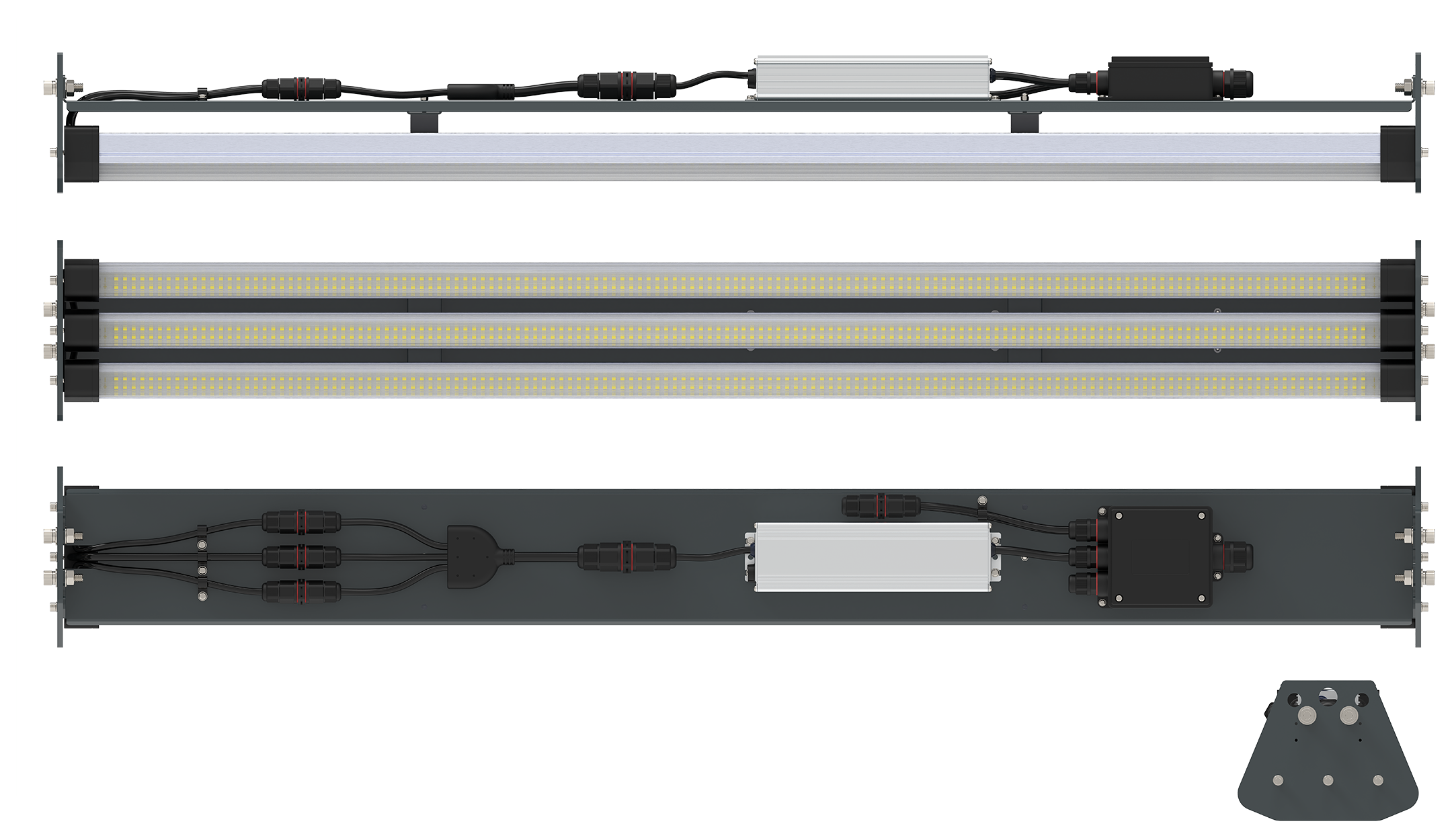

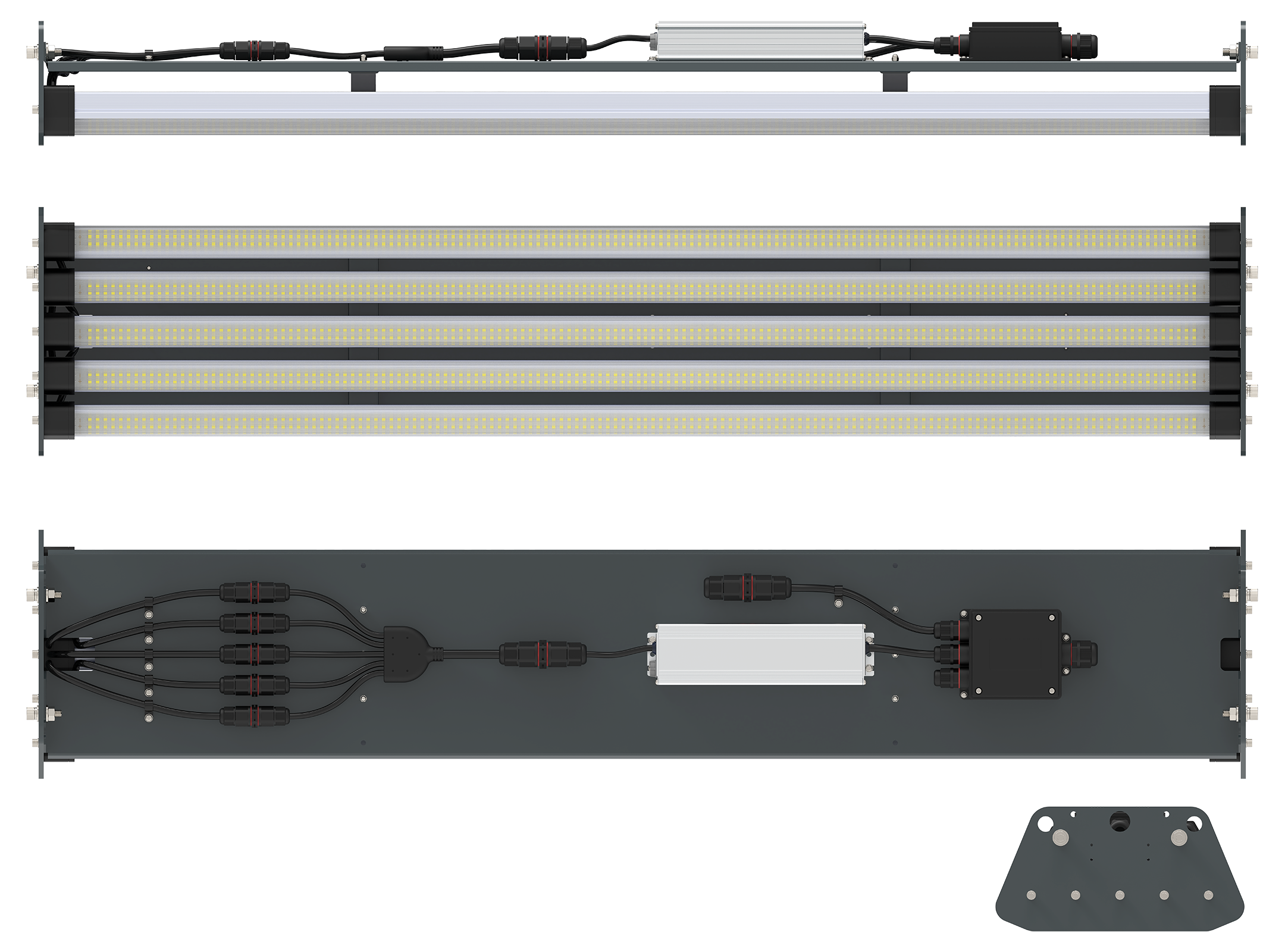

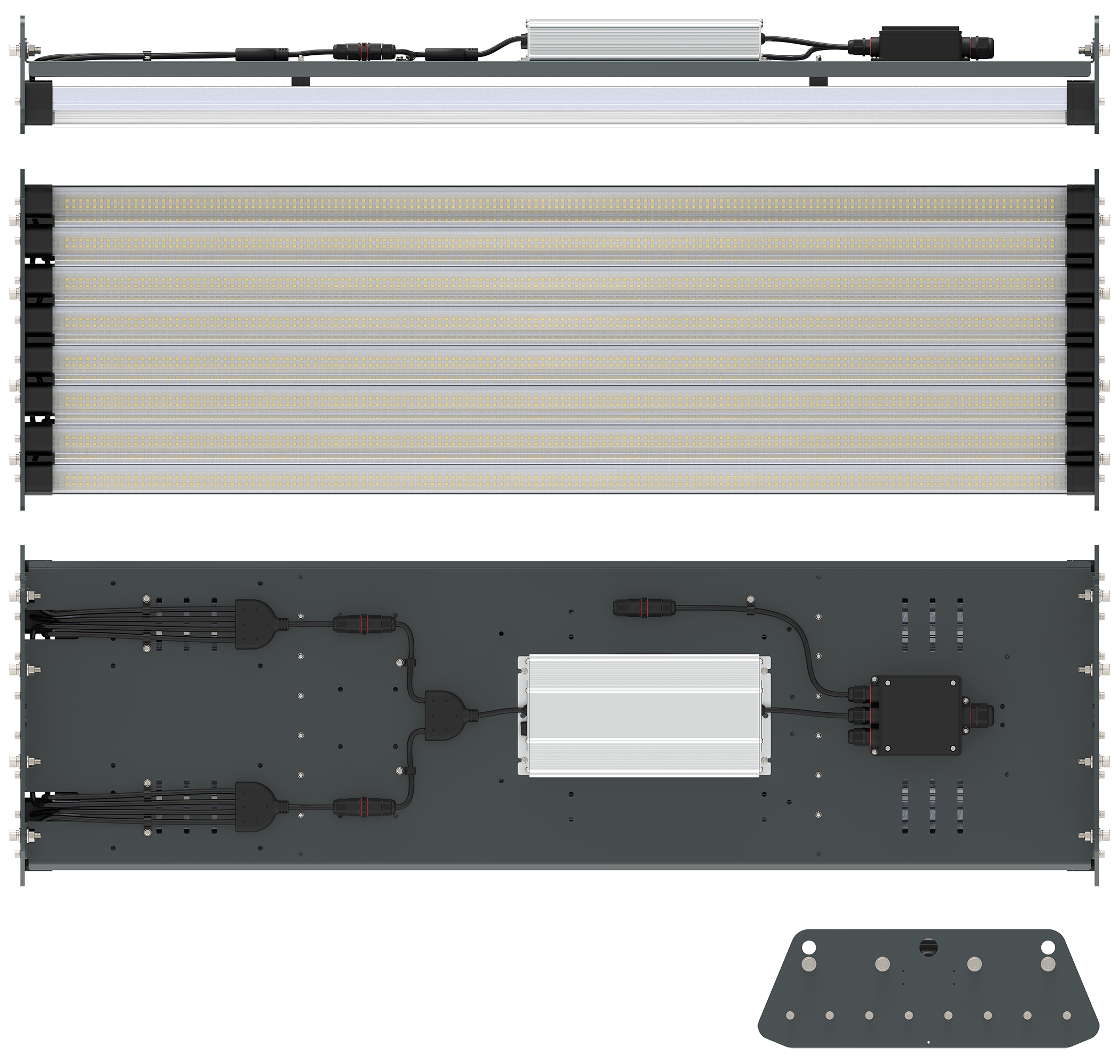

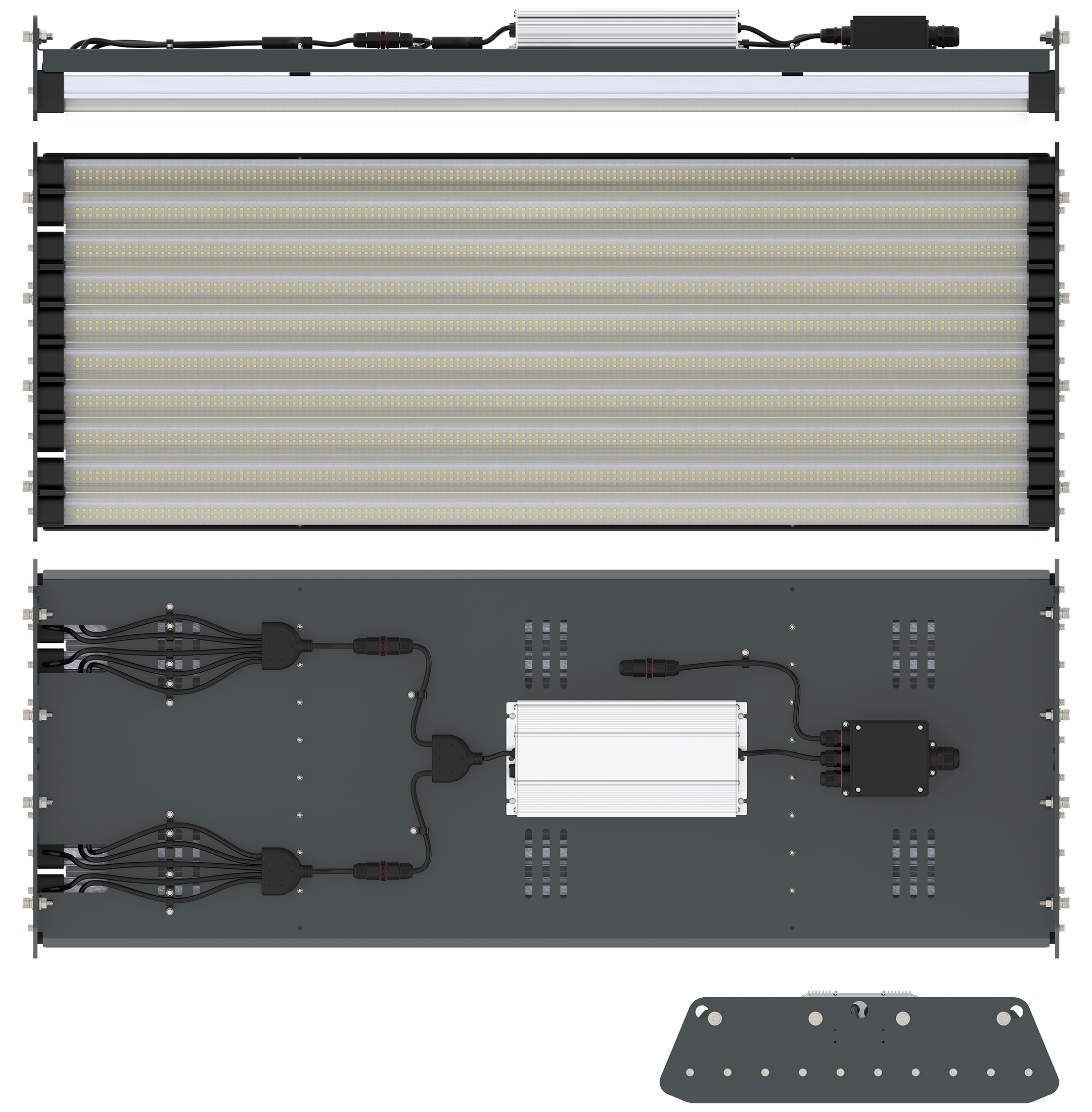

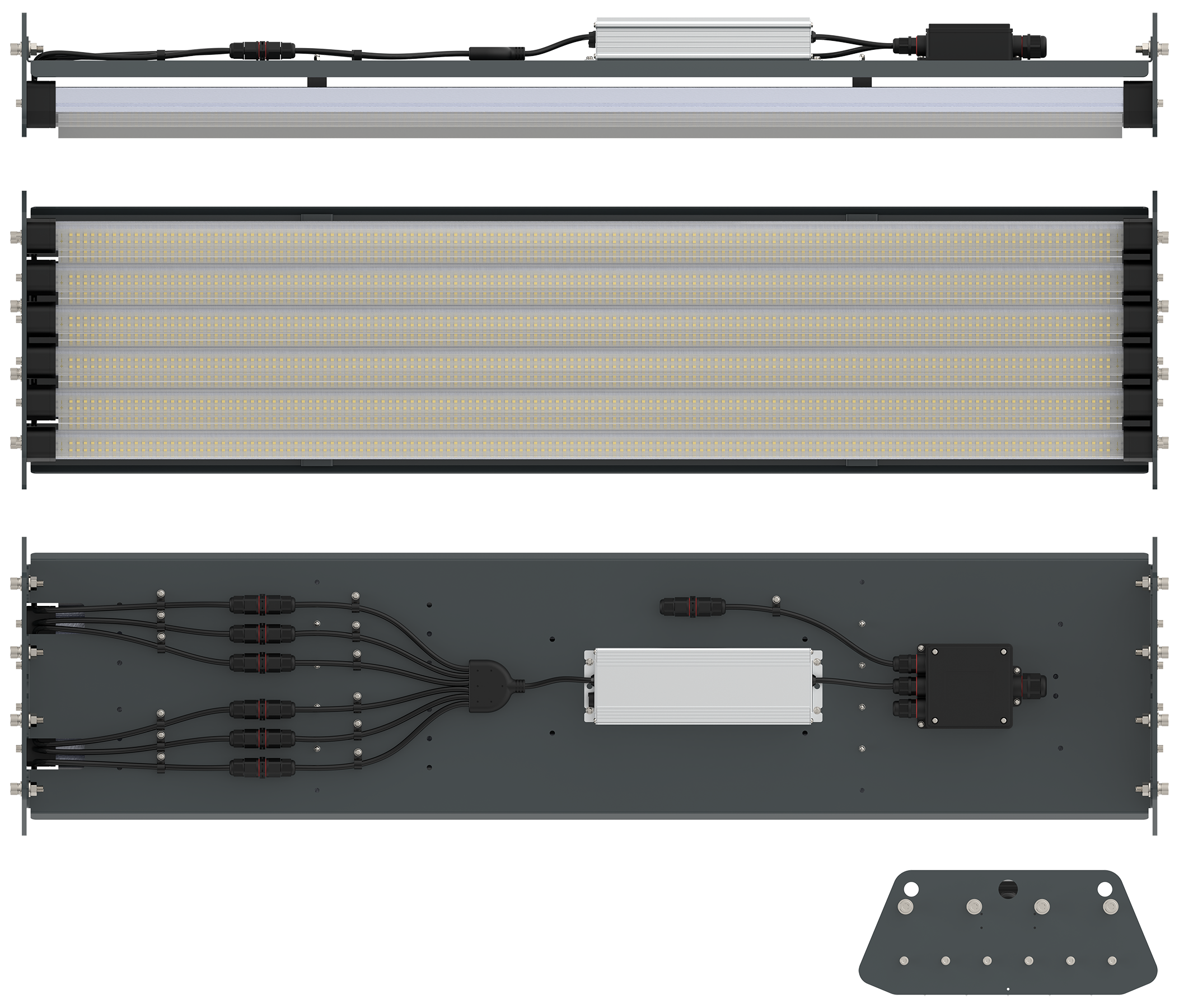

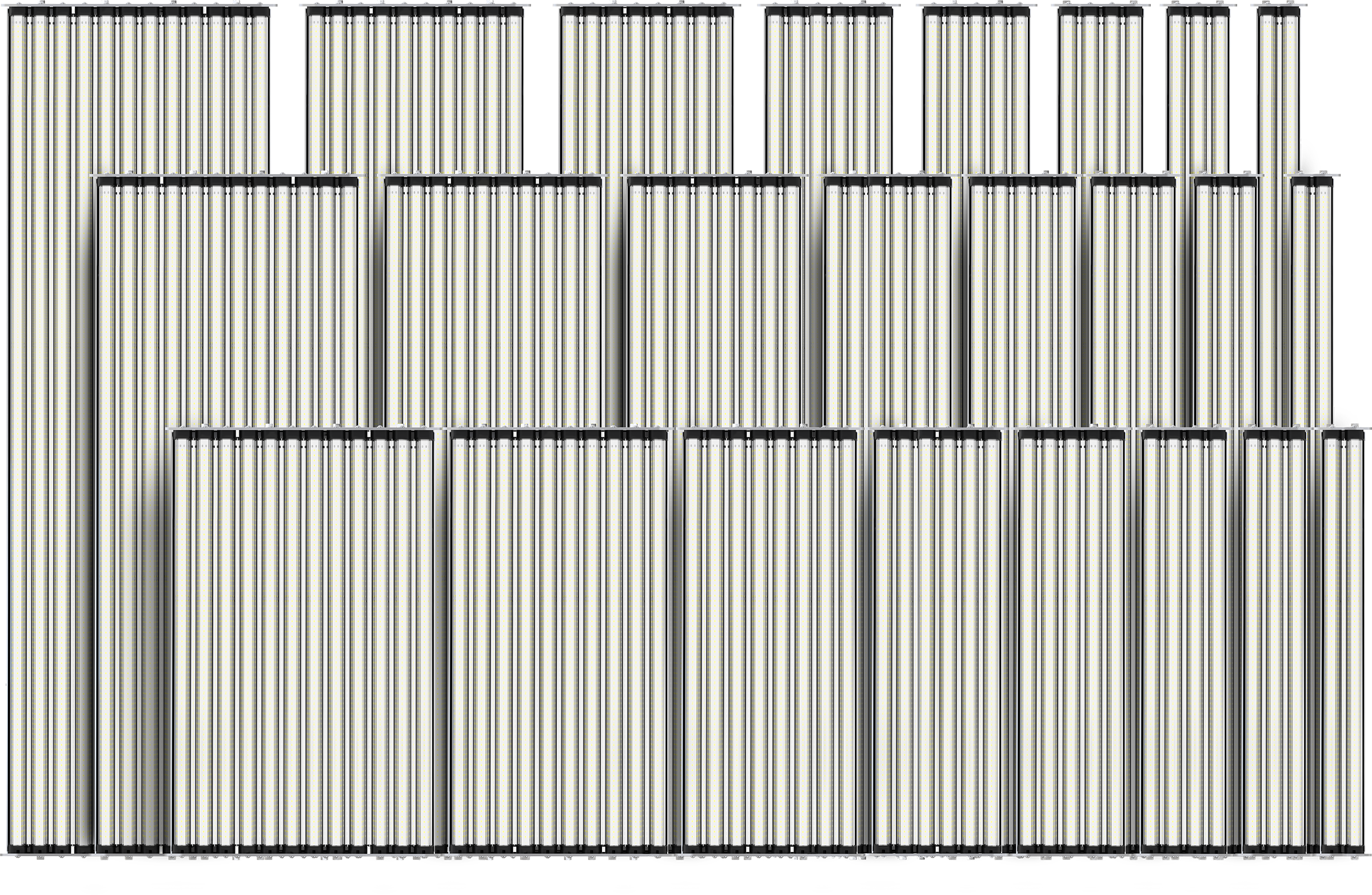

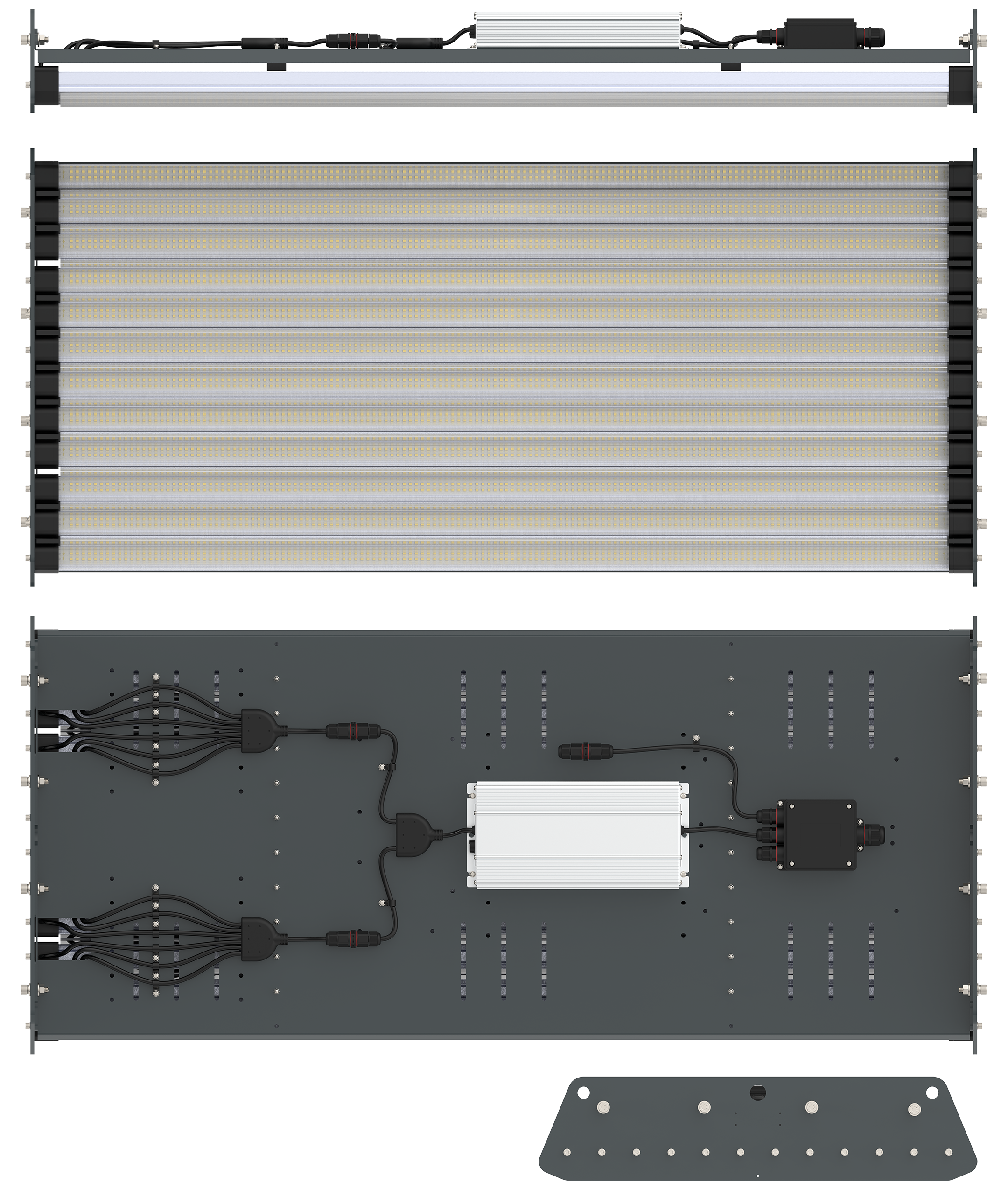

Adjust the Length or Number of PowerBars

By adjusting the number and length of the PowerBars from 2–12 at 750 mm, 1200 mm and 1500 mm, system efficacy is maintained at up to 840 W across all ambient temperatures while ensuring the LEDs operate with optimum reliability for a minimum 10-year service life.

Find out more about our LED Options and Performance

Standard or Custom Lengths

While the standard PowerBars offer a huge range of flexibilty to specifiers, we also offer bespoke options for integration with custom installation requirements and unique architectural features.

For examples refer to: Custom Solutions or contact us for support


        Low Ambient

        1500 mm
        70 W
        Ta: ≤ 15ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1500
        70 W
        11,480 lm

        PB2-1500
        140 W
        22,960 lm

        PB3-1500
        210 W
        34,440 lm

        PB4-1500
        280 W
        45,920 lm

        PB5-1500
        350 W
        57,400 lm

        PB6-1500
        420 W
        68,880 lm

        PB8-1500
        560 W
        91,840 lm

        PB10-1500
        700 W
        114,800 lm

        PB12-1500
        840 W
        137,760 lm

PowerBay 1500


        Standard Ambient

        1500 mm
        54 W
        Ta: ≤ 50ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1500
        54 W
        8,856 lm

        PB2-1500
        108 W
        17,712 lm

        PB3-1500
        162 W
        26,568 lm

        PB4-1500
        216 W
        35,424 lm

        PB5-1500
        270 W
        44,280 lm

        PB6-1500
        324 W
        53,136 lm

        PB8-1500
        432 W
        70,848 lm

        PB10-1500
        540 W
        88,560 lm

        PB12-1500
        648 W
        106,272 lm


        High Ambient

        1500 mm
        40 W
        Ta: ≤ 70ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1500
        40 W
        6,560 lm

        PB2-1500
        80 W
        13,120 lm

        PB3-1500
        120 W
        19,680 lm

        PB4-1500
        160 W
        26,240 lm

        PB5-1500
        200 W
        32,800 lm

        PB6-1500
        240 W
        39,360 lm

        PB8-1500
        320 W
        52,480 lm

        PB10-1500
        400 W
        65,600 lm

        PB12-1500
        480 W
        78,720 lm


        Low Ambient

        1200 mm
        56 W
        Ta: ≤ 15ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1200
        56 W
        9,184 lm

        PB2-1200
        112 W
        18,368 lm

        PB3-1200
        168 W
        27,552 lm

        PB4-1200
        224 W
        36,736 lm

        PB5-1200
        280 W
        45,920 lm

        PB6-1200
        336 W
        55,104 lm

        PB8-1200
        448W
        73,472 lm

        PB10-1200
        560 W
        91,840 lm

        PB12-1200
        672 W
        110,208 lm

PowerBay 1200


        Standard Ambient

        1200 mm
        44 W
        Ta: ≤ 50ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1200
        44 W
        7,216 lm

        PB2-1200
        88 W
        14,432 lm

        PB3-1200
        132 W
        21,648 lm

        PB4-1200
        176 W
        28,864 lm

        PB5-1200
        220 W
        36,080 lm

        PB6-1200
        264 W
        43,296 lm

        PB8-1200
        352 W
        57,728 lm

        PB10-1200
        440 W
        72,160 lm

        PB12-1200
        528 W
        86,592 lm


        High Ambient

        1200 mm
        32 W
        Ta: ≤ 70ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-1200
        32 W
        5,248 lm

        PB2-1200
        64 W
        10,496 lm

        PB3-1200
        96 W
        15,744 lm

        PB4-1200
        128 W
        20,992 lm

        PB5-1200
        160 W
        26,240 lm

        PB6-1200
        192 W
        31,488 lm

        PB8-1200
        256 W
        41,984 lm

        PB10-1200
        320 W
        52,480 lm

        PB12-1200
        384 W
        62,976 lm


        Low Ambient

        750 mm
        35 W
        Ta: ≤ 15ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-0750
        35 W
        5,740 lm

        PB2-0750
        70 W
        11,480 lm

        PB3-0750
        105 W
        17,220 lm

        PB4-0750
        140W
        22,960 lm

        PB5-0750
        175 W
        28,700 lm

        PB6-0750
        210 W
        34,440 lm

        PB8-0750
        280 W
        45,920 lm

        PB10-0750
        350 W
        57,400 lm

        PB12-0750
        420 W
        68,880 lm

PowerBay 0750


        Standard Ambient

        750 mm
        27 W
        Ta: ≤ 50ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-0750
        27 W
        4,428 lm

        PB2-0750
        54 W
        8,856 lm

        PB3-0750
        81 W
        13,284 lm

        PB4-0750
        108 W
        17,712 lm

        PB5-0750
        135 W
        22,140 lm

        PB6-0750
        162 W
        26,568 lm

        PB8-0750
        216 W
        35,424 lm

        PB10-0750
        270 W
        44,280 lm

        PB12-0750
        324 W
        53,136 lm


        High Ambient

        750 mm
        20 W
        Ta: ≤ 70ºC

        TM21-21
        L80 >
        100,000 h

        CCT 5ºK
        CRI: 85
        164 lm/W

        PB1-0750
        20 W
        3,280 lm

        PB2-0750
        40 W
        6,560 lm

        PB3-0750
        60 W
        9,840 lm

        PB4-0750
        80 W
        13,120 lm

        PB5-0750
        100 W
        16,400 lm

        PB6-0750
        120 W
        19,680 lm

        PB8-0750
        160 W
        26,240 lm

        PB10-0750
        200 W
        32,800 lm

        PB12-0750
        240 W
        39,360 lm

Understanding Product Specifications


        Add Driver Specification:

        Non-Dimming
        -ND

        1-10 V Dimming
        -DM

        DALI 2
        -DA

        DALI D4i
        -D4


        Add Lens Specification:

        Standard Variable
        -ST

        Standard with Reflector
        -ST-R

        Narrow Aisle
        -AS

        High Mount
        -AC

        Frosted
        -FR

        AddReflectors
        -FR-R


      PB6-1500-XE-585-420W-DA-ST

      - PowerBay 6 (6 Bars)

      - 1500 mm

      - XE Chipset

      - 5,000 K, CRI 85

      - 420 W

      - DALI 2 Driver

      - Standard Variable Lens

Example:

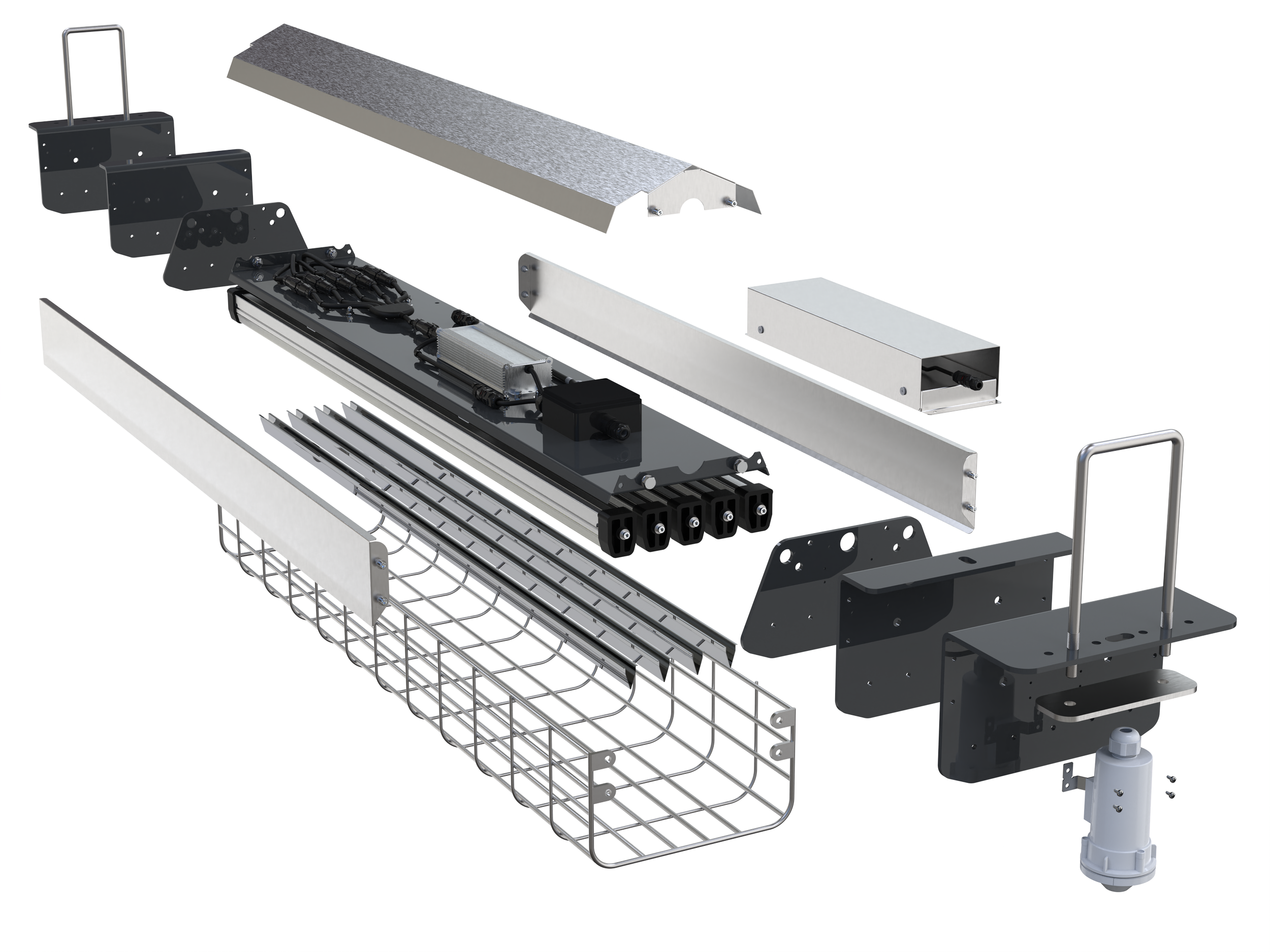

Build the product you need.

Use standard accessories for suspension, beam, bracket, surface, or recessed mounts, select gear tray or remote mount drivers to simplify maintenance to suit the diverse mounting, optical and operational requirements of complex industrial sites.

Add reflectors, side flashings and dust covers, integrate with a range of sensors, and specify direct or fly-lead connection.

Bespoke Design Support

If you can't find the option you need, our engineers are on hand to provide free CAD design and certification to suit custom requirements, adapting our standard formats or developing new solutions for unique architectural and safety requirements.

Click here to see an example.

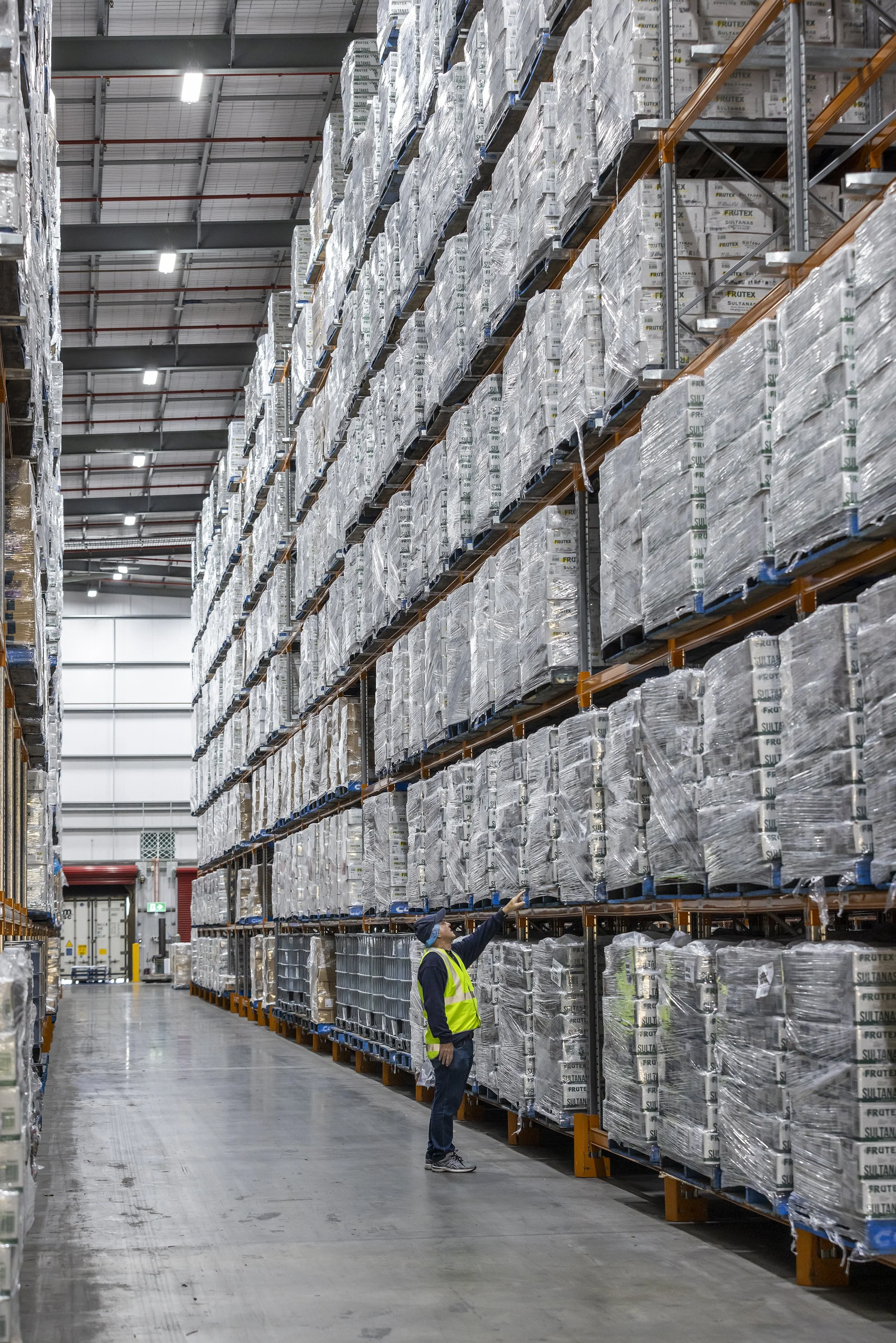

Large Cool Store Warehousing with Shortbay Series Highbay Luminaires

Engineered for Long Term Performance

Ingress and impact:

With food-grade, impact resistant IP66 polycarbonate lenses, solid steel construction, finished in tough epoxy resin, Powerbay protects against impact, wet and freezing temperatures for the long haul.

Thermal Stability

Extruded aluminium heatsinks and high-density LED arrays minimise thermal gain, delivering reliable performance across a wide ambient temperature range.

Vibration and Shock Protection

EPDM dampers and potted drivers protect the fixture against mechanical stress and preserve structural integrity even when exposed to vibration or unintentional impact.

Serviceable Electronics:

IP67 screw terminal connectors protect against moisture ingress and corrosion, while supporting the service and replacement of key components.

Fully Serviceable

Chemical Resistance:

An optional coating to the PCB protects the LED from corrosive gases, moisture and excessive humidity.

Isolated IP66/IP67 LED drivers:

Our isolated drivers are rated Class 1, Division 2 for Hazardous locations and de-rated to 80% of their maximum power output de-stressing components and ensuring optimum service life and reliability.

Built in Driver Protection:

All our drivers feature multiple layers of protection with auto-restart. So you can be sure your investment is protected. Standard features include:

Under Voltage Protection [UVP]
Over Voltage Protection [OVP]
Short Circuit Protection with auto recovery [SCP]
Over Temperature Protection [OTP]
Surge Protection [DM 6kV, CM 10kV]

Narrow Beam Asymmetric Lenses

Whether lighting from extreme height or pushing light down between narrow spaces or aisles, our asymmetric lenses minimise fixture count and ensure optimum uniformity on both vertical and horizontal planes.

Warehouse Image:

PowerBay 5 (HE Chipset 2020) at 14m delivered highly uniform illumination to floor level in a narrow aisle, resulting in measurable reductions in missed picks for the customer, with improved productivity and safer operation.

(Similar results now possible with PB3-PB4)

AS-Lens 45º x 88º

The AS lens increases vertical push and luminaire spacing, suitable for general application including warehouse and high industrial applications at heights between 15-45m.

AC-Lens 33º x 94º

The AC lens intensifies vertical push, while maintaining a wide beam angle (C0/180) to support wider luminaire spacing, reducing installation and product costs.

Adaptive Optics

Rotational LED arrays with optional snap-in reflectors allow each fixture to be configured from narrow to wide beam angles using a standard lens package. This modular optical system enables on-site adjustment, placing light precisely where it is needed.

If aisle layouts change, are removed, or added to suit a new use, the optics can be reconfigured rather than replaced. This flexibility is essential given the long service life of the fixtures, allowing lighting performance to adapt as operational requirements evolve over time.

Standard Aisle or High Mount

Reflectors to all arrays, no rotation, narrowing the beam angle to push light down towards the floor.

Open Area General Application

Reflectors to the centre with 5º–25º rotation to the outer bars.

Wide Angle Low Mount Height

Outer arrays rotated 25º pushes light out to the side, reducing or increasing the angle to suit requirements.

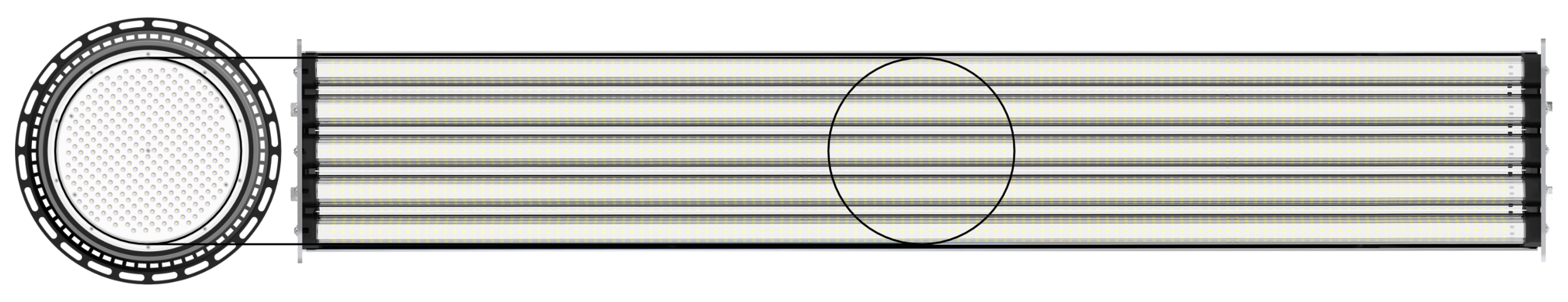

UFO High-Bay : More lights, dark areas and glare.

Power Bay: Less lights, uniform illumination across the face of the racks.

Benefits of linear arrays

PowerBay’s large linear format distributes light across the full face of the aisle, from floor to upper racking, improving visibility while typically requiring up to 30% fewer luminaires.

Uniform light across the full aisle

Conventional UFO high bays concentrate light beneath each fitting, creating high glare and pronounced dark areas between luminaires across the upper rack faces. This makes loads and racking more difficult for forklift operators to see and work around safely.

PowerBay distributes light along the aisle and across the full height of the racking, providing more uniform illumination with less glare and fewer dark areas where they matter most.

Fewer luminaires. Multiple benefits.

More effective light distribution means fewer luminaires are required. In typical high-bay applications, PowerBay can reduce luminaire quantities by up to 30%, reducing installation costs and the number of fittings and drivers to maintain over the life of the installation.

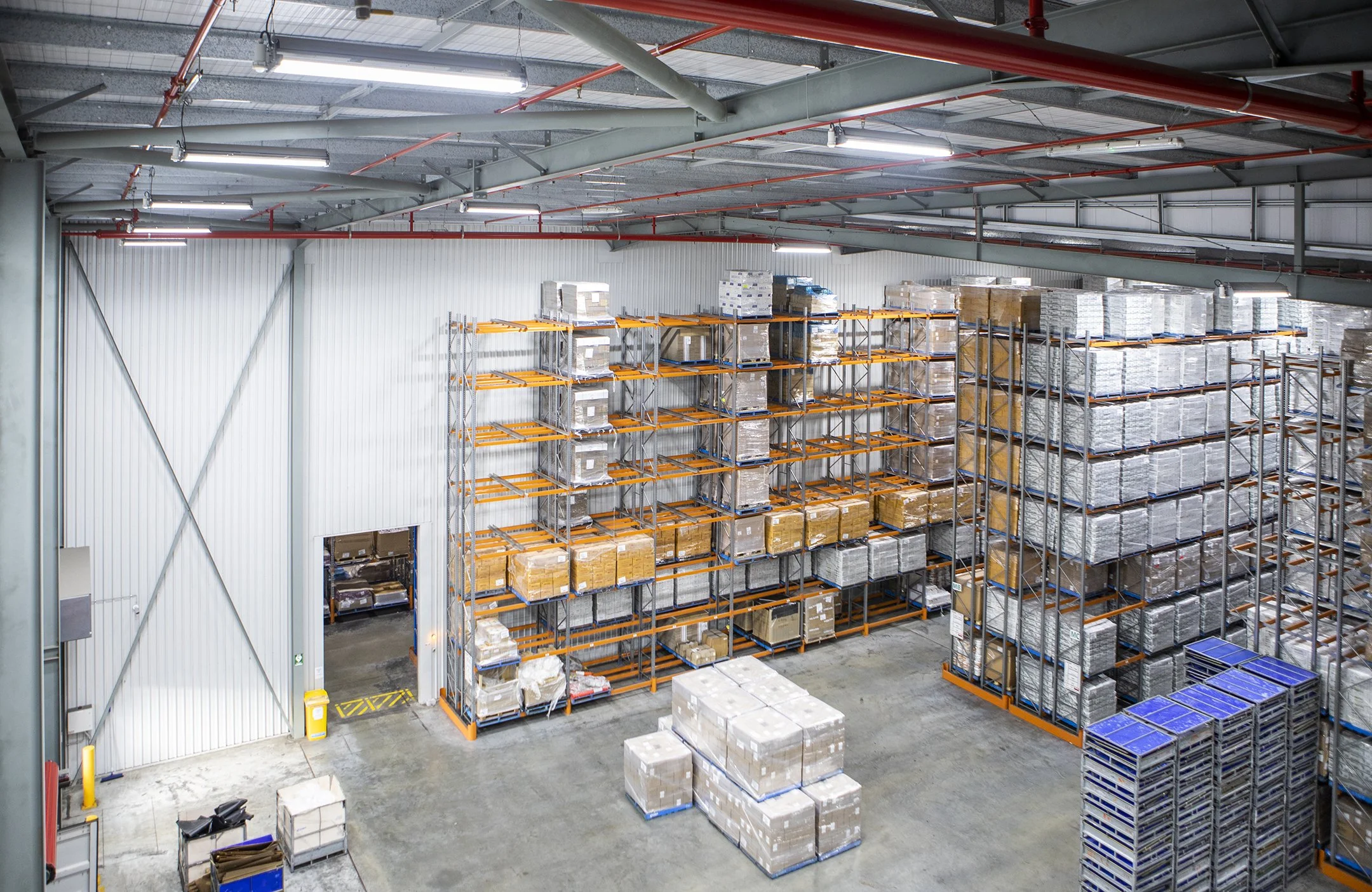

Eliminating Lost Product in High-Pressure Cold Storage
Seeka operates high-throughput packing and cold-storage facilities for export kiwifruit, avocados, and soft fruit. During peak season, produce is moved rapidly from pre-chillers into storage using forklifts in tight aisles under intense time pressure. Dropped trays don’t just damage fruit — falling produce cascades into lower stacks, causing disruption, loss, and rework.
In 2014, Seeka asked Isollux to upgrade their cool store lighting with a focus on reducing stacking related losses. We specified Light Bay as a one-for-one replacement to minimise cost, and utilised the variable optics to orientate the outer LED arrays toward the rack faces from a central mounting position.
The Result:
With a wide light distribution and fixtures oriented away from forklift drivers’ direct line of sight, illumination levels were lifted to the top of the racks, significantly improving uniformity and light penetration deep into the stacks. Increased background illumination and optimised aiming eliminated glare and retinal flare improving safety and enhancing visibility of the rack face, resulting in a 95% reduction in dropped trays compared with the previous year.
Talk to our team to learn how Isollux can help resolve lighting-related safety and productivity issues in your cold store or ware house operations.

Eliminating Dangerous Glare

Standard UFO high bays concentrate light into a small source, increasing glare. Isollux high bays distribute light across a larger surface to reduce hotspots and improve visual comfort and safety.

Proven Operational Benefits

In high-throughput cold-storage operations, improved visibility delivered by Isollux high-bay lighting has resulted in fewer dropped trays, reduced forklift impacts with lighting, and improved operational flow.

Eye Comfort

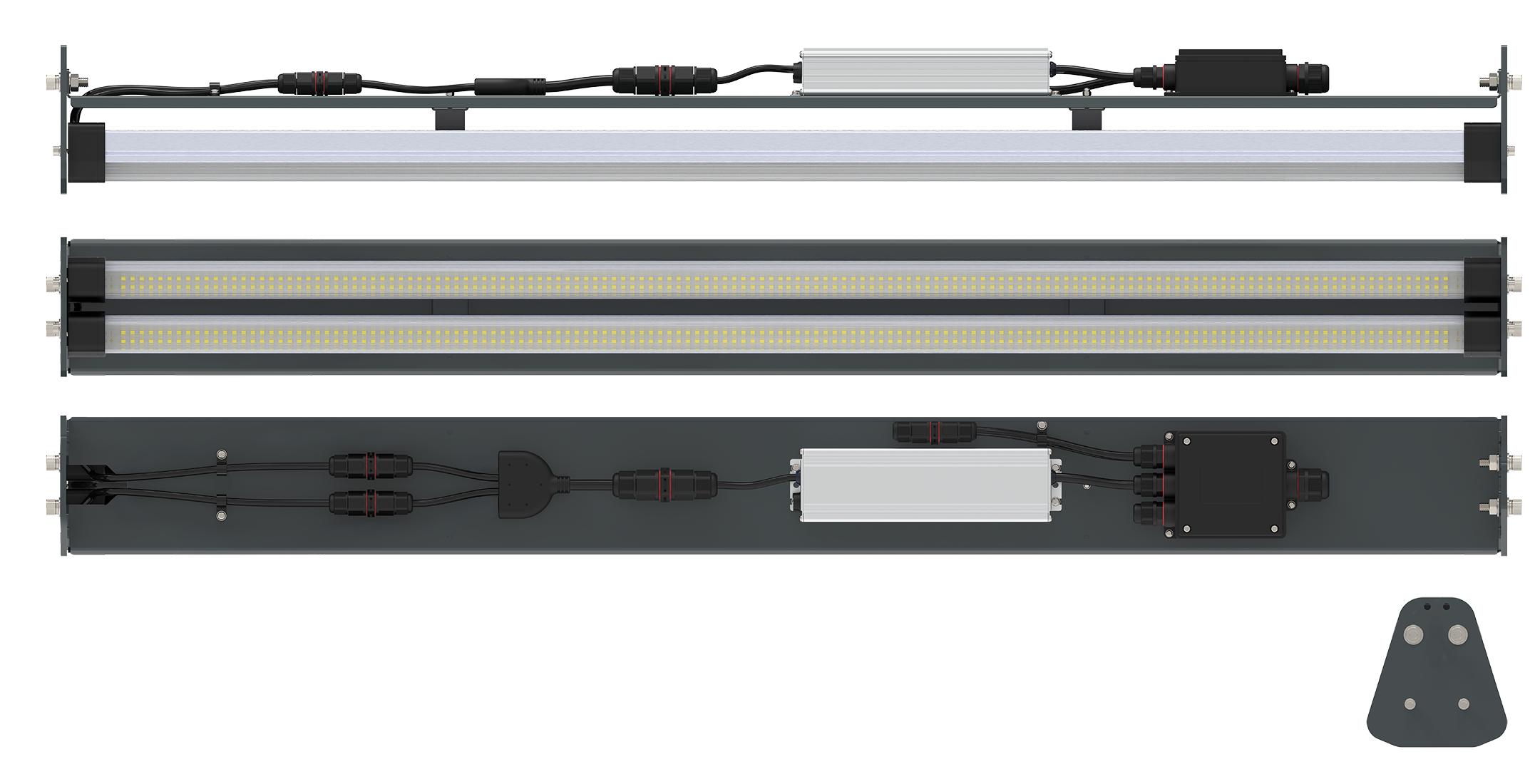

PowerBay PB2

750 | 1200 | 1500 mm
Refer table for power/ambient options.
1200 mm pictured

Lumen Maintenance:
LM-80/TM21 @ Ta 50ºC
L85 > 10 Years 24/7

Lens Options:
Fixed lenses: AC 45º x 88º | AS 33º x 94º
Adaptive lenses: 2 x Adjustable
1 x Reflectors max with adaptive lenses
