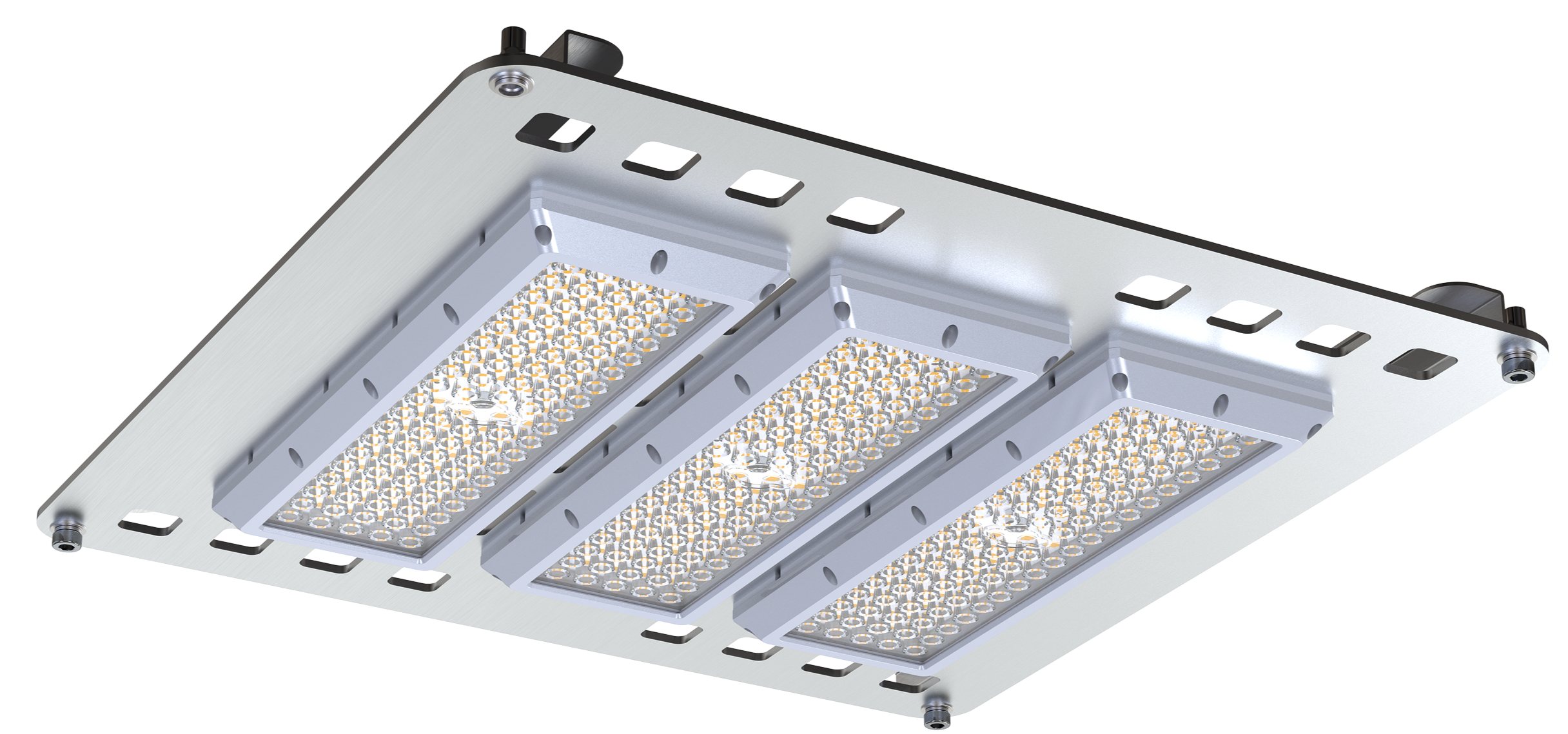

CRYOLUX

Ultra-Low Profile LED High Bay

Cryolux™ is an ultra-low-profile LED high bay engineered specifically for cold stores, freezers, temperature-controlled warehouses and loading bays, where every millimetre of clearance matters.

Designed as a direct surface-mounted replacement for conventional luminaires, its exceptionally shallow profile maximises operational clearance, reducing the risk of impact from forklifts and material handling equipment while preserving valuable storage height.

New Build – Freezers

New build installations require only a single cable penetration, with the remote LED driver typically mounted above the insulated PIR ceiling. This provides straightforward access for future servicing while maintaining the integrity of the vapour barrier.

LED Upgrades – Freezers & ELA

For freezer and External Loading Area (ELA) upgrades, the existing cable penetration and mains supply can be reused, converting the original wiring to a protected SELV supply for the luminaire via the supplied IP67 connector. This avoids additional penetrations through the insulated ceiling, preserving the original vapour barrier while minimising installation time, risk and disruption.

Ambient Range

Standard operating range −30ºC to +35ºC, with solutions available to support applications below -30ºC, subject to custom specification and operating conditions.

For applications below −30ºC, contact our technical team.

Minimise Forklift Strike Risk

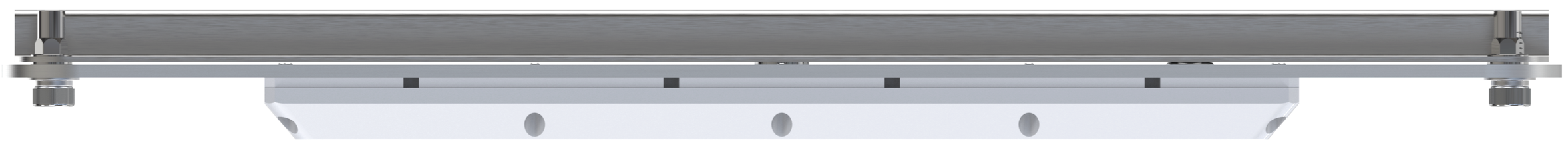

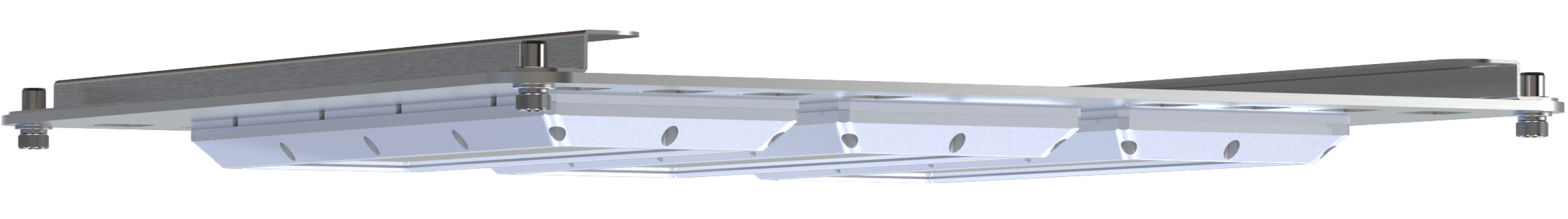

At just 50 mm installed depth, Cryolux sits tight to the ceiling, reducing exposure to forklift masts and high loads in fast-moving cold-store and logistics environments.

Reduces projection into operating space
Minimises forklift strike risk
Ideal above high-level racking and aisles
Protects valuable insulated ceiling systems
Reduces risk of impact-related downtime

Power Options

Options from 60–180 W, delivering 9,000–27,000 lm with a Nominal efficacy rating of: 150 lm/W based on the XE chipset, 5000 K, CRI 85

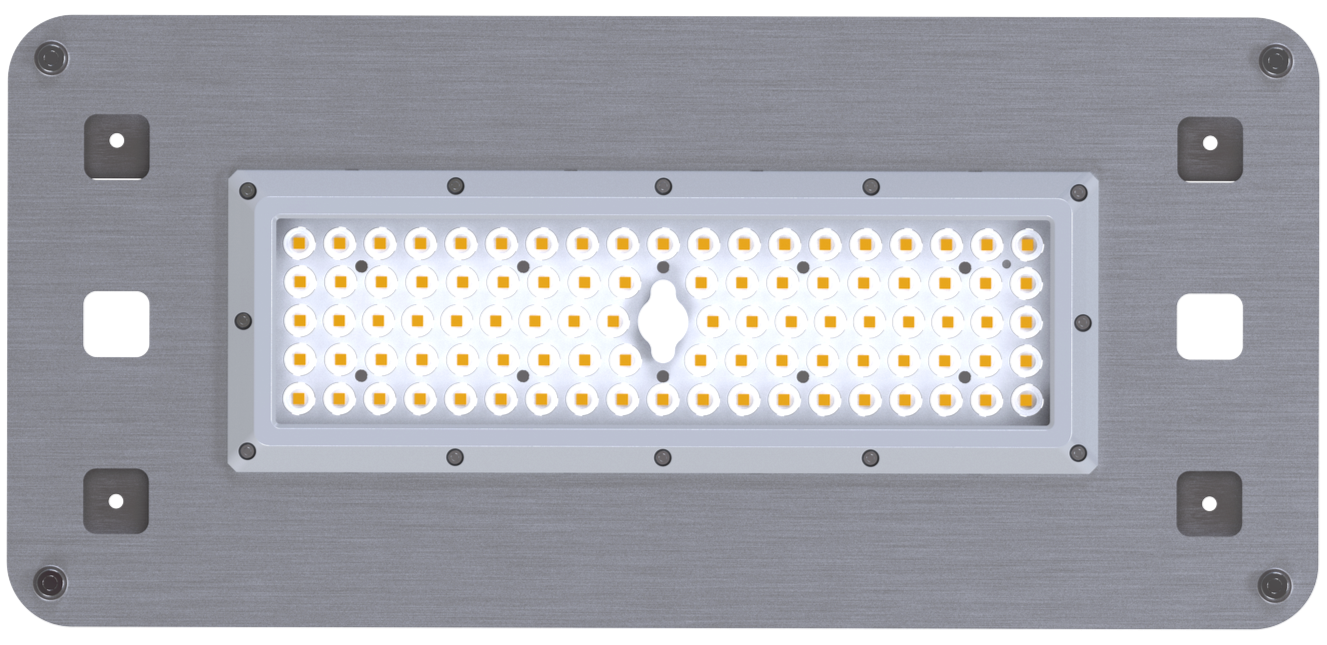

CRX1 – 60W | 9,000lm

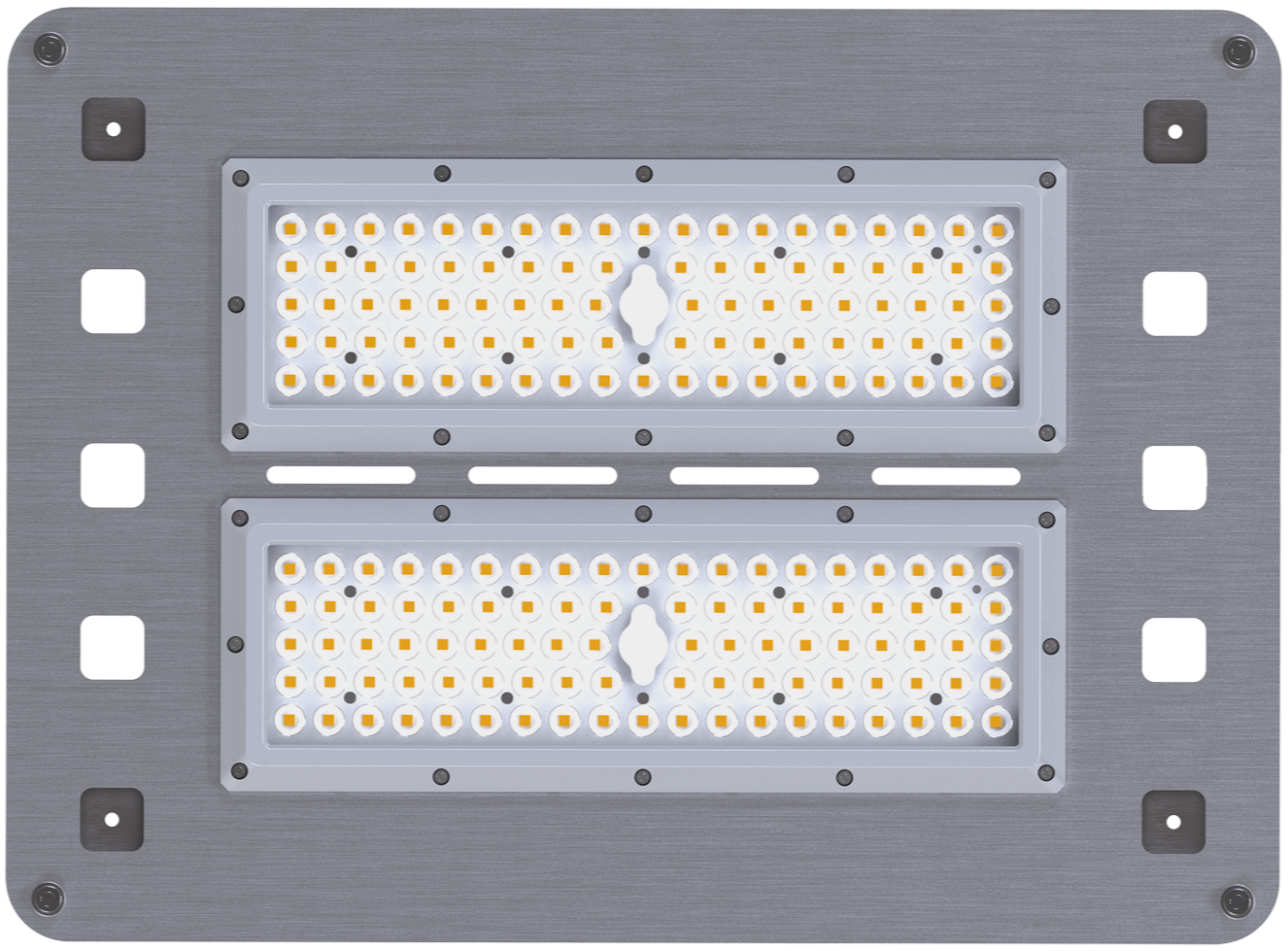

CRX2 – 120W | 18,000lm

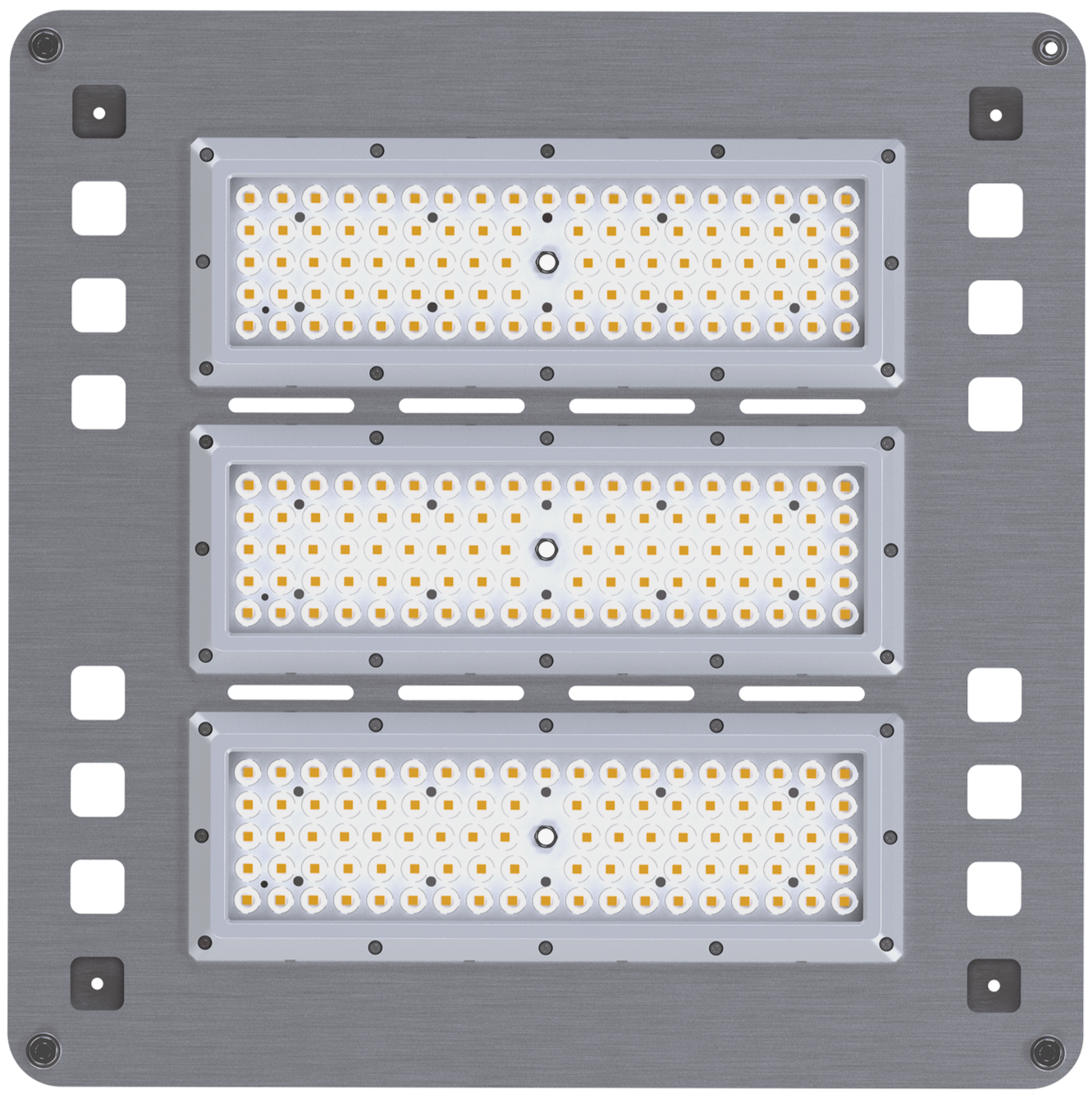

CRX3 – 180W | 27,000lm

Service Life

Minimal lumen depreciation ensures stable lux levels, with set-and-forget reliability backed by a compreshensive ten-year warranty.

L85 > 10 Years 24/7

Isollux XE dual-die LED chipsets are conservatively operated to optimise service life and deliver L80 (B0) >102,000 h at the maximum published standard ambient temperature specified for each model.

Explore how we engineer and validate LED performance

Lighting Controls

Cryolux supports DALI and wireless lighting controls, with control components selected to suit the operating temperature and installation environment.With low-temperature PIR sensor options are available for freezer applications down to −40ºC.

Ingress Protection

IP66 protection against moisture and condensation in cold-store and freezer environments. Sealed and vented construction protects LED components through temperature cycling and changing humidity conditions.

Impact Resistance

Robust CNC plate construction and polycarbonate lenses minimise the risk of damage or contamination from accidental impacts in fast-moving logistics environments.

Vibration Resistance

Potted drivers and robust construction provide vibration resistance for optional machine-mounted applications.

For extreme or high-frequency vibration, contact our technical team.

Remote Driver

The remote SELV potted driver can serve one or multiple luminaires and be mounted above the controlled area, with custom mounting options for beams and purlins. Multiple layers of electrical protection include:

Min IP66 ingress protection
IP67 Screw-Terminal Connection
Flicker-Free Output
Under-Voltage Protection
Over-Voltage Protection
Short-Circuit Protection with auto recovery
Over-Temperature Protection
Wide Input Range 90-305VAC
Surge Protection - DM 6kV, CM 10kV
Driver rated Class 1 & II hazardous environments

Emergency Lighting

Options include 30 W / 90-minute emergency pack, an auxiliary 30 W driver to reduce UPS load, or DALI control to assign selected luminaires to an emergency scene.*

* Battery packs mount close to driver (Min ambient ≥0ºC)

Contact Us for the Full Data Pack

Six Standard Lenses

Three flood and three forward-throw asymmetric lenses provide precise beam control with reduced spill and glare. Asymmetric options allow side mounting in loading areas, directing light away from vehicle operators.

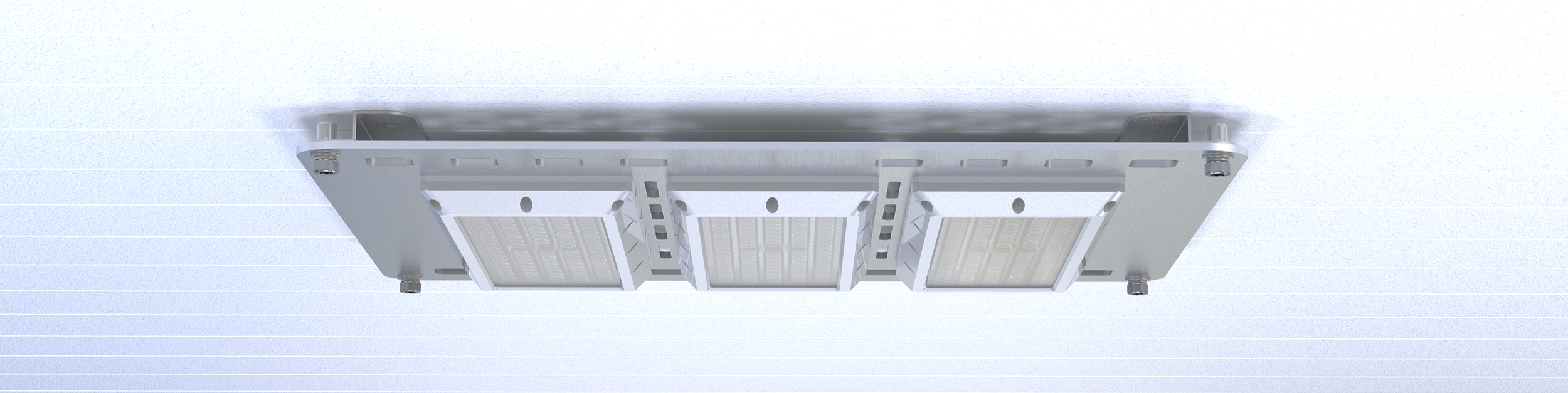

Fast, Accurate Installation to PIR Ceilings

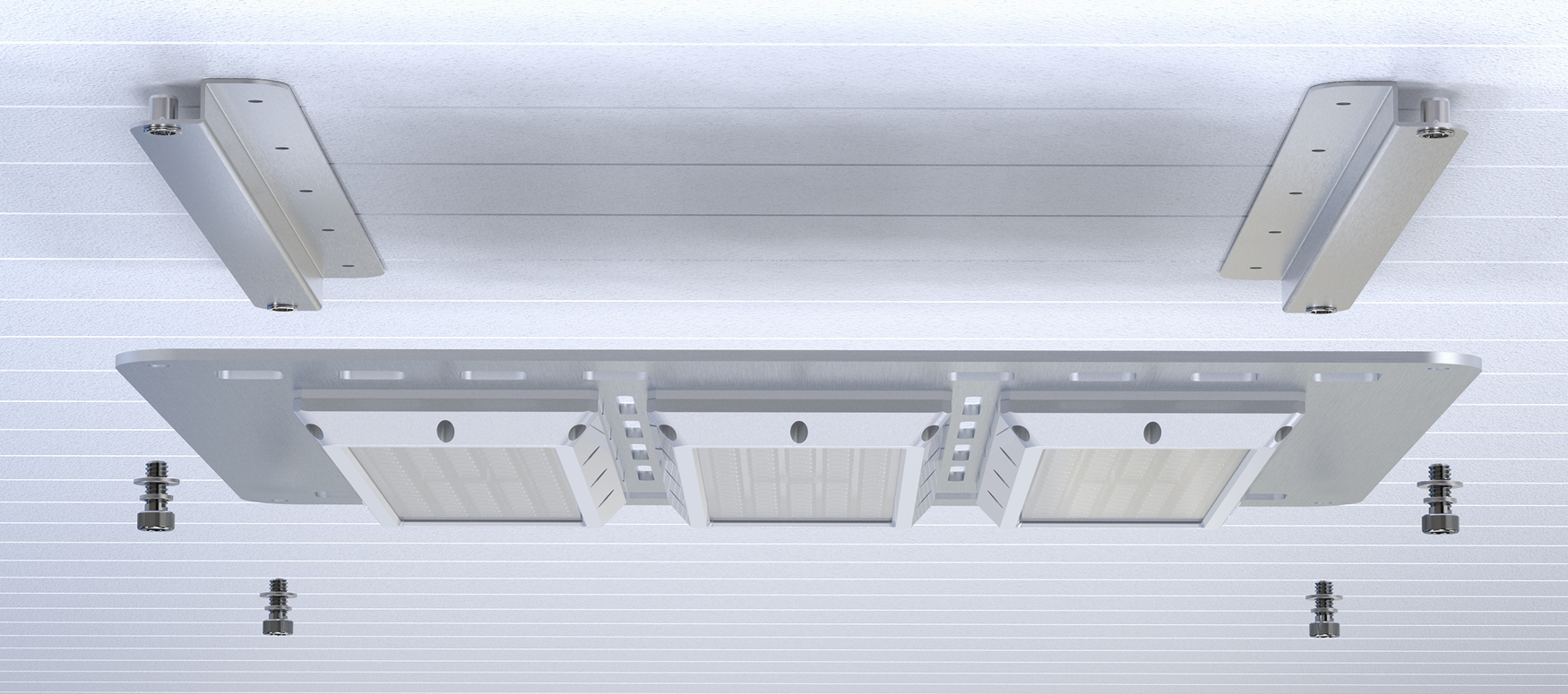

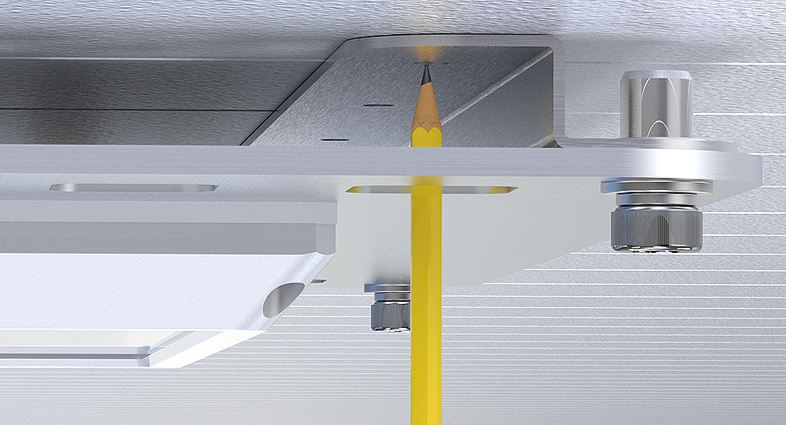

With the brackets attached to the luminaire, through-luminaire marking provides fast, accurate positioning before the brackets are removed and riveted to the insulated PIR ceiling.

The luminaire is then secured with four bolts into captive threaded inserts before connecting to the protected SELV supply via the IP67 connector, delivering a clean, simple and repeatable installation.

Beam or Purlin Mounts

For direct mounting to beams or purlins, U-brackets can be supplied to suit the profile, with an optional driver mount.

Simple Site Upgrades

When upgrading existing surface-mount fittings, the driver can be mounted above the PIR ceiling, with the original cable repurposed as a low-voltage supply and connected directly to Cryolux using the supplied barrel clamp or a low-profile junction box.

Exposed Installations

Where installed beneath metal roofs, canopies or other sun-exposed surfaces, protect the rear of the luminaire from direct contact with, or excessive radiated heat from, the heated surface.
