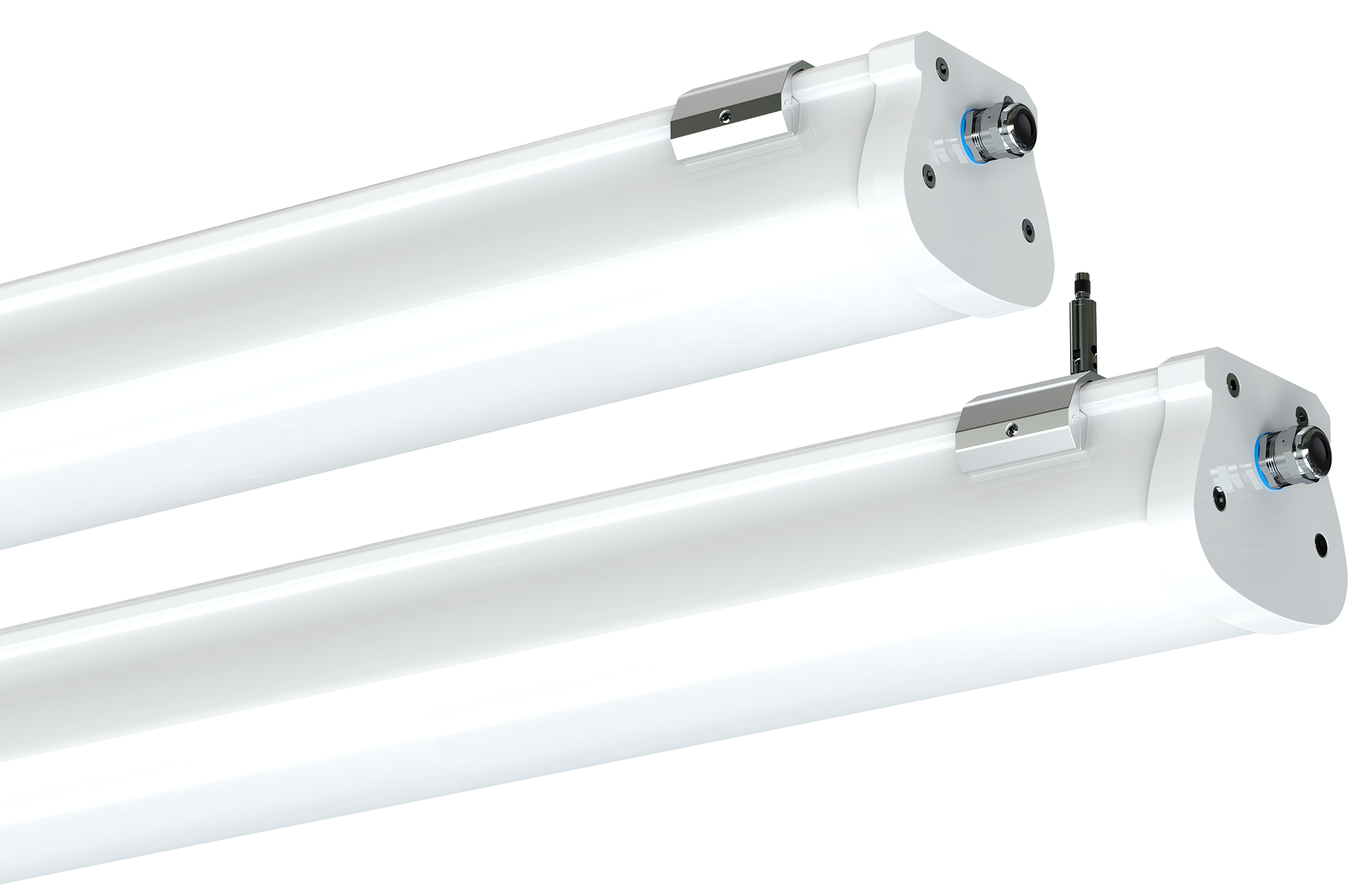

PROLINE | PCX

High-output linear luminaire with IP69K ingress and IK10 impact protection.

Proline PCX takes the familiar linear format well beyond conventional luminaires of similar size and appearance, with extended lengths, standard and high-output options, IP69K ingress protection, IK10 impact resistance and enhanced vandal resistance.

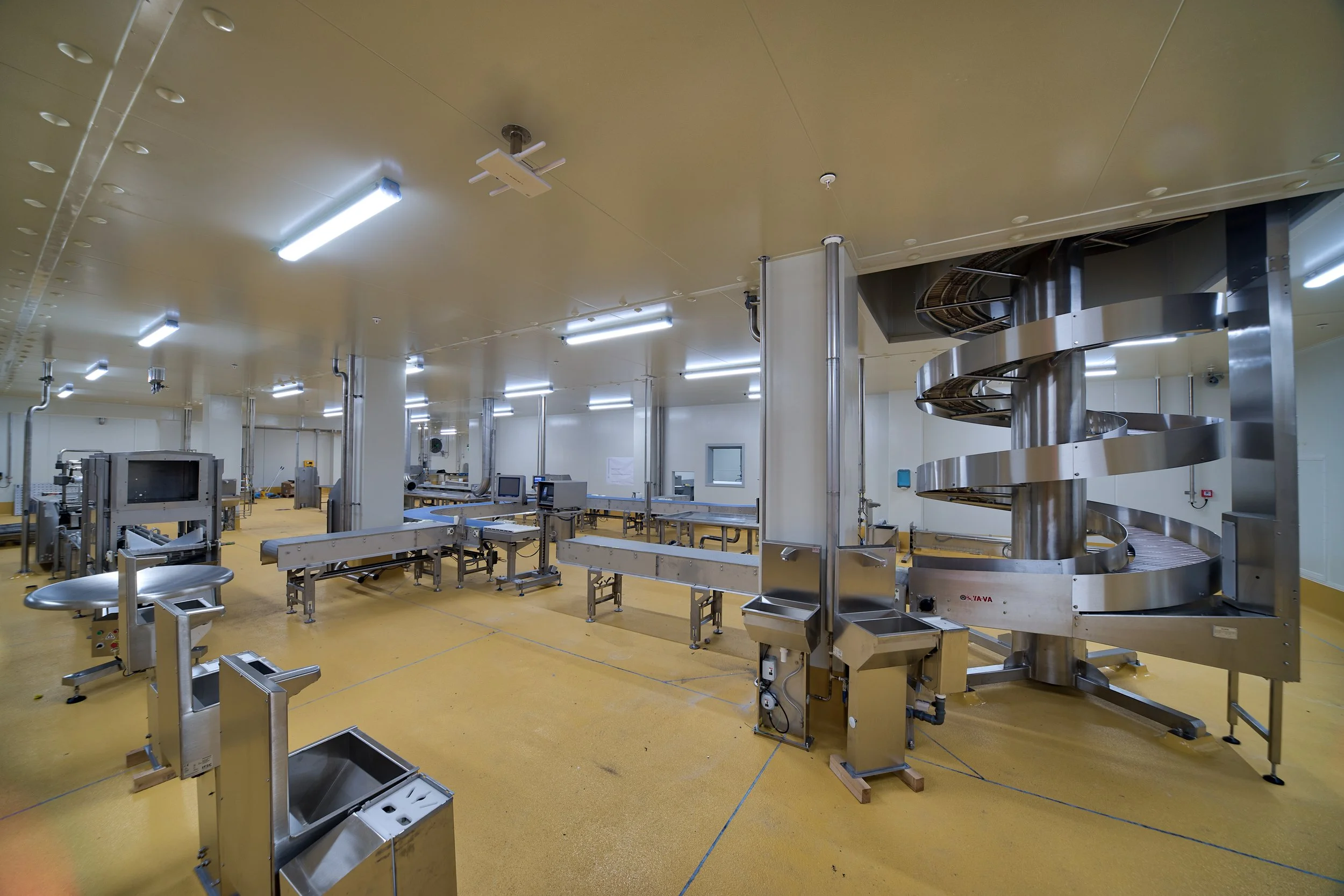

Practical, robust and fully serviceable, PCX is designed for a broad range of industrial, infrastructure and wash-down applications.

Power Options

Proline PCX is available in two standard lengths: 1200mm and 1500mm and a range of standard power options:

40W | 6,400lm
60W | 9,600lm
80W | 12,800lm
100W | 16,000lm
120W | 19,200lm

Efficacy: 160lm/W XE Chipset-CRI 85 5,000K

Refer: Full Power Specifications

Service Life

Minimal lumen depreciation ensures stable lux levels, with set and forget reliability backed by a compreshensive ten-year warranty.

L85 > 10 Years 24/7

Isollux XE dual-die LED chipsets are conservatively operated to optimise service life and deliver L80 (B0) >102,000 h at the maximum published standard ambient temperature specified for each model.

Explore how we engineer and validate LED Performance

High Ambient Performance

Proline is rated for operation up to +50ºC, with standard ambient limits defined according to luminaire length and power. Within these published warranty limits, the LED system is engineered to maintain performance and support the standard service-life expectations.

For ambient temperatures regularly above +35ºC, check the product tables to match power and length to the operating environment, or contact our technical team for support.

UV Resistance

UV-resistant polycarbonate maintains optical clarity and stability in exposed applications.

Extreme Ingress Protection

Proline is rated IP69K and submersion pressure-tested during production. Replacement seals, torque tools and instructions support correct field servicing and maintenance to retain the IP rating.

High Impact Resistance

Proline PCX delivers IK10 impact resistance in standard applications, with a polymer housing that stays tough in the cold to reduce stress cracking.

To add chemical protection refer Proline TPX

Vibration Resistance

Potted drivers and robust construction provide vibration resistance for most machine-mounted applications. Seismic-safe quick-release mounts clamp and lock the luminaire securely in position while allowing straightforward removal for maintenance.

For extreme or high-frequency vibration, contact our technical team.

Fail-Safe Electrical Protection:

PCX is protected inside and out, with IP67 connections, a potted IP65 driver and protected PCB and LEDs providing multiple layers of protection. If the enclosure is breached and water enters the fitting, the protected electrical system supports continued safe operation until planned maintenance can be undertaken.

Short-circuit, over-voltage, under-voltage and over-temperature protection provide additional safeguards against more serious electrical faults.

• Flicker-Free operation
• Under-Voltage Protection
• Over-Voltage Protection
• Short-Circuit Protection with auto recovery
• Over-Temperature Protection
• Wide Input Range 90–305VAC
• Surge Protection - DM 6kV, CM 10kV

Long Term Maintenance

Where accidental damage occurs, individual components can be replaced rather than discarding the complete luminaire.

Lighting Controls

Proline supports wired DALI control for integration with BMS and UPS emergency systems.

Optics

The standard frosted lens creates soft, uniform illumination, reducing harsh shadows around complex machinery. Concealed LEDs reduce glare and after-images around fast-moving equipment, reflective surfaces and cutting tools.

Special-order primary optics support aisle lighting, uplighting and other targeted distributions.

Visual Comfort

Proline offers significantly higher output than luminaires of similar size and appearance. While this can deliver excellent light levels from fewer fittings or at greater mounting heights, care should be taken at lower mounting heights to select the appropriate power and distribution for the task.

Emergency Power Options

Proline can be specified with an integrated self-test emergency battery and inverter, providing 10 W output for 90 minutes on compatible power and ambient configurations.

For central emergency systems, we offer a 10–30 W auxiliary driver to reduce UPS load, or DALI control can assign selected luminaires to an emergency scene.
