Uniform light from
floor to ceiling.
Warehouse and Logistics LED Solutions
Long Term Value
High-performance LED lighting for warehouses, distribution centres and logistics facilities. Engineered for extended service life and minimal lumen depreciation.
Adaptive Optics & Controls
Your operational needs may change. Our adaptive optics and intelligent controls allow the lighting to change with them.
Simplified Installation
Factory pre-configuration of controls and grouping simplifies installation and commissioning, to reduce time and cost.
Proven Reliability
Proven long-term field performance minimises maintenance, disruption and cost throughout the life of the installation.

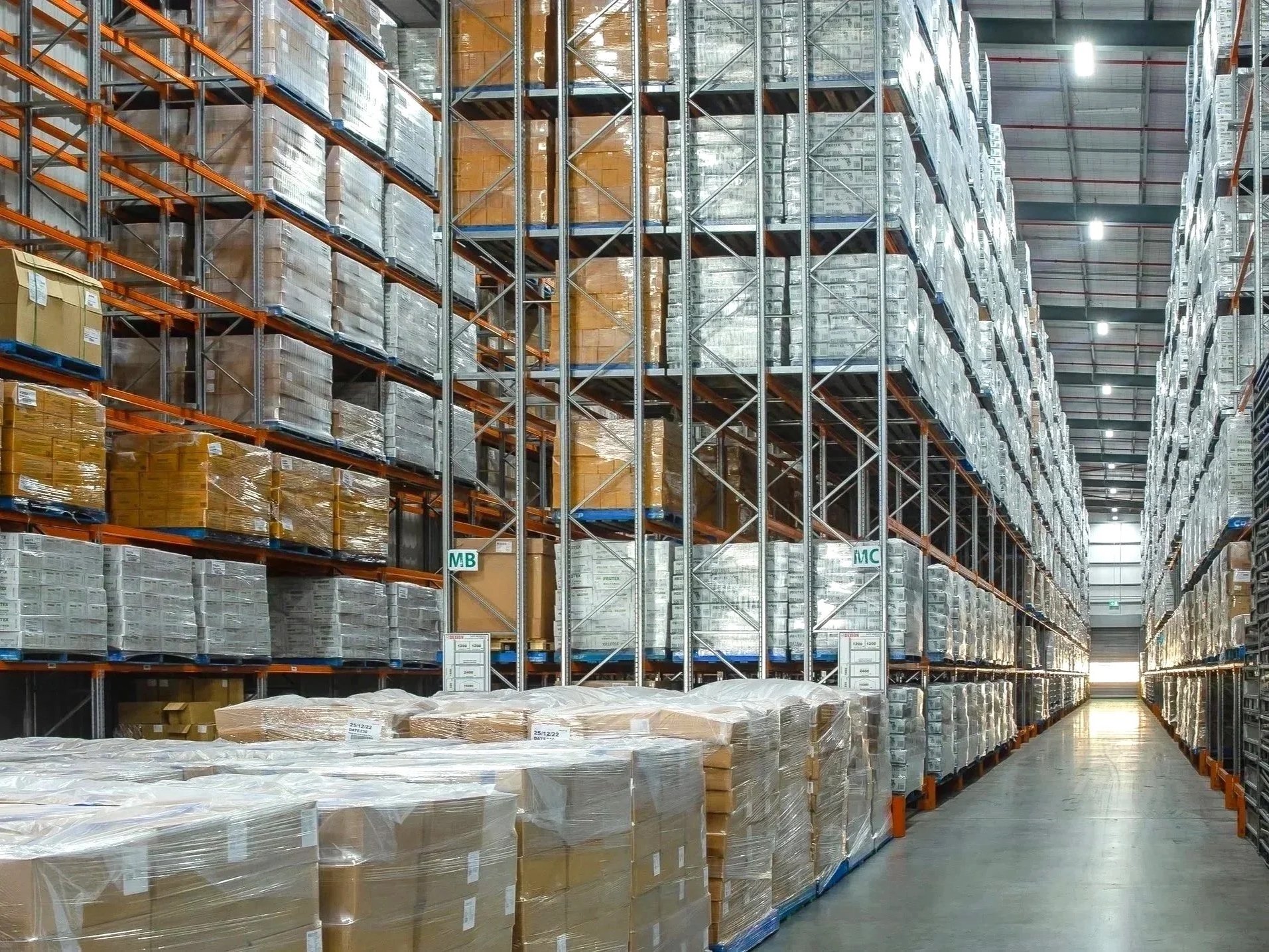

Frutex Pty Ltd. Sydney Australia - PowerBay CMZ5-1500-HE-220W-ZB
Dry store warehouse racking - ZigBee Grouped Occupancy Controls - Completed in 2019.
POWERBAY PB | Specifier Series
PowerBay is a highly scalable industrial lighting system built around a common PowerBar architecture. Select from 1–12 PowerBars, with multiple outputs, optics and mounting configurations to suit the application. A range of standard high-bay configurations simplifies specification, with bespoke options for demanding physical, environmental or performance requirements.
For standard range of surface mount options refer to CM Series
Scalable PowerBar system • Demanding industrial applications • Broad power range • Adaptive or fixed optics • Suspension, wall, ceiling, beam or custom mount
| 20W–840W | |
| 3,400lm to 137,750lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
20W–840W • 3,400lm - 137,750lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +70ºC
(conditions apply)

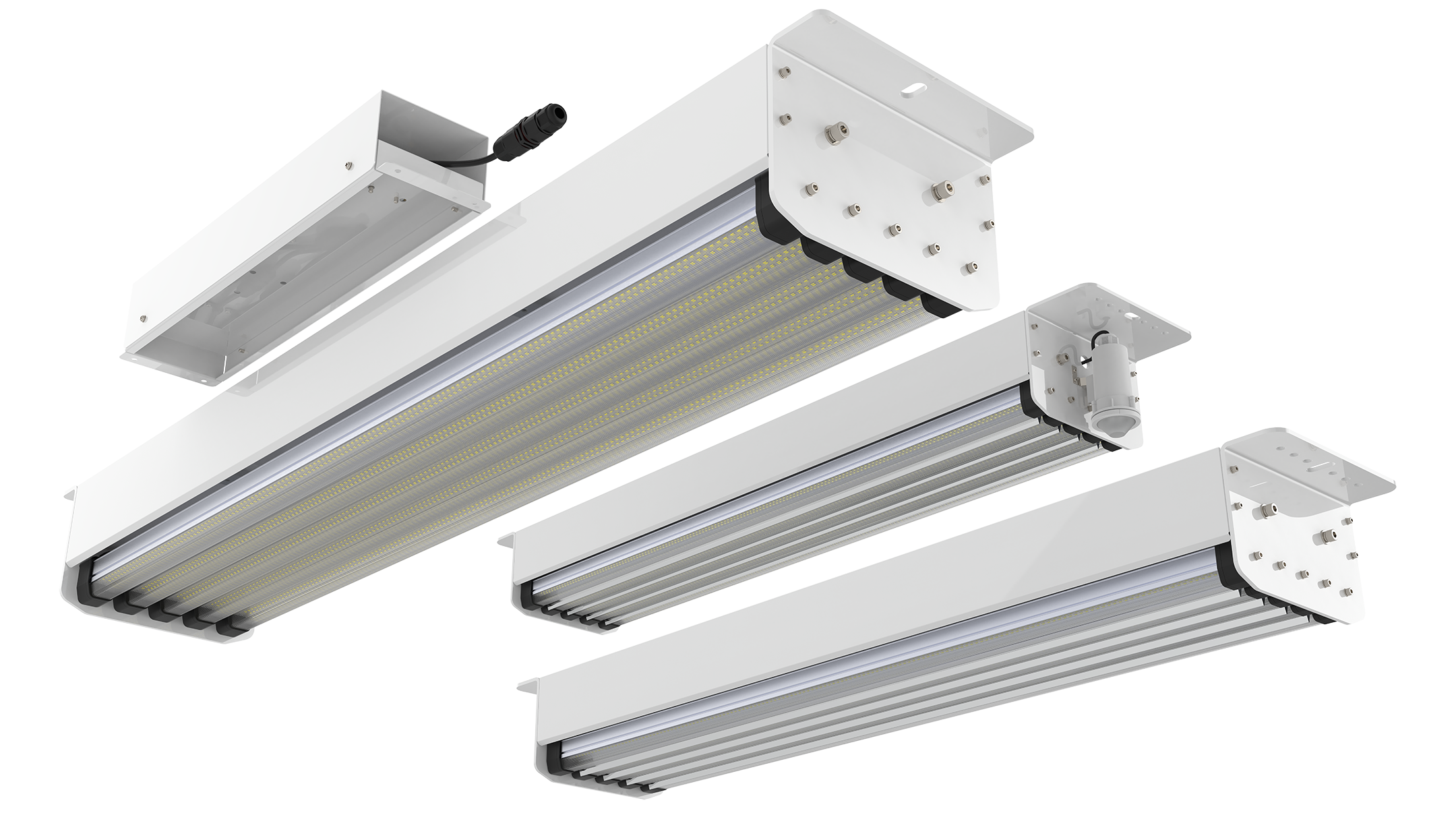

POWERBAY CM | Specifier Series
CMx provides a range of standard surface-mount PowerBay configurations for food processing and industrial applications. Common PowerBar architecture and optics simplify specification, with driver and ambient options for standard, extreme-cold and high-temperature environments.
For full range refer PowerBay Series
Surface-mount PowerBay • Standard to extreme ambient • Food-safe optics • Multiple driver & control options • From blast freezers to milk drying towers
| 64W–350W | |
| 10,500lm to 57,400lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Conditions Apply |
64W–350W • 10,500lm - 57,400lm
Ta: -25ºC to +50ºC
Ta: -30ºC to +70ºC
(conditions apply)
CRYOLUX | Ultra-thin High Bay
Ultra-low-profile luminaire for freezers, cool stores, logistics and sheltered car-park transition areas, with aisle, open-area or asymmetric optics. Minimal headroom • Retrofit or new build • Covers legacy mounting positions • Remote control gear • Maintains vapour barrier in blast freezers • Reduced fork or vehicle-strike risk.
Ultra-low-profile high bay • Freezers • Cool stores • Logistics • Aisle, open-area or asymmetric optics • Reduced fork-strike risk • Easy maintenance & upgrades
| 60W–180W | |
| 9,000lm – 27,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
60W–180W • 9,000lm - 27,000lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
PROLINE | PCX
Linear low bay in standard luminaire lengths, designed for food production and industrial applications. IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting to virtually any surface.
For high chemical resistance, refer to Proline TPX
Linear low bay • Food • Industrial • IP69K high-pressure hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mount
| 10W–150W | |
| 1,650lm to 23,550lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 23,550lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +50ºC
conditions apply
AirBay Series | Architectural High Bay
High-output architectural high bay for commercial, retail and light-industrial applications, combining efficiency, uniform illumination and refined aesthetics. Wide distribution eliminates scalloping on graphic panels and perimeter walls • High colour rendering • Anodised finish options • Black or white end caps • Serviceable sliding gear tray • Easy sensor integration • Fine-wire suspension.
High bay • Commercial • Retail • Light industrial • Uniform graphic-panel illumination without scalloping • Multiple control & sensor options
| 120W–160W | |
| 19,800lm – 26,400lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| 0ºC to +50ºC | |
| Standard Ambient Range |
120W–160W • 19,800lm - 26,400lm
Ta: 0ºC to +50ºC
