Protection Against Harsh Environments.
Built to survive the demands of daily hygiene cycles and sanitation.
IP69K & IK10+ | Optional Chemical Resistance
Luminaires for demanding environments, including daily high-pressure hot-water wash-down. Safe operation from −30°C to +50°C, with optional protection against sanitisers and quaternary cleaners.
Mounting & Installation
High-output linear LED solutions with machine, surface, seismic-safe and vandal-resistant mounting options, plus custom recessed enclosures up to 320 W.
Field Serviceable
Replace damaged components in the field, with quick-fit connections and mounting systems helping keep lighting operational in remote and demanding environments.
Long-Term Performance
Minimal lumen depreciation and proven reliability in harsh commercial environments, with products supported by warranties of up to 10 years.

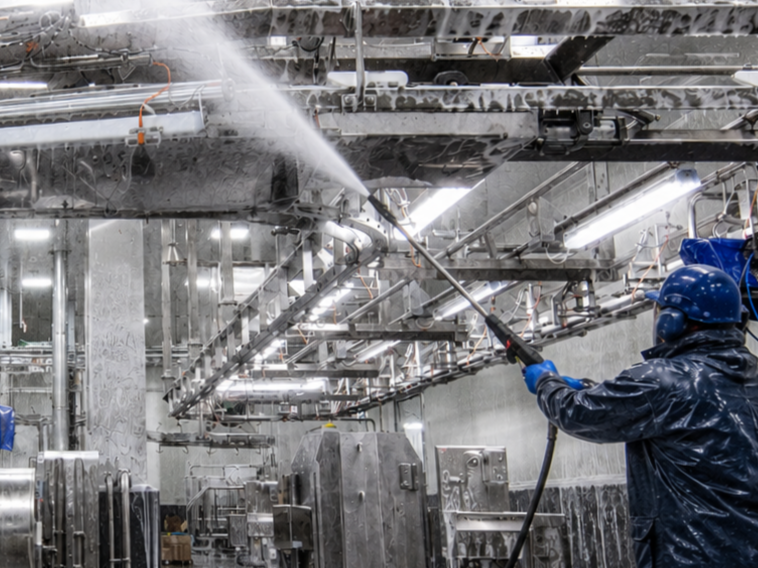

AMP Auckland Meat Packers • Proline TPX-1500-XE-60W-ND
Specified throughout the processing facilities TPX offers extreme, impact, ingress and chemical protection.
PROLINE | TPX
Food-grade linear low bay developed for aggressive cleaning and chemical environments in food processing and industrial applications, without steam or excessive humidity. High resistance to sanitisers and cleaning chemicals • IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting.
Where chemical resistance is not required refer to Proline PCX
Food-grade low bay • Aggressive chemicals & sanitisers • IP69K hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mounting
| 10W–150W | |
| 1,650lm to 24,750lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 24,750lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +50ºC
(special conditions apply)
PROLINE | PCX
Linear low bay in standard luminaire lengths, designed for food production and industrial applications. IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting to virtually any surface.
For high chemical resistance, refer to Proline TPX
Linear low bay • Food • Industrial • IP69K high-pressure hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mount
| 10W–150W | |
| 1,650lm to 23,550lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 23,550lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +50ºC
conditions apply
PROLINE | PV3
Hygienic LED luminaire developed for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Designed for demanding food processing and industrial applications, with IP69K protection for high-pressure hot-water wash-down and four individually configurable DIP LED arrays for 360° or targeted illumination.
For chemical resistance without steam or excessive humidity Proline TPX
Hygienic Steam CIP • Aggressive chemicals • High-temperature food processing • IP69K hot-water wash-down • IK10 • Remote drivers • 360° or targeted illumination
| 20W–60W | |
| 2,760lm to 8,200lm | L85> 10 Years 24/7 |
| Up to 138lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| 500+ Steam CIP Cycles | Special Conditions Apply |
20W–60W • 2,760lm - 8,200lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
SABRE | Steam & Chemical High Bay
Hygienic high bay for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Recessed or surface-mounted • Walk-safe options • Custom sizes and configurations • Optional M1 lenses • Austenitic stainless-steel options • Food processing and industrial applications.
Hygienic high bay • Steam CIP • Aggressive chemicals • Hydrolytic & extreme environments • Recessed or surface mount • Custom sizes • Austenitic steel options
| 120W–320W | |
| 20,400lm – 54,400lm | L85> 10 Years 24/7 |
| Up to 170lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
120W–320W • 20,400lm - 54,400lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
