Our Highest Protection Built to Thrive & Survive.
Ultimate LED solutions extreme conditions.
Beyond Standard Wash-Down
Food safe specialist LED solutions for environments exposed to steam, aggressive chemicals, high temperature application and repeated high-temperature wash-down and CIP cycles.
Application-Specific Protection
PV3, Proline TPX and Sabre provide different levels of protection against thermal shock, vibration, chemicals, steam, extreme humidity and hydrolysis, supported by experienced advice for precise specification.
Long-Term Maintainability
Serviceable designs and replaceable components simplify maintenance and minimise lighting-related disruption in demanding production environments.

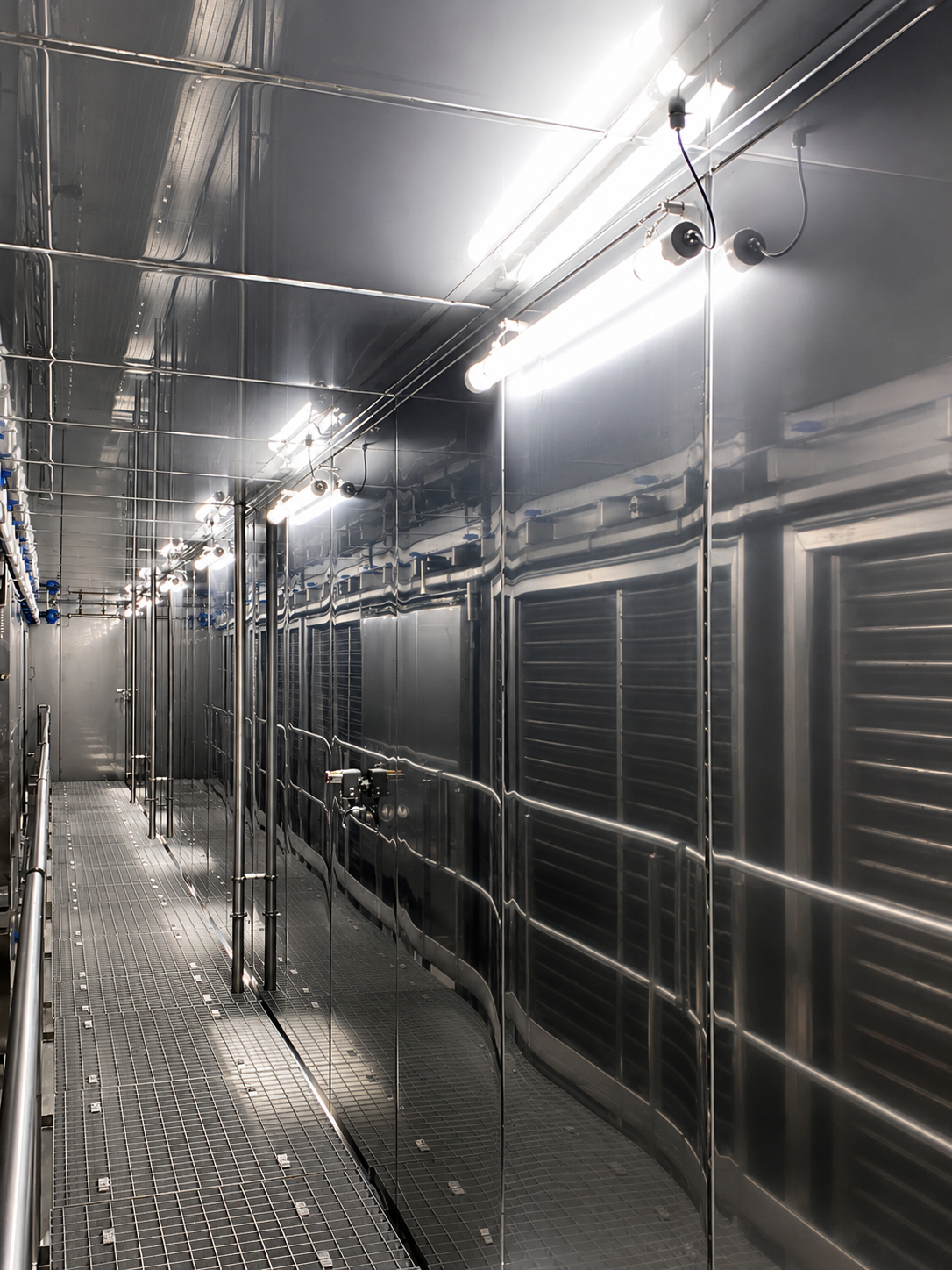

Steam CIP tunnel • PV3-M1 • Fryer to freezer tunnel.
Specified by Next Gen LED for SKT Belgium - Fully Automated continuous production from -30º to +70ºC

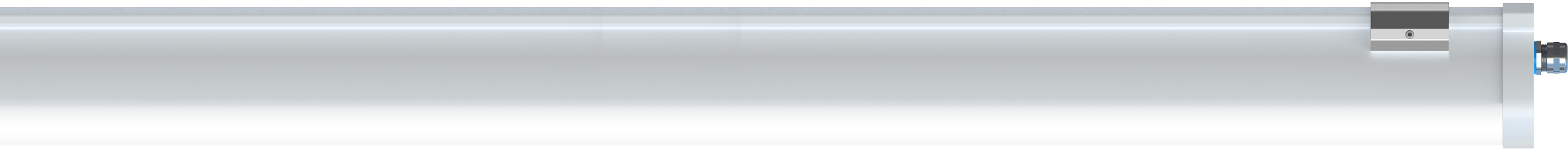

PROLINE | TPX
Food-grade linear low bay developed for aggressive cleaning and chemical environments in food processing and industrial applications, without steam or excessive humidity. High resistance to sanitisers and cleaning chemicals • IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting.
Where chemical resistance is not required refer to Proline PCX
Food-grade low bay • Aggressive chemicals & sanitisers • IP69K hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mounting
| 10W–150W | |
| 1,650lm to 24,750lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 24,750lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +50ºC
(special conditions apply)

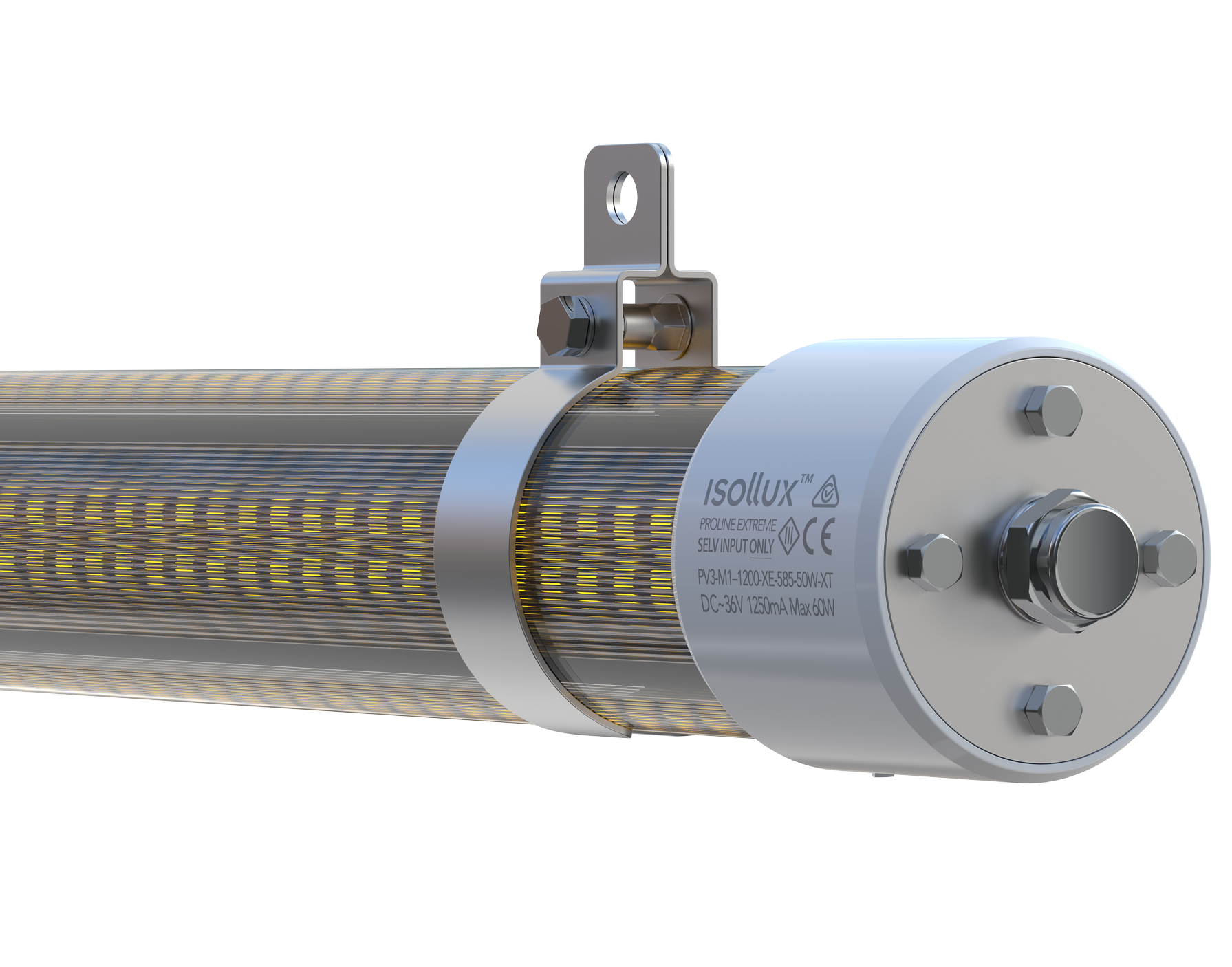

PROLINE | PV3
Hygienic LED luminaire developed for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Designed for demanding food processing and industrial applications, with IP69K protection for high-pressure hot-water wash-down and four individually configurable DIP LED arrays for 360° or targeted illumination.
For chemical resistance without steam or excessive humidity Proline TPX
Hygienic Steam CIP • Aggressive chemicals • High-temperature food processing • IP69K hot-water wash-down • IK10 • Remote drivers • 360° or targeted illumination
| 20W–60W | |
| 2,760lm to 8,200lm | L85> 10 Years 24/7 |
| Up to 138lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| 500+ Steam CIP Cycles | Special Conditions Apply |
20W–60W • 2,760lm - 8,200lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)

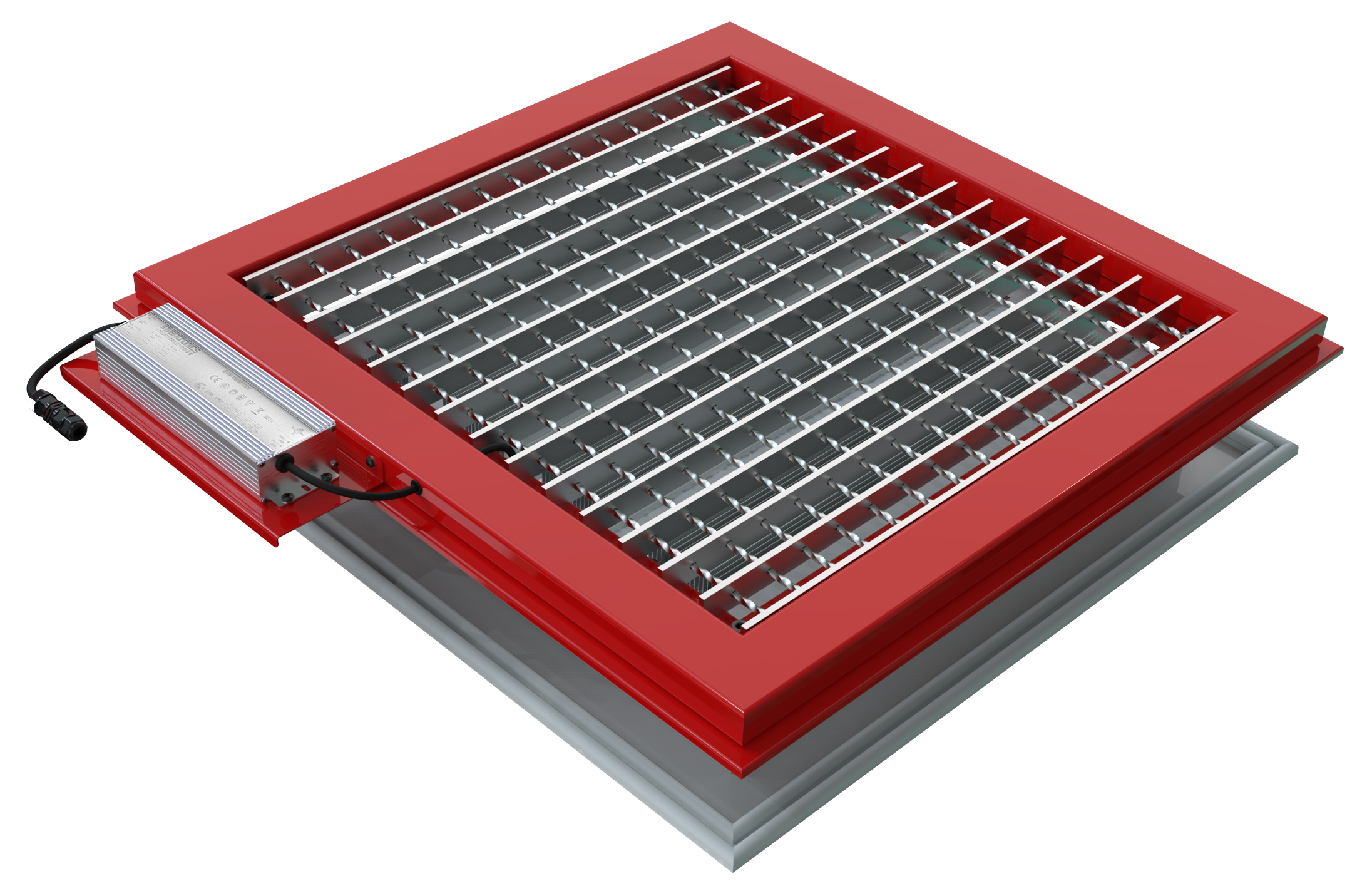

SABRE | Steam & Chemical High Bay
Hygienic high bay for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Recessed or surface-mounted • Walk-safe options • Custom sizes and configurations • Optional M1 lenses • Austenitic stainless-steel options • Food processing and industrial applications.
Hygienic high bay • Steam CIP • Aggressive chemicals • Hydrolytic & extreme environments • Recessed or surface mount • Custom sizes • Austenitic steel options
| 120W–320W | |
| 20,400lm – 54,400lm | L85> 10 Years 24/7 |
| Up to 170lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
120W–320W • 20,400lm - 54,400lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
CRYOLUX | Ultra-thin High Bay
Ultra-low-profile luminaire for freezers, cool stores, logistics and sheltered car-park transition areas, with aisle, open-area or asymmetric optics. Minimal headroom • Retrofit or new build • Covers legacy mounting positions • Remote control gear • Maintains vapour barrier in blast freezers • Reduced fork or vehicle-strike risk.
Ultra-low-profile high bay • Freezers • Cool stores • Logistics • Aisle, open-area or asymmetric optics • Reduced fork-strike risk • Easy maintenance & upgrades
| 60W–180W | |
| 9,000lm – 27,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
60W–180W • 9,000lm - 27,000lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
