Reliable LED Lighting Below Zero.
Cold Chain Logistics
Engineered for the Cold
LED lighting engineered for reliable long-term operation in cold stores, blast freezers, ELA and temperature-controlled facilities.
Application-Specific Solutions
Recessed, surface-mounted, linear and ultra-low-profile solutions with precision optics provide uniform, low-glare illumination across diverse cold-chain environments.
Controls & Installation
Factory-configured controls and pre-grouping simplify installation and commissioning, with installation options designed to protect insulated vapour barriers.
Simplified Maintenance
Long service life and remote-driver options simplify maintenance where freezing temperatures and restricted access make every intervention difficult.

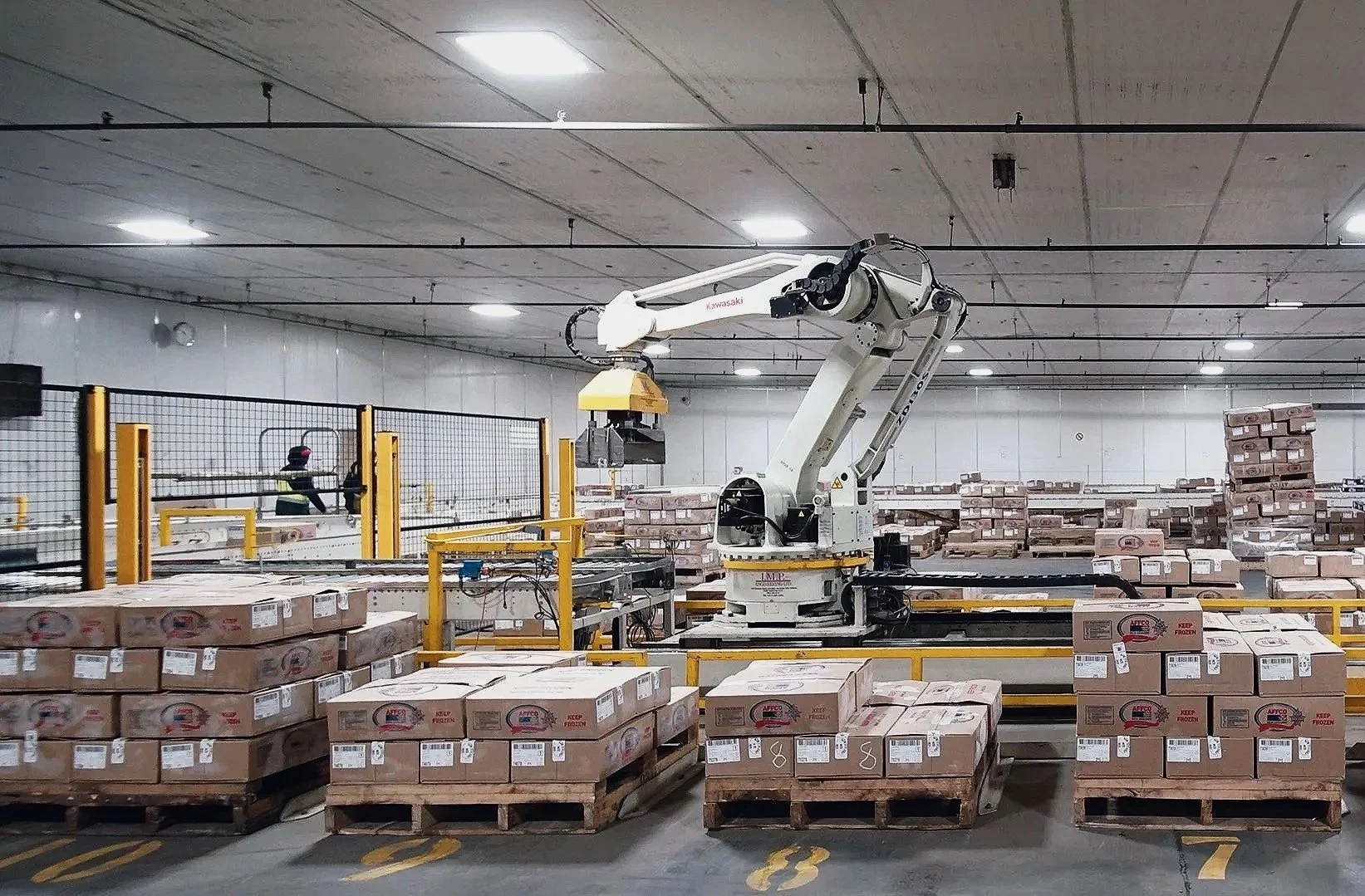

AFFCO NEW ZEALAND - Maintenance Free Solution Since 2015
Automated Cold Storage Packaging ELA and Distribution Centre - Product Specified - Soffito SFO (Recessed into PIR)
POWERBAY CM | Specifier Series
CMx provides a range of standard surface-mount PowerBay configurations for food processing and industrial applications. Common PowerBar architecture and optics simplify specification, with driver and ambient options for standard, extreme-cold and high-temperature environments.
For full range refer PowerBay Series
Surface-mount PowerBay • Standard to extreme ambient • Food-safe optics • Multiple driver & control options • From blast freezers to milk drying towers
| 64W–350W | |
| 10,500lm to 57,400lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Conditions Apply |
64W–350W • 10,500lm - 57,400lm
Ta: -25ºC to +50ºC
Ta: -30ºC to +70ºC
(conditions apply)
PROLINE | TPX
Food-grade linear low bay developed for aggressive cleaning and chemical environments in food processing and industrial applications, without steam or excessive humidity. High resistance to sanitisers and cleaning chemicals • IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting.
Where chemical resistance is not required refer to Proline PCX
Food-grade low bay • Aggressive chemicals & sanitisers • IP69K hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mounting
| 10W–150W | |
| 1,650lm to 24,750lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 24,750lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +50ºC
(special conditions apply)
SOFFITO | SFO
Recessed or surface-mount LED high bay for food processing and cleanrooms. Sealed hygienic construction delivers low glare at high lux levels, with multiple installation kits. Fully serviceable without breaking the hygiene seal below.
Hygienic high bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 100W–180W | |
| 15,200 to 27,360lm | L85> 10 Years 24/7 |
| Up to 152lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
100W–180W • 15,200lm - 27,360lm
Ta: -25ºC to +50ºC
Subject to Installation
SOFFITO | SLP
Fully sealed linear LED low/mid bay for food processing, laboratories and cleanrooms. High-density LED arrays provide low glare at high output and uniform appearance at lower power levels. Serviceable from above without breaking the hygiene seal to the production area below.
Hygienic low/mid bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 40W–150W | |
| 6,000lm to 22,500lm | L85> 10 Years 24/7 |
| Up to 150lm/W @CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
40W–150W • 6,000lm - 22,500lm
Ta: -25ºC to +50ºC
Subject to Installation
CRYOLUX | Ultra-thin High Bay
Ultra-low-profile luminaire for freezers, cool stores, logistics and sheltered car-park transition areas, with aisle, open-area or asymmetric optics. Minimal headroom • Retrofit or new build • Covers legacy mounting positions • Remote control gear • Maintains vapour barrier in blast freezers • Reduced fork or vehicle-strike risk.
Ultra-low-profile high bay • Freezers • Cool stores • Logistics • Aisle, open-area or asymmetric optics • Reduced fork-strike risk • Easy maintenance & upgrades
| 60W–180W | |
| 9,000lm – 27,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
60W–180W • 9,000lm - 27,000lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
POWERBAY PB | Specifier Series
PowerBay is a highly scalable industrial lighting system built around a common PowerBar architecture. Select from 1–12 PowerBars, with multiple outputs, optics and mounting configurations to suit the application. A range of standard high-bay configurations simplifies specification, with bespoke options for demanding physical, environmental or performance requirements.
For standard range of surface mount options refer to CM Series
Scalable PowerBar system • Demanding industrial applications • Broad power range • Adaptive or fixed optics • Suspension, wall, ceiling, beam or custom mount
| 20W–840W | |
| 3,400lm to 137,750lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
20W–840W • 3,400lm - 137,750lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +70ºC
(conditions apply)
