Uniform precision. Delivered at Distance.

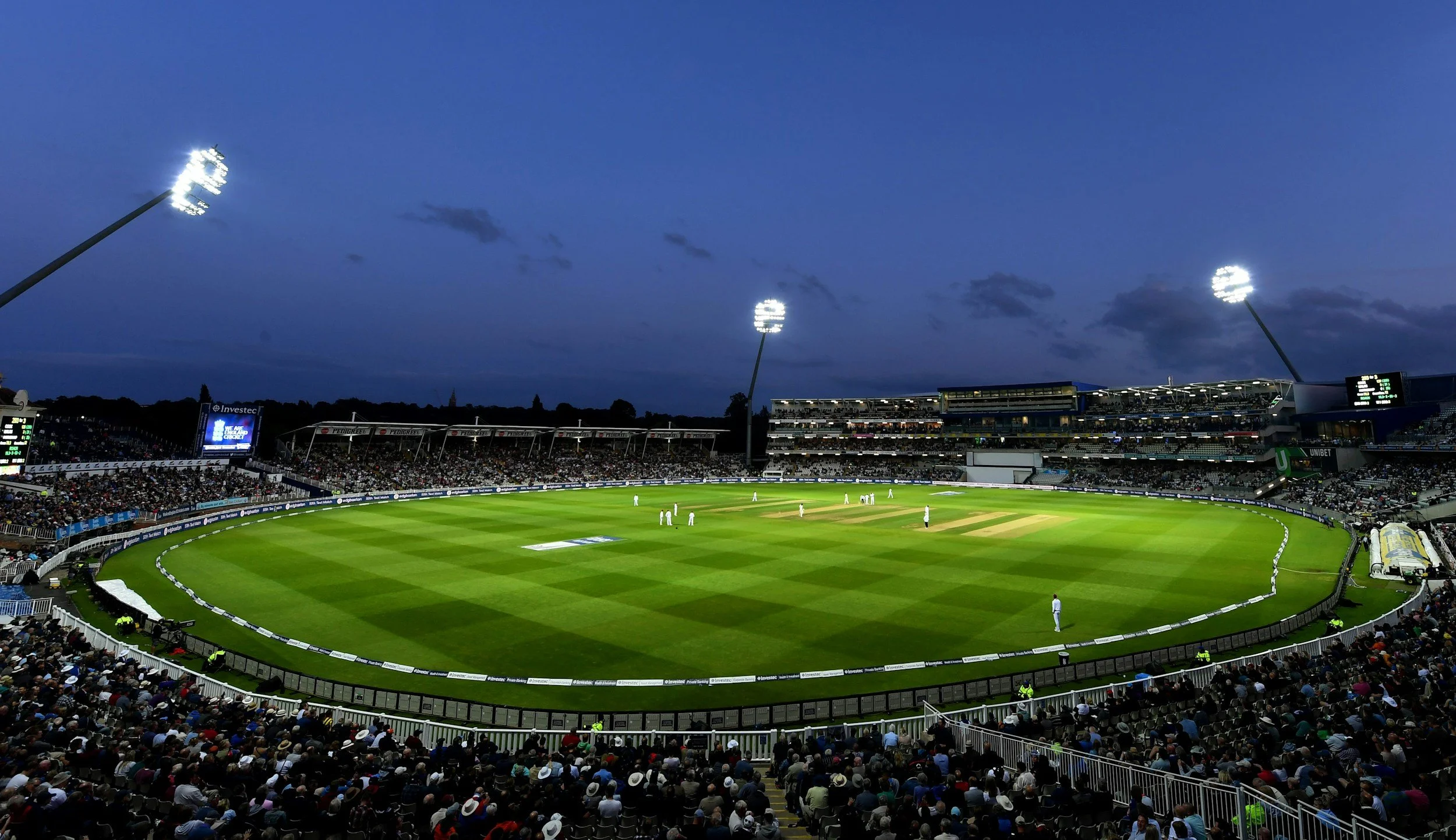

Area & Sports Floodlighting
Power & Precision
Vixen and Viper high-output modular floodlights combine precision optics with scalable power to deliver and maintain lux levels across wide areas.
Optics & Targeting
Multiple beam distributions, independently adjustable modules and precision targeting provide control over coverage, uniformity and spill light.
Application-Specific Performance
Configurable power, mounting and driver options provide solutions for sports facilities, high-mast areas, security solutions for correctional facilities and large exterior applications including hanger aprons.
Long-Term Reliability
Conservative component operation, thermal management and remote-driver options support long service life while reducing maintenance in difficult-to-access installations.
Isollux Viper Provides Combines forward Throw Optics with symmetrical or asymmetrical lens.
Accurate targeting with DALI or DMX controls up to 300m from the LED light engine for easy maintenance.

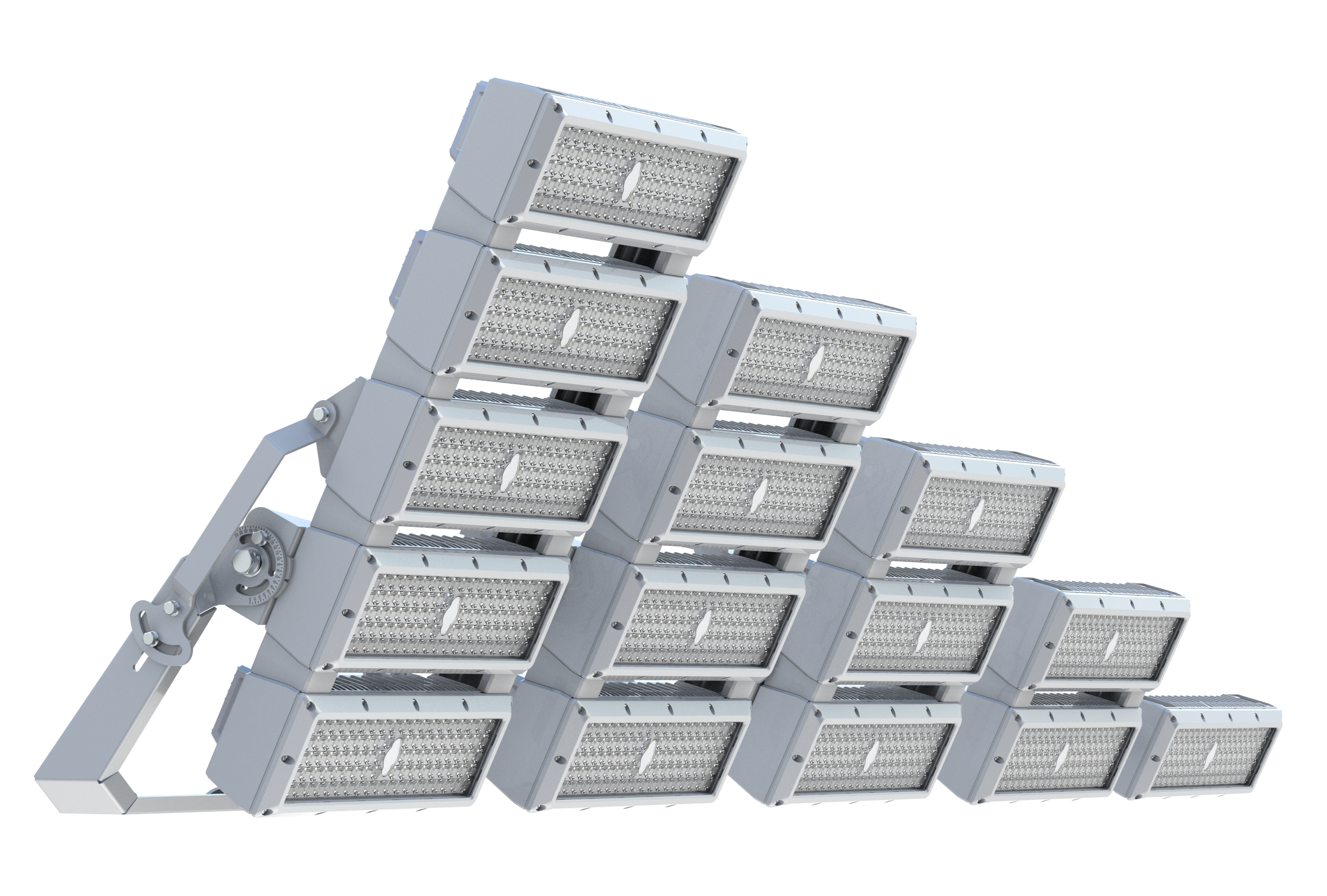

VIPER | Forward-Throw Area Floodlight
Modular floodlight for sports, high-mast, security and infrastructure applications where glare and spill-light control are critical. Precision narrow beam and forward-throw asymmetric optics • Low-glare options • Residential boundary control • Salt-spray tested • Multiple lens and control options • Remote driver options.
Meets CASA Guideline 5.1.4 (Zone A)
Modular floodlight • High-mast • Sports • Security • Independently targeted modules • Multiple lens & control options • Remote driver options • CASA Zone A
| 180W–1250W | |
| Module rating subject to duty cycle | |
| 28,000lm – 195,000lm | L85> 10 Years 14/7 |
| Up to 156lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +35ºC | |
| Standard Ambient Range |
180W–1250W • 28,000lm - 195,000lm
Ta: -25ºC to +35ºC

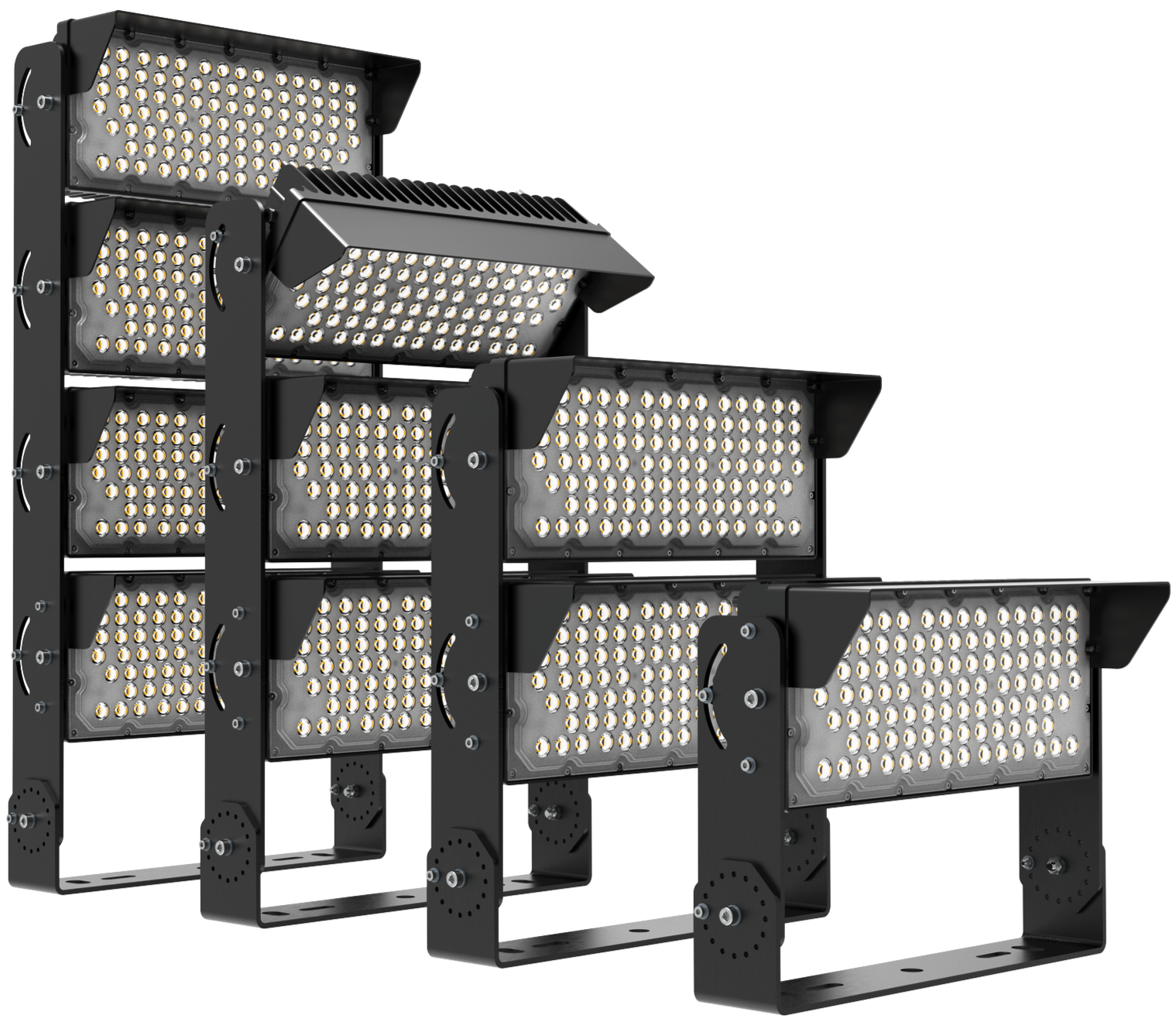

VIXEN | Long-Throw Area Floodlight
Modular high-output floodlight for high-mast, sports, security and infrastructure applications requiring greater power and projection distance. Independently targeted modules • Precision narrow-beam and long-throw optics • Mixed beam combinations • Scalable output • Remote driver options • Salt-spray tested.
Modular floodlight • High-mast • Sports • Security • Independently targeted modules • Multiple lens combinations • Scalable output • Remote driver options.
| 180W–1000W | |
| Module power subject to ambient | |
| 27,000lm – 150,000lm | L85> 10 Years 14/7 |
| Up to 150lm/W @ CRI85 | L80 (B0) > 60,000Hrs |
| -25ºC to +35ºC | -40ºC to +70ºC |
| Standard Ambient Range | Conditions Apply |
180W–1000W • 27,000lm - 150,000lm
Ta: -25ºC to +35ºC
Ta: -40ºC to +70ºC
(conditions apply)

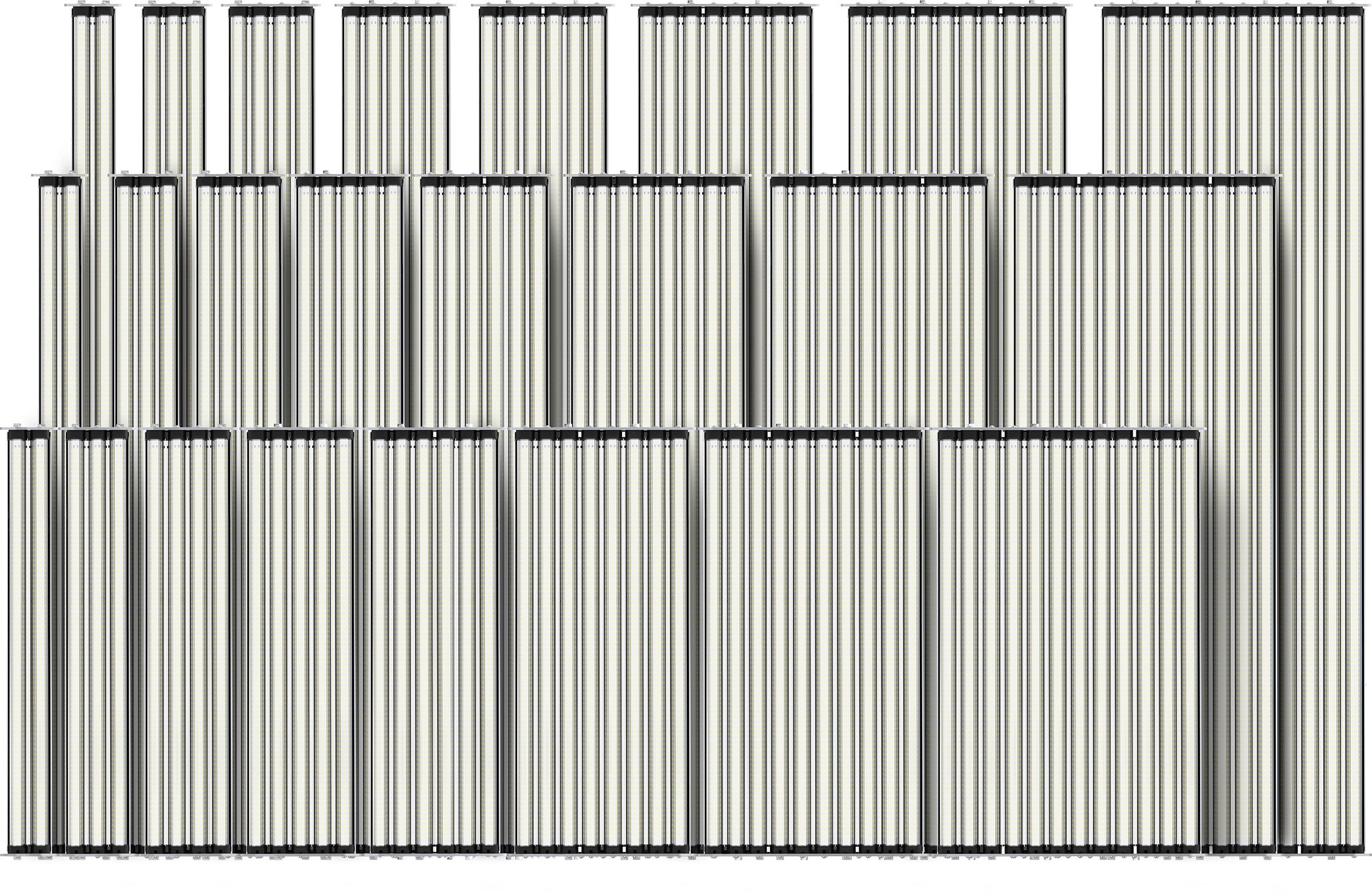

POWERBAY PB | Specifier Series
PowerBay is a highly scalable industrial lighting system built around a common PowerBar architecture. Select from 1–12 PowerBars, with multiple outputs, optics and mounting configurations to suit the application. A range of standard high-bay configurations simplifies specification, with bespoke options for demanding physical, environmental or performance requirements.
For standard range of surface mount options refer to CM Series
Scalable PowerBar system • Demanding industrial applications • Broad power range • Adaptive or fixed optics • Suspension, wall, ceiling, beam or custom mount
| 20W–840W | |
| 3,400lm to 137,750lm | L85> 10 Years 24/7 |
| Up to 172lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +40ºC | -30ºC to +70ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
20W–840W • 3,400lm - 137,750lm
Ta: -25ºC to +40ºC
Ta: -40ºC to +70ºC
(conditions apply)
