Hermetic Solutions for Critical Hygiene.
Cleanroom Manufacturing
Safe Production Environments
Hermetic lighting solutions engineered to maintain pressure integrity and support contamination control in critical manufacturing environments.
Wet & Dry Seals
Options that integrate with different ceiling systems, with smooth surfaces and ingress protection, and flush detailing for optimised hygiene.
Application-Specific Light
High colour rendering for inspection and quality control, with restricted-spectrum and programmable options for specialist manufacturing processes.
Service Without Disruption
Serviceable designs allow maintenance from outside the controlled environment where applicable, preserving the room-side seal and reducing operational disruption.

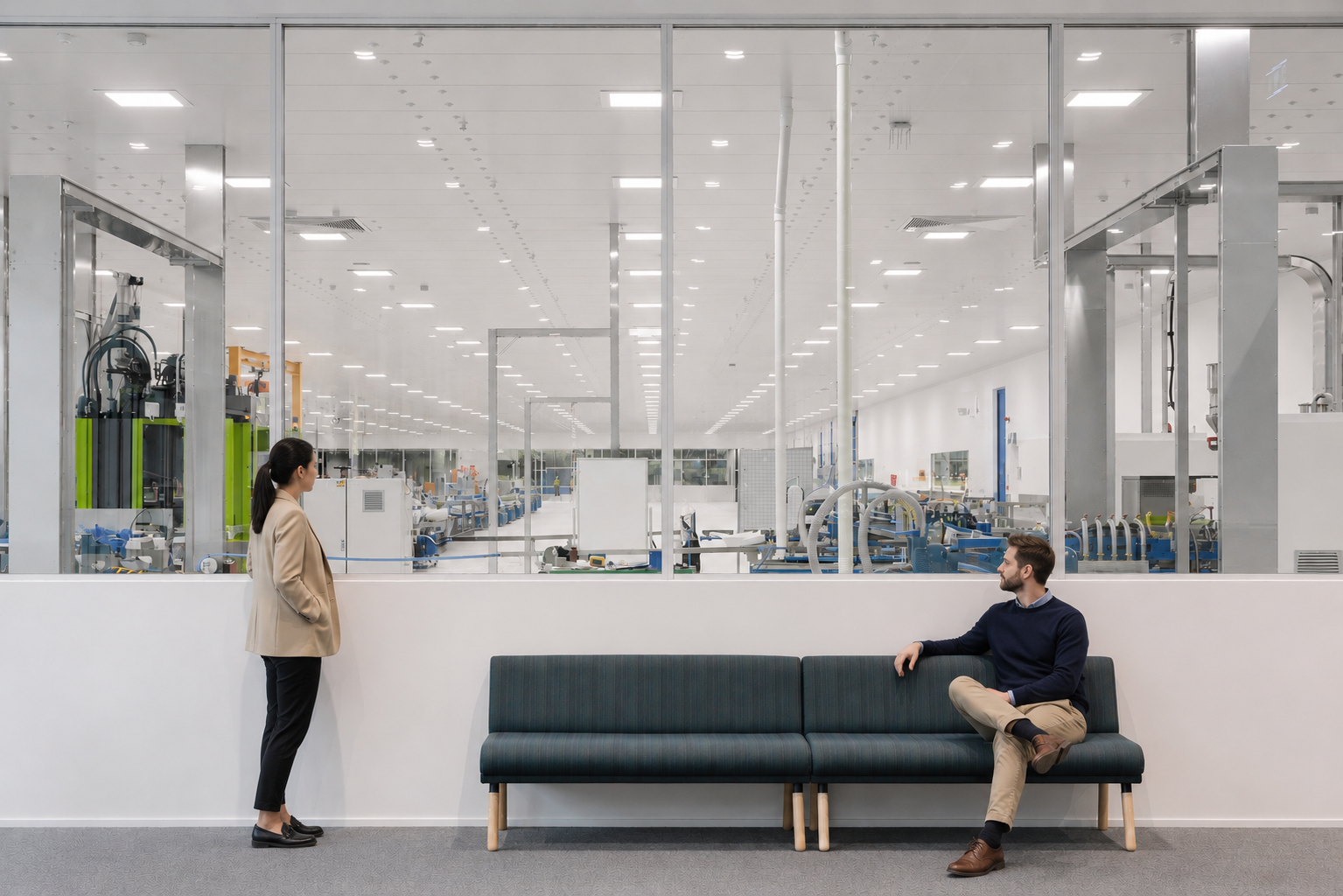

Fisher & Paykel Healthcare • Research & Manufacturing Facility • Soffito SLP-100W-DALI
5 Star Green Star , specified by WSP, completed 2020.
SOFFITO | SFO
Recessed or surface-mount LED high bay for food processing and cleanrooms. Sealed hygienic construction delivers low glare at high lux levels, with multiple installation kits. Fully serviceable without breaking the hygiene seal below.
Hygienic high bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 100W–180W | |
| 15,200 to 27,360lm | L85> 10 Years 24/7 |
| Up to 152lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
100W–180W • 15,200lm - 27,360lm
Ta: -25ºC to +50ºC
Subject to Installation
SOFFITO | SLP
Fully sealed linear LED low/mid bay for food processing, laboratories and cleanrooms. High-density LED arrays provide low glare at high output and uniform appearance at lower power levels. Serviceable from above without breaking the hygiene seal to the production area below.
Hygienic low/mid bay • Food processing • Laboratories • Cleanrooms • Recessed or surface mount • Fully sealed • Low glare • Serviceable from above without breaking the hygiene seal
| 40W–150W | |
| 6,000lm to 22,500lm | L85> 10 Years 24/7 |
| Up to 150lm/W @CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | |
| Subject to installation |
40W–150W • 6,000lm - 22,500lm
Ta: -25ºC to +50ºC
Subject to Installation
PROLINE | TPX
Food-grade linear low bay developed for aggressive cleaning and chemical environments in food processing and industrial applications, without steam or excessive humidity. High resistance to sanitisers and cleaning chemicals • IP69K protection for high-pressure hot-water wash-down • Vibration resistant • Seismic-safe quick-release mounting.
Where chemical resistance is not required refer to Proline PCX
Food-grade low bay • Aggressive chemicals & sanitisers • IP69K hot-water wash-down • Vibration resistant • Quick-release suspension, surface or machine mounting
| 10W–150W | |
| 1,650lm to 24,750lm | L85> 10 Years 24/7 |
| Up to 165lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +50ºC |
| Power Limited by Size/Ambient | Special Conditions Apply |
10W–150W • 1,650lm - 24,750lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +50ºC
(special conditions apply)
PROLINE | PV3
Hygienic LED luminaire developed for Steam CIP, high-humidity hydrolytic conditions, aggressive chemicals and extreme ambient environments. Designed for demanding food processing and industrial applications, with IP69K protection for high-pressure hot-water wash-down and four individually configurable DIP LED arrays for 360° or targeted illumination.
For chemical resistance without steam or excessive humidity Proline TPX
Hygienic Steam CIP • Aggressive chemicals • High-temperature food processing • IP69K hot-water wash-down • IK10 • Remote drivers • 360° or targeted illumination
| 20W–60W | |
| 2,760lm to 8,200lm | L85> 10 Years 24/7 |
| Up to 138lm/W @ CRI85 | L80 (B0) > 102,000Hrs |
| -25ºC to +50ºC | -40ºC to +70ºC |
| 500+ Steam CIP Cycles | Special Conditions Apply |
20W–60W • 2,760lm - 8,200lm
Ta: -25ºC to +50ºC
Ta: -40ºC to +70ºC
(special conditions apply)
