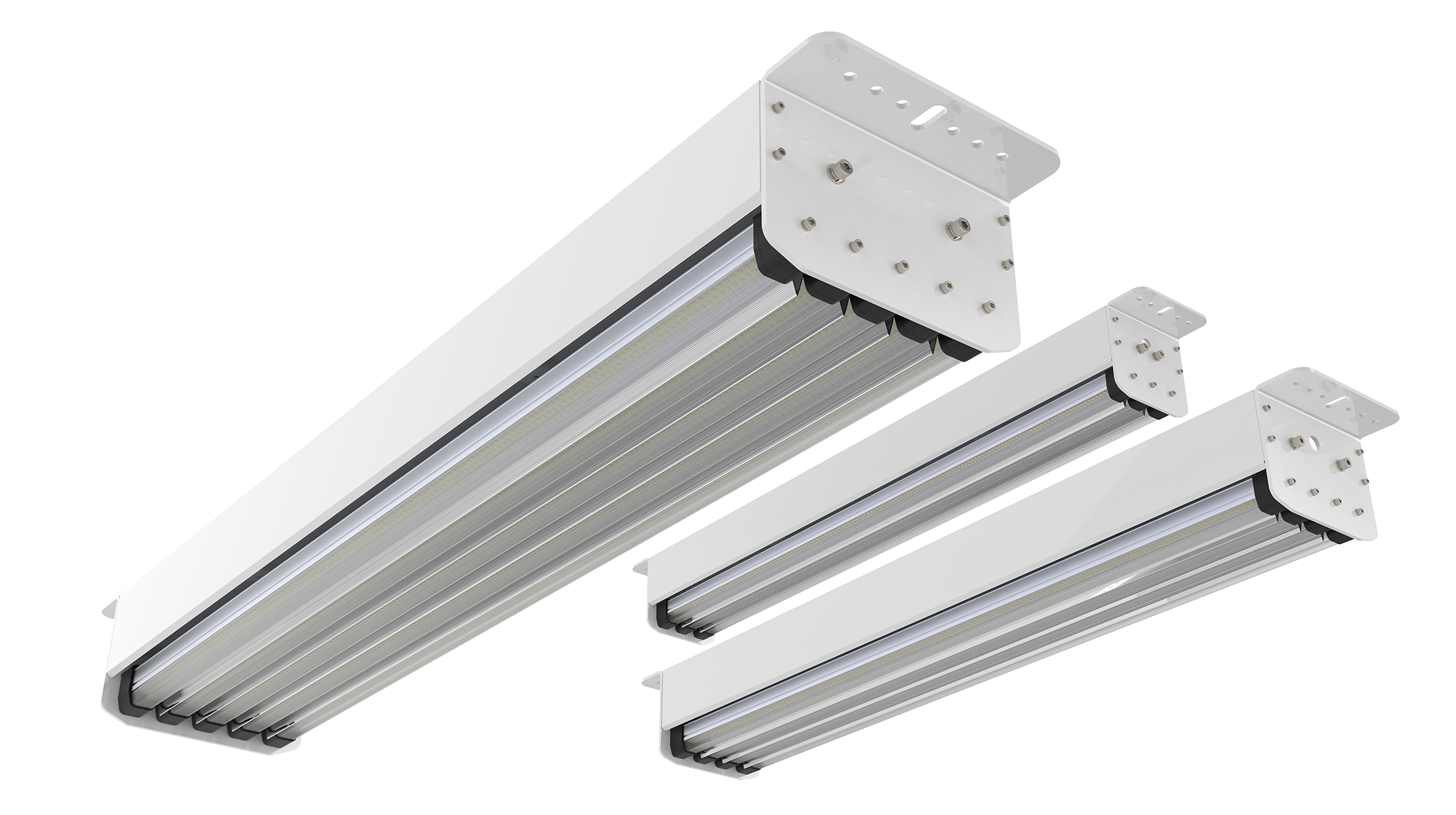

POWERBAY | CMS
PowerBay CMS is ideal for loading bays, factories and warehouses.
With the driver on board, CMS suits surface, beam or purlin mounting. Its low profile helps prevent forklift strikes, while optional side flashings deter bird roosting in loading bays and reduce the accumulation of dust, ice and other contaminants in storage and cold-store applications.
Power Options and Lighting Controls
PowerBay CMS is a scalable solution available in three standard power options that integrate seamlessly with a range of lighting controls.
| Max Ambient | ≤ 50ºC | |
|---|---|---|
| 1200 mm | 44 W/Bar | |
| CMS3-1200 | 132 W | 21,648 lm |
| CMS4-1200 | 176 W | 28,864 lm |
| CMS5-1200 | 220 W | 36,080 lm |
| 1500 mm | 54 W/Bar | |
| CMS3-1500 | 162 W | 26,568 lm |
| CMS4-1500 | 216 W | 35,424 lm |
| CMS5-1500 | 270 W | 44,280 lm |
Periodic Peak +70ºC - Derating Applies to Driver > Ta 50ºC
Auto dimming may occur to protect the system at extreme ambient temperatures.
L85 > 10 Years 24/7
Isollux XE dual-die LED chipsets are conservatively operated to optimise service life and deliver L80 (B0) >102,000 h across the published ambient range specified for each model.
Explore how we engineer and validate LED performance
Built for Harsh Conditions
Engineered for harsh industrial environments, PowerBay CMS combines IP66 ingress protection with IK10 impact resistance and food-grade polycarbonate lenses.
Broad range of ambient temperatures
Operates across a wide range of ambient temperatures from -25°C to +50°C.
Class Leading 10-Year Warranty
PowerBay CMS is built for endurance, delivering steady lux output with minimal lumen depreciation and backed by a comprehensive 10-year warranty.
Adaptive Optics
PowerBay CMS’s adaptive optics and rotational arrays allow each fixture to be reconfigured as layouts, racking, or task requirements change, ensuring optimal performance is maintained as site needs evolve over the fitting’s extended service life.
Emergency Power Options
Choose from a 10–30 W auxiliary driver to reduce UPS load, or a DALI-controlled UPS system assigning selected luminaires to an emergency scene. UPS and DALI emergency systems require appropriately protected power and control circuits.
Serviceable Solution
Typical driver replacement is at 100,000 hours optimises service life to match the LED’s effective L80 lifetime, with spare parts available for repairs if accidental damage occurs.
Contact Us for the Full Data Pack
PowerBay CMS3 | 3 PowerBars
Maximum Output: 26,568 lm
Maximum output: 26,568 lm
Nominal 164 lm/W | 5000 K | CRI 85
Lower-power options available.
Lumen Maintenance:
LM80/TM21 @ Ta50ºC
L85 > 10 Years 24/7
Lens Options:
Fixed lenses: AC 45º x 88º | AS 33º x 94º
Adaptive lenses: 1 x Fixed, 2 x Adjustable
2 x Reflectors max with adaptive lenses
CCT | CRI:
3000 K, 4000 K, 5,000 K, 6000 K, 7000 K
CR I85 | CR I95
PowerBay CMS4 | 4 PowerBars
Maximum Output: 35,424 lm
Maximum output: 26,568 lm
Nominal 164 lm/W | 5000 K | CRI 85
Lower-power options available.
Lumen Maintenance:
LM80/TM21 @ Ta50ºC
L85 > 10 Years 24/7
Lens Options:
Fixed lenses: AC 45º x 88º | AS 33º x 94º
Adaptive lenses: 1 x Fixed, 2 x Adjustable
2 x Reflectors max with adaptive lenses
CCT | CRI:
3000 K, 4000 K, 5,000 K, 6000 K, 7000 K
CR I85 | CR I95
PowerBay CMS5 | 5 PowerBars
Maximum Output: 44,280 lm
Maximum output: 26,568 lm
Nominal 164 lm/W | 5000 K | CRI 85
Lower-power options available.
Lumen Maintenance:
LM80/TM21 @ Ta50ºC
L85 > 10 Years 24/7
Lens Options:
Fixed lenses: AC 45º x 88º | AS 33º x 94º
Adaptive lenses: 1 x Fixed, 2 x Adjustable
2 x Reflectors max with adaptive lenses
CCT | CRI:
3000 K, 4000 K, 5,000 K, 6000 K, 7000 K
CR I85 | CR I95
