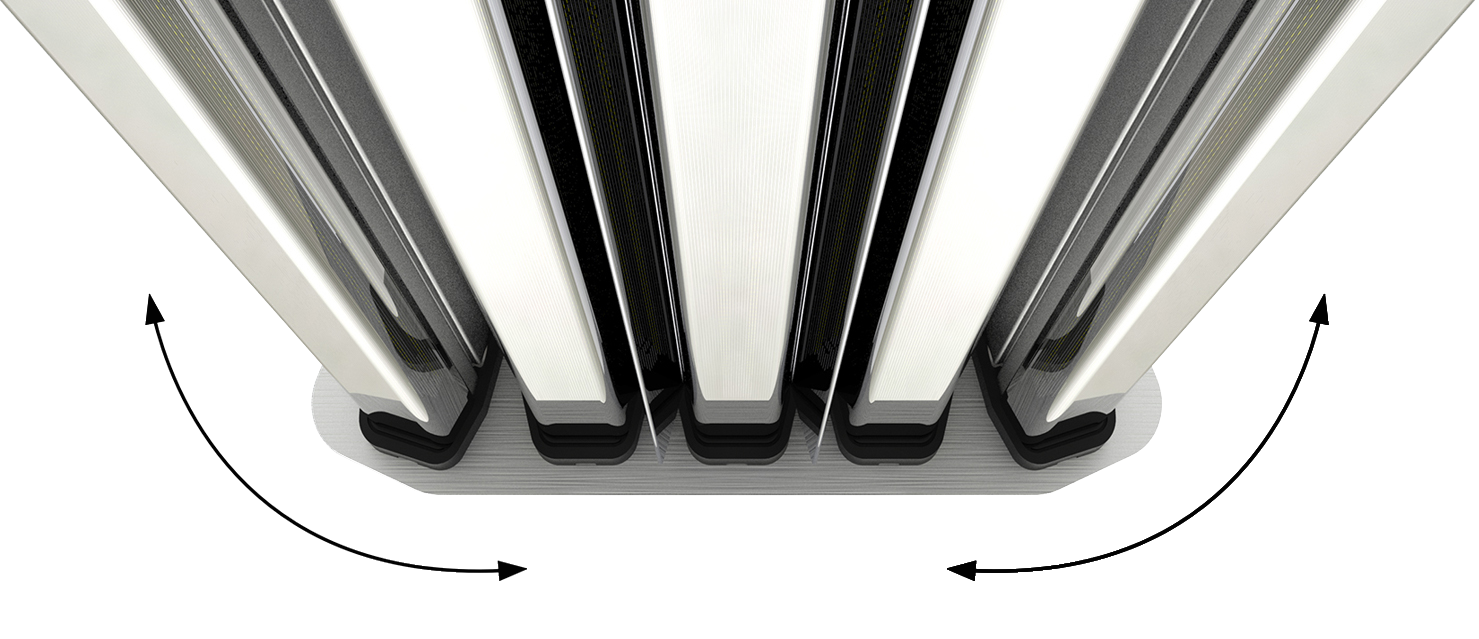

Rotational LED arrays with optional snap-in reflectors allow each fixture to be configured from narrow to wide beam angles using a standard lens package. This modular optical system enables on-site adjustment, placing light precisely where it is needed.
If aisle layouts change, are removed, or added to suit a new use, the optics can be reconfigured rather than replaced. This flexibility is essential given the long service life of the fixtures, allowing lighting performance to adapt as operational requirements evolve over time.

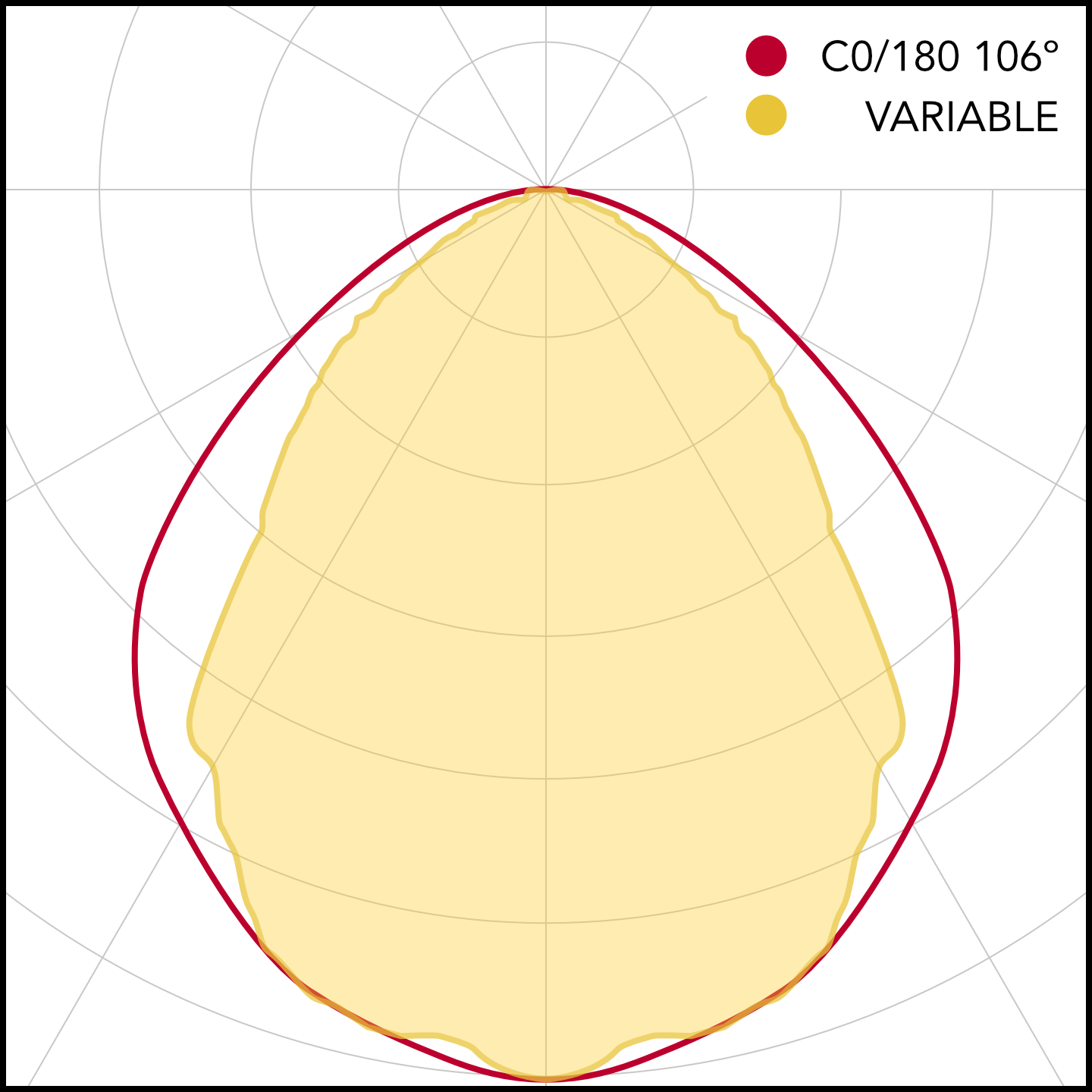

Standard Aisle or High Mount
Reflectors to all arrays, no rotation, narrowing the beam angle to push light down towards the floor.

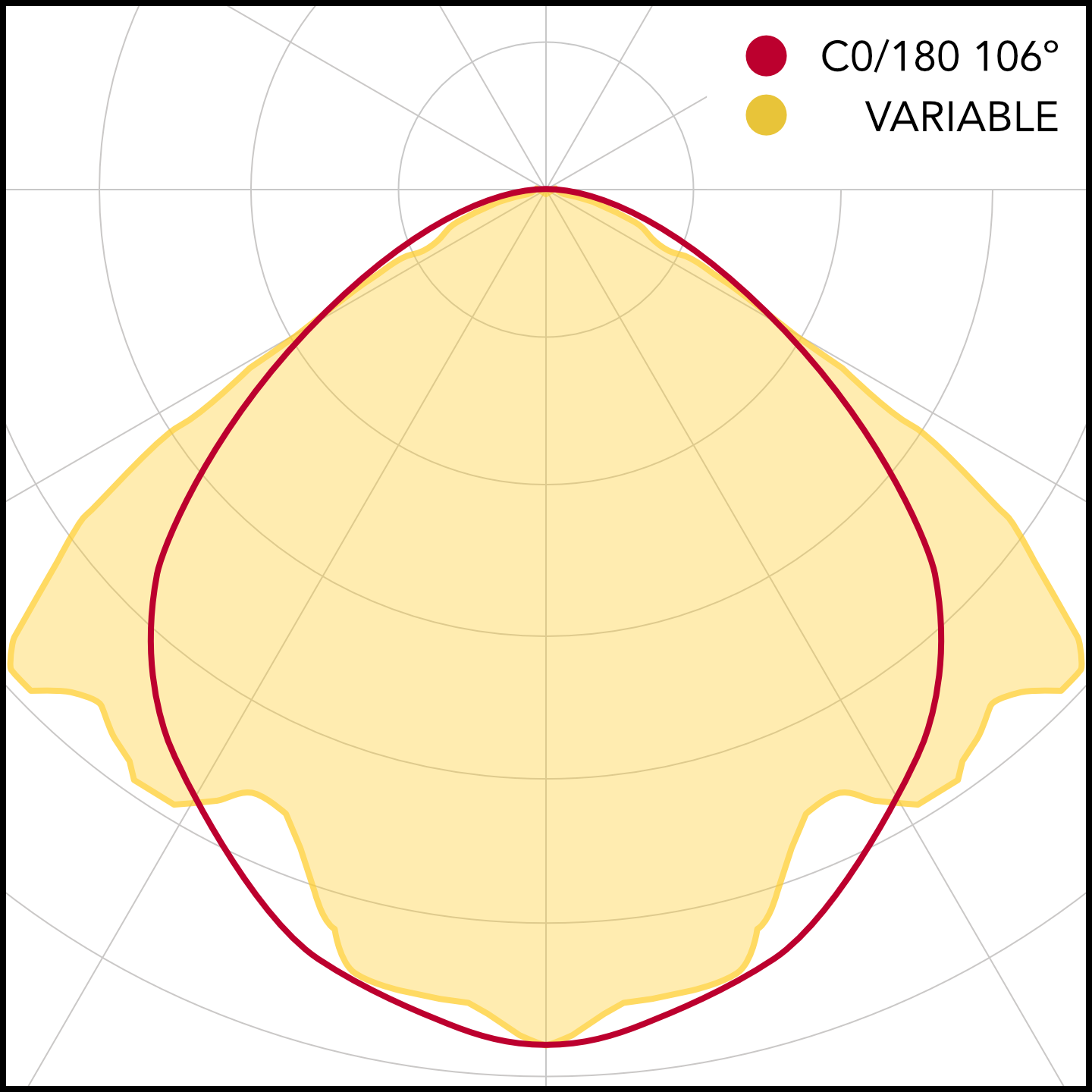

Open Area General Application
Reflectors to the centre with 5º–25º rotation to the outer bars.

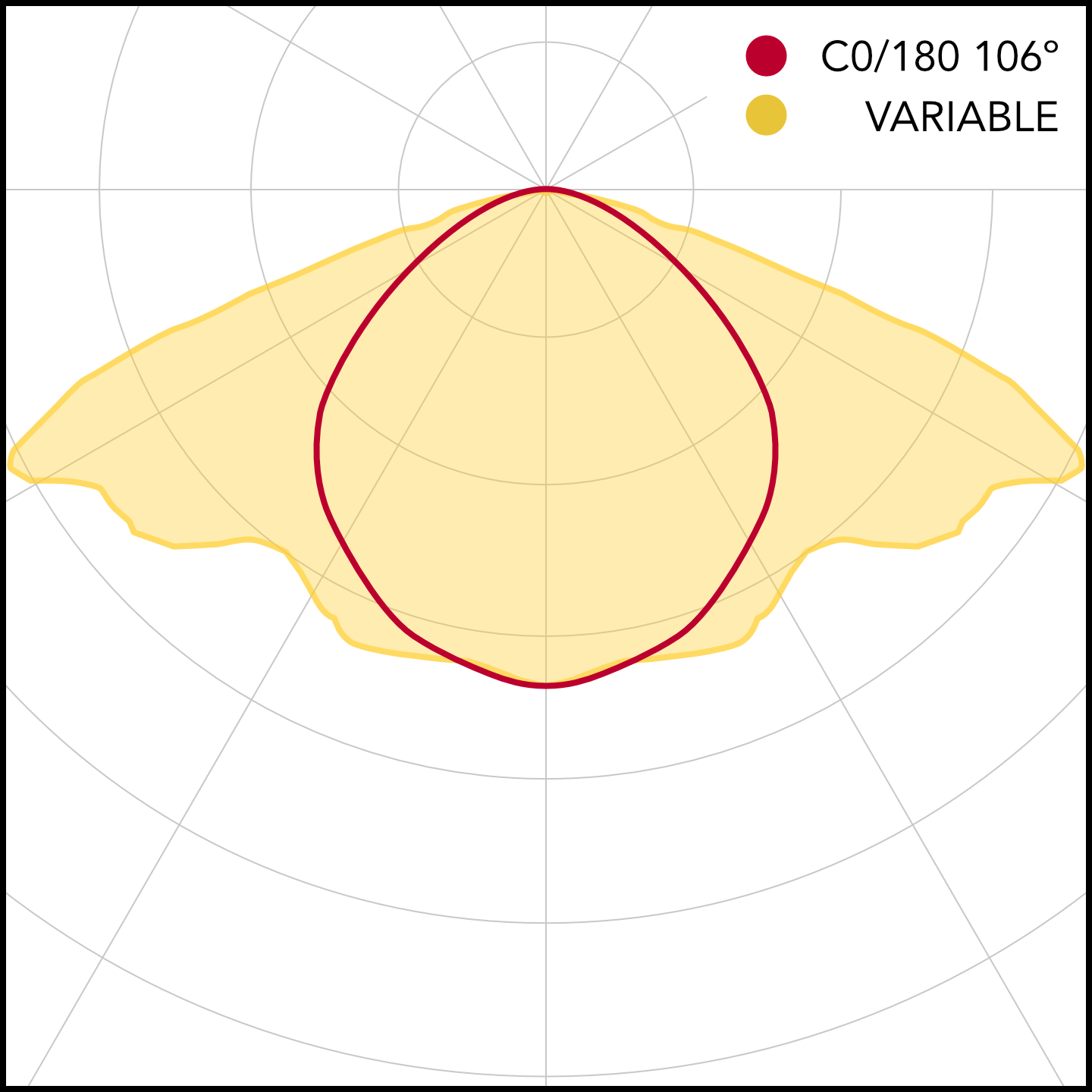

Wide Angle Low Mount Height
Outer arrays rotated 25º pushes light out to the side, reducing or increasing the angle to suit requirements.
